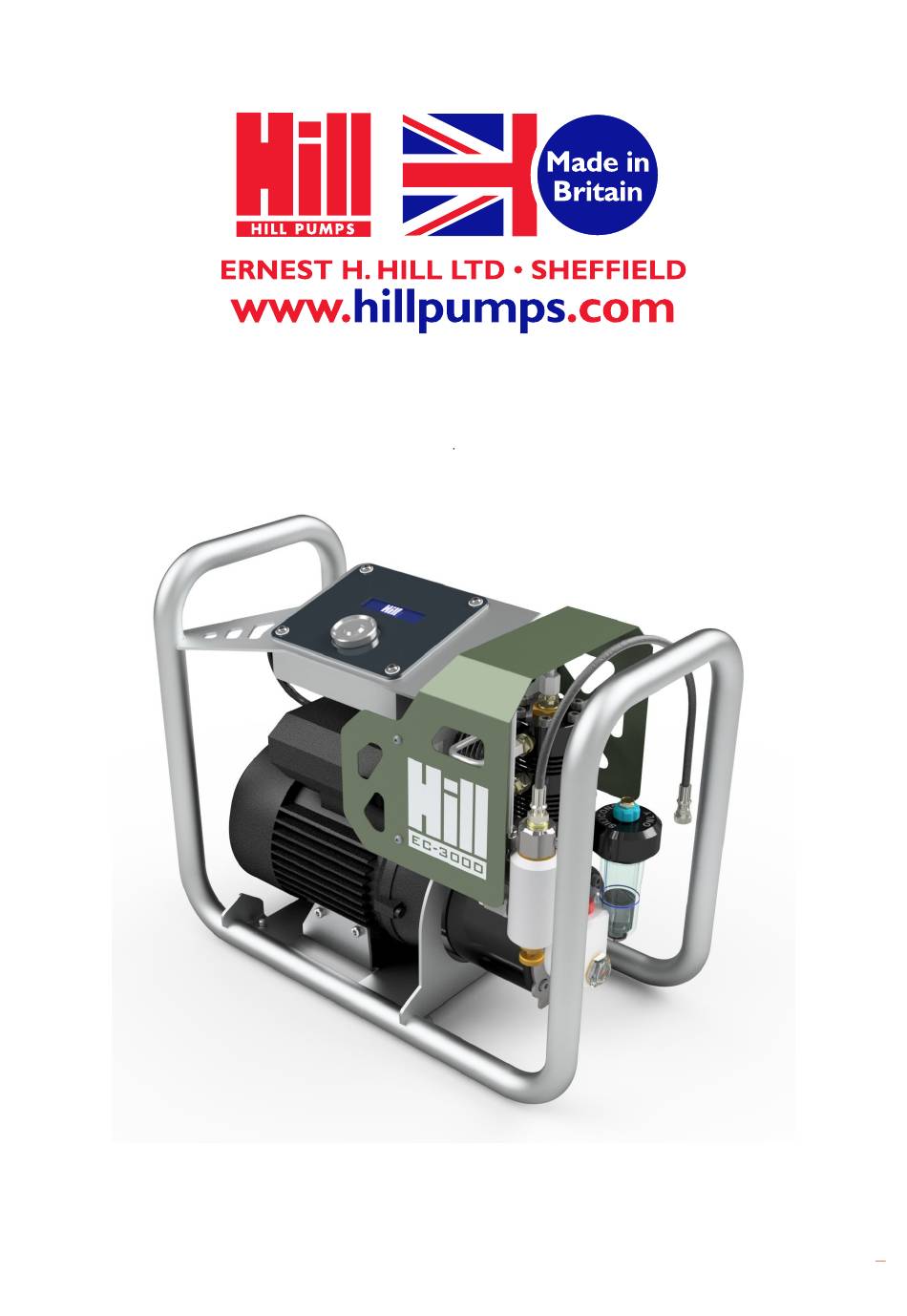

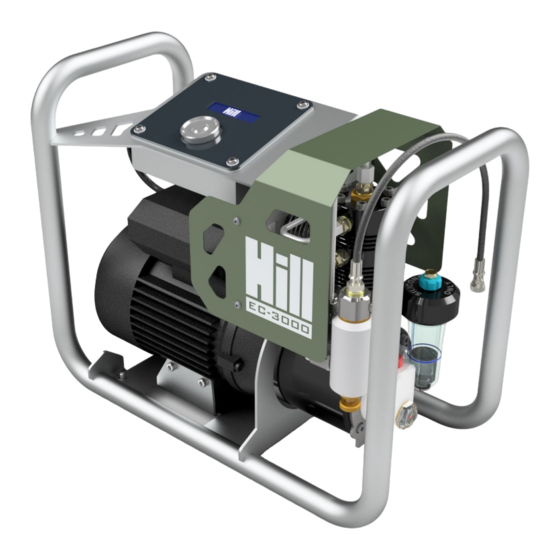

- Page 1 USER INSTRUCTION MANUAL EC3000 PORTABLE AIR COMPRESSOR Rev 4.06 Rev 4.04 May 2020 April 2020...
-
Page 2: Table Of Contents
Contents Parts Included Set Up Operating Instructions Troubleshooting Closedown Storage Maintenance IMPORTANT THIS PRODUCT IS DESIGNED TO FILL PRE-CHARGED PCP AIR GUNS AND PAINTBALL GUNS DIRECTLY. IT CAN ALSO BE USED TO TOP UP SMALL BOTTLES. LARGE CYLINDERS/TANKS SHOULD ONLY BE FILLED BY COMPETENT/QUALIFIED PEOPLE. NOT FOLLOWING THE INSTRUCTIONS OR MISUSE OF THE COMPRESSOR WILL VOID YOUR WARRANTY AND MAY RESULT IN DEATH OR INJURY DANGER OF EXPLOSION... -
Page 3: Parts Included
Parts Included 1x EC-3000 Compressor 1x Power Cable 1x High Pressure Filling Hose 1/8” and male Quick Release Coupling 1x Hill A73 Crank Oil 1x Hill A72 Silicone Oil... -
Page 4: Set Up
Set Up CAUTION - please read and understand the following instructions before use. CAUTION - ONCE YOU HAVE CORRECTLY FILLED THE COMPRESSOR WITH LUBRICANTS, THE COMPRESSOR MUST BE KEPT UPRIGHT AND LEVEL AT ALL TIMES. ENSURE THE COMPRESSOR IS USED ON A NON-SLIP FLOOR, PREFERABLE SAT ON ANTI-SLIP MATTING. -
Page 5: Operating Instructions
Remove blue cap - screw anticlockwise Slowly squeeze the Hill A72 Silicone Oil through the exposed hole until the oil reaches the limit indicated on the reservoir by the blue line DO NOT MIX CRANK OIL AND SILICONE OIL Replace blue cap until finger tight 3. - Page 6 Switch compressor on The screen will briefly show the Hill logo, the software version and the accumulated running hours..before requesting confirmation that the lubricant levels have been checked and are correct. Press the rotary control knob to confirm the lube check.
- Page 7 To set the pressure, rotate the control knob clockwise to increase the fill pressure required. When you reach the desired pressure, press the control knob to confirm. The maximum pressure that can be set is 300BAR (4350PSI/30MPa). DO NOT SET THE COMPRESSOR ABOVE THE MANUFACTURER’S RECOMMENDED PRESSURE FOR THE BOTTLE YOU ARE FILLING.
- Page 8 EC3000 using the bleed screw at the bottom of the silver moisture trap. If your rifle or bottle has a non return valve you can just bleed the EC3000 as above. If in a very humid part of the world, you will need to bleed the moisture trap more often.
-
Page 9: Troubleshooting
Unscrew sight glass to change Crank Oil (make sure you have a suitable container underneath) and drain. Regularly check that the Silicone lubrication is free from dirt and debris ERNEST H. HILL LIMITED LONGACRE WAY - HOLBROOK - SHEFFIELD S20 3FS - ENGLAND Telephone; +44 (0) 114 248 4882 www.hillpumps.com...
