Original Installation instructions with operating instructions and technical documentation.
In accordance with:
•
Pressure Equipment Directive 2014/68/EC
•
Machinery Directive 2006/42/EC
•
Standard EN 161
•
Gas Appliances Regulation 2016/426/EC (GAR)

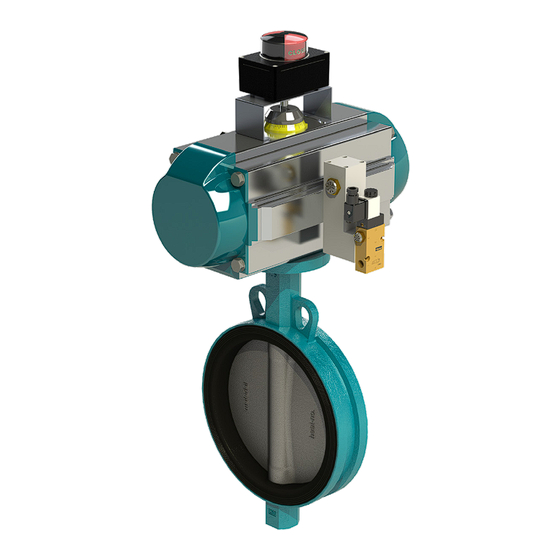

plus - Operation Installation and Maintenance Manual
®
1. Introduction
2. Intended Use
3. Configuration
4. Safety information
5. Transport and storage
6. Installation
7. Functional tests
8. Operation and maintenance
9. Troubleshooting
10. Further information
11. Declaration of incorporation
1/14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for InterApp DESPONIA
- Page 1 DESPONIA , DESPONIA plus - Operation Installation and Maintenance Manual ® ® Original Installation instructions with operating instructions and technical documentation. In accordance with: • Pressure Equipment Directive 2014/68/EC • Machinery Directive 2006/42/EC • Standard EN 161 • Gas Appliances Regulation 2016/426/EC (GAR) 1.
-
Page 2: Intended Use
In the valve labels (example provided on page 5), PS and TS, show the limits of pressure and temperature to according the EN 161 standard and complement the data provided by the technical datasheets. The information is based on neutral liquids only, so please contact InterApp if you need additional information for other liquids. - Page 3 DESPONIA , DESPONIA plus - Operation Installation and Maintenance Manual ® ® 3. Configuration Butterfly valves according EN 161 are always supplied from the factory with a pneumatic actuator and accessories to assure the compliance with the EN 161. Please consult our technical department to obtain the technical datasheet "EN 161 butterfly valves selection"...
-
Page 4: General Safety Information
At operating temperatures that result in hot or cold valve parts (incl. add-ons) and therefore might cause dangers, the installation must take into account protective measures against accidental touching. • That any actuator that is installed on the valve not by InterApp are adjusted to the valve, and all the safety measures have been considered. •... - Page 5 A set of numbers that identify the production order, Reference number therefore establishing the date of manufacture 5. Transport and Storage Special care should be taken when handling, storing and transporting the butterfly valves Desponia and Desponia ® ® plus. Local regulations as well as the necessary safety measure must always be observed.
- Page 6 Consult the corresponding valve datasheet concerning the installation of a valve at the end of the line. Dimension, material and application range of the butterfly valves Desponia ®...
-
Page 7: Installation
DIN PN10/16 or ANSI150 flanges. For the installation of valve between flanges of other standards consult InterApp or its authorized distributors. The valve should not be mounted in pipes, where the actual bore diameter is less than the nominal bore dimension of the valve. - Page 8 ® Flange inside diameter The InterApp butterfly valve has to be mounted between flanges without gasket. It has bidirectional tightness. Consult the corresponding valve datasheet concerning the installation of a valve at the end of the line. It is centred by stay-bolts or by screws. The diameter of the flange should be in accordance with the stated values Dopt, Dmin, Dmax.
- Page 9 DESPONIA , DESPONIA plus - Operation Installation and Maintenance Manual ® ® LUG type DN 50 - 600 Bolt n = number of bolts for one valve Mounting the valve at the end of a line When installing of the valve at the end of a line please note: Fluid Only neutral liquids, temperature 10 - 80°C...
-
Page 10: Functional Tests
The user should include in its maintenance program a chapter for inspecting the valves to check the wear parts and change them if necessary. In the next paragraph the spare parts are identified. Please contact InterApp to obtain the specific codes and additional information for the spare parts. - Page 11 DESPONIA , DESPONIA plus - Operation Installation and Maintenance Manual ® ® 1. Parts of a DESPONIA , DESPONIA plus ® ® Parts list 1 Body 2 Disc 3 Shaft 4 Liner* 5 O-ring* Retaining washer + 2x Screws* *Spare parts 2.
-
Page 12: Troubleshooting
2. If the valve is correctly installed, and the leakage still occurs, disc/liner might be damaged. Contact InterApp for spare parts and further instructions. Other 1. If the valve is damaged, please contact InterApp for further instructions and spare malfunctions parts ordering. - Page 13 The user shall observe the “correct valve destination“ as defined in the “operating manual for butterfly valves“ which can be accessed from our webpage “www.interapp.net” and shall observe all notices contain in this document that may be relevant for the use. Failure to follow these notices and advices, will invalidate this declaration.
- Page 14 According to the manuals for the valves and the actuators. 1.7.4 Fulfilled through the manuals. InterApp Valcom S.A. declares that the following basic requirements according to EN ISO 12100, are applied and fulfilled Scope The risk analysis has been done considering the products a “partly completed machinery”.
