SilverCloud Respiro 300 Pro User Manual

Compressor nebulizer

Advertisement

Available languages

Available languages

Quick Links

Inhalátor készülék
SilverCloud Respiro 300 Pro
kompresszorral
- HASZNÁLATI ÚTMUTATÓ -

Advertisement

loading
Need help?

Need help?

Do you have a question about the Respiro 300 Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for SilverCloud Respiro 300 Pro

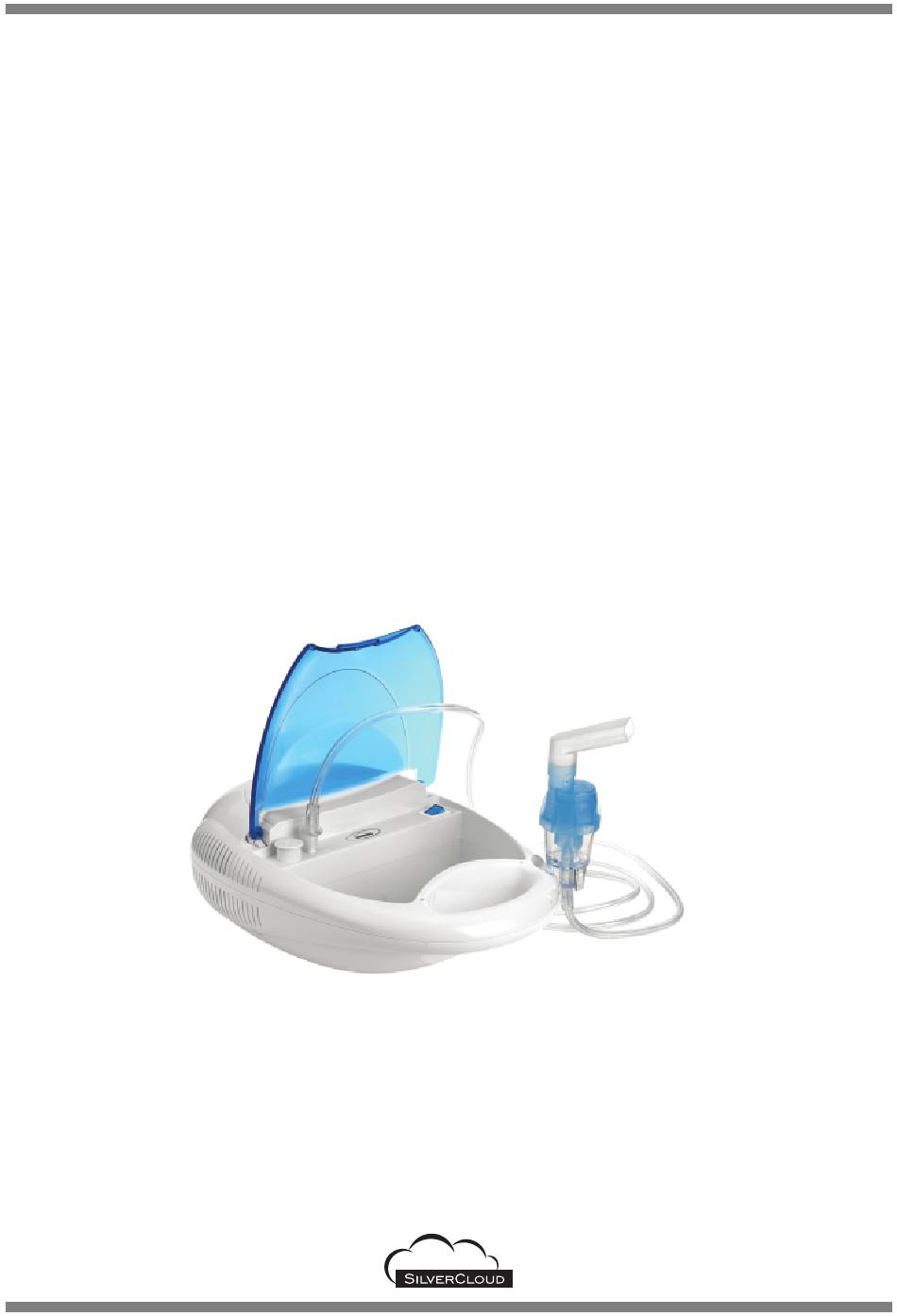

  • Page 1 Inhalátor készülék SilverCloud Respiro 300 Pro kompresszorral - HASZNÁLATI ÚTMUTATÓ -...
  • Page 3: Table Of Contents

    6. Műszaki adatok ... 5 7. Problémák és megoldások ... 6 1.Általános tulajdonságok SilverCloud Respiro 300 Pro egy orvosi készülék ajánlott gyógyszerek inhalációs keresztül való adminisztrálására amit az orvos előírt. Használják helyesen ezt a készüléket, mert egy hosszabb időre egy hatékony megoldás lesz a légzési...
  • Page 4: Termék Leírása

    2. Termék leírása Csomag tartalma: Inhalátor 2 x védőálarc Porlasztási Gőzcső Fúvóka 5 x szűrő készülék csésze 3. Különleges figyelmeztetések Megjegyzés: Mielőtt használnák olvassák el figyelmesen a használati utasítást. Ez az eszköz nem alkalmas inhalációs anesztézia esetben. Ez a készülék nem alkalmas felfüggesztett gyógyszerek vagy nagy viszkozitású...
  • Page 5: Használati Utasítás

    4. Használati utasítás Megjegyzés: Tisztítsák meg gondosan az inhalátor készüléket az első használat előtt. Helyezze a készüléket egy lapos és stabil helyre. Ÿ Győzödjenek meg, hogy ülő helyzetben könnyen hozzá tudnak férni a készülék ellenőrzési gombjaihoz. Nyissa ki a tároló rekesz fedelét és vegye ki az alaktrészeket Ÿ...
  • Page 6: Tisztítása És Karbantartása

    5. Tisztítás és karbantartás Javasoljuk a kompresszor, porlasztó és más alkatrészek megtisztításást meleg vízzel használat után. Ha az Ön orvosa más tisztítás/sterilizálás metódust javasol tartsák be az orvos javaslatait . Szedje szét óvatosan az összes tartózékokat : gázcső, Ÿ porlasztó, arcvédőt, fúvókát. Mosa meg a tartózékokat a nekik ajánlott mosószerekkel.
  • Page 7: Műszaki Adatok

    6. Műszaki adatok: Tápellátás 220 V / 50Hz Fogyasztás 0.7 A Porlasztó kapacitása 6 ml Az inhalátor résznek átlagos 3 µm átmérője Zajszint 58 dBA Porlasztási ráta > 0.33 ml/perc Kompresszor maximális 30 - 36 Psi (210 - 250 Kpa / nyomása 2.1 - 2.5 bar) 8 - 16 Psi (50 - 100 Kpa /...
  • Page 8: Problémák És Megoldások

    Részek átmérője: ~3 um Gyógyszermennyiség: min. 2 ml, max. 6 ml Porlasztói ráta: 0.33 ml/perc Inhalátor 0.33 ml (2ml,1%NaF) Inhalátor ráta: 0.06ml/perc (2ml,1%NaF) Grafikus mérések részátmérő vonatkozoan 7. Problémák és megoldások Készülék nem indul miután elindította a készüléket - Ellenőrizze, hogy a készülék rendesen van csatlakoztatva egy 220V árramforráshoz Áramhiány vagy alacsony áramlás - Adják hozzá...
  • Page 9 Compressor nebulizer SilverCloud Respiro 300 Pro - USER MANUAL -...
  • Page 10 6. Technical specifications ... 5 7. Troubleshooting ... 6 1. Introduction SilverCloud Respiro 300 Pro is a compact medical device designed to efficiently apply a physician prescribed medication to the bronchial lung passages. With proper care and use, it will provide you with many years of reliable treatment .
  • Page 11 2. Product identification What’s in the box? Nebulizer Nebulizer Air tube 2 x mask Mouthpiece 5 x filte 3. Important safeguards Note: Read all instructions carefully before use. Caution: Failure to read and observe all precautions could result in personal injury or equipment damage. This unit is not suitable for use in anaesthetic breathing systems.
  • Page 12 4. Operation instructions Note: Prior to initial operation, the nebulizer should be thoroughly cleaned Place your compressor Nebulizer on a flat and stable surface. Ÿ Be sure that you can easily reach the controls when you are seated. Open the clear cover and remove the inside accessories. Ÿ...
  • Page 13 5. Cleaning the device It is recommended that the nebulizer, mouthpiece and mask are thoroughly cleaned with hot water after each use and cleaned with a mild detergent after the last treatment of the day. If your physician or respiratory therapist specifies a different cleaning procedure, follow their instructions..
  • Page 14 6. Technical specifications: Power 220 V / 50Hz Current 0.7 A Medication capacity 6 ml MMAD* 3 µm Sound level 58 dBA Average nebulization rate > 0.33 ml/minute 30 - 36 Psi (210 - 250 Kpa / Compressor pressure range 2.1 - 2.5 bar) 8 - 16 Psi (50 - 100 Kpa / Operating pressure range...
  • Page 15 Particle Size: ~3 um Appropriate Medication Quantities: min. 2 ml, max. 6 ml Nebulization rate: 0.33 ml/min Aerosol Output: 0.33 ml (2ml,1%NaF) Aerosol Output Rate: 0.06ml/min (2ml,1%NaF) Measurements for particle size curve 7. Troubleshooting Nothing happens when the power switch is pressed - Check that the plug is inserted in an electrical outlet No nebulisation or low nebulisation,when the power is on - Add the correct amount of medication to the medication tank...
  • Page 16 0120...
