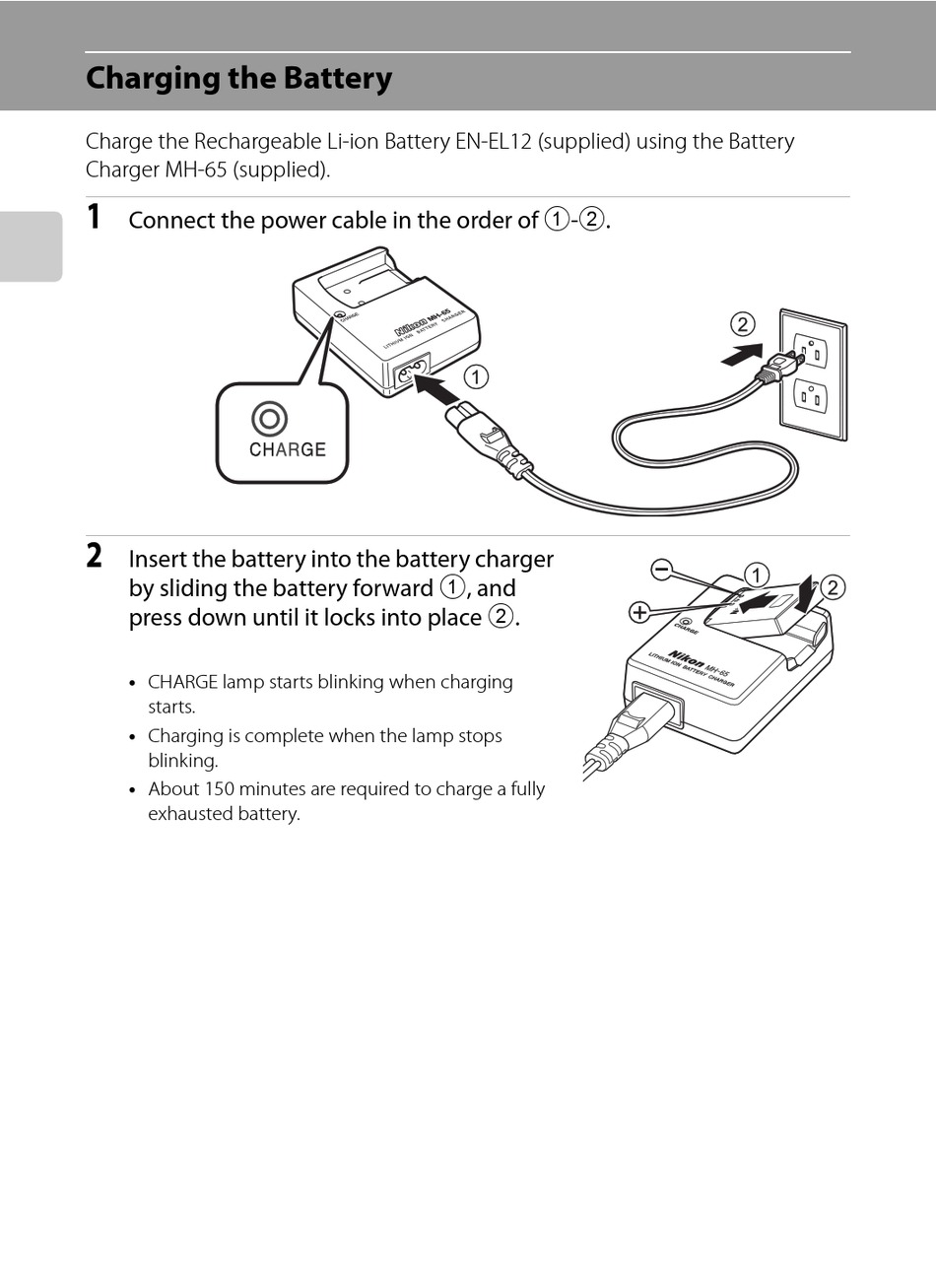

Charging the Battery
Charge the Rechargeable Li-ion Battery EN-EL12 (supplied) using the Battery
Charger MH-65 (supplied).
1
Connect the power cable in the order of 1-2.
2
Insert the battery into the battery charger
by sliding the battery forward 1, and
press down until it locks into place 2.
• CHARGE lamp starts blinking when charging
starts.
• Charging is complete when the lamp stops
blinking.
• About 150 minutes are required to charge a fully
exhausted battery.
Advertisement
Table of Contents
Summary of Contents for Elfa EN-EL12
- Page 1 Charging the Battery Charge the Rechargeable Li-ion Battery EN-EL12 (supplied) using the Battery Charger MH-65 (supplied). Connect the power cable in the order of 1-2. Insert the battery into the battery charger by sliding the battery forward 1, and press down until it locks into place 2.
- Page 2 Technical Notes Optional Accessories Rechargeable battery Rechargeable Li-ion Battery EN-EL12 Battery charger Battery Charger MH-65 AC Adapter EH-62F (connect as shown) AC adapter Insert the AC adapter cord into the groove deeply in the battery chamber before closing the battery-chamber/memory card slot cover.
- Page 3 AC 100-240 V, 50/60 Hz, 0.08-0.05 A Rated capacity 8–12 VA Rated output DC 4.2 V, 0.7 A Applicable batteries Nikon Rechargeable Li-ion Battery EN-EL12 Charging time Approx. 150 minutes when no charge remains Operating temperature 0 to 40 °C (32 to 104 °F) Dimensions Approx.
