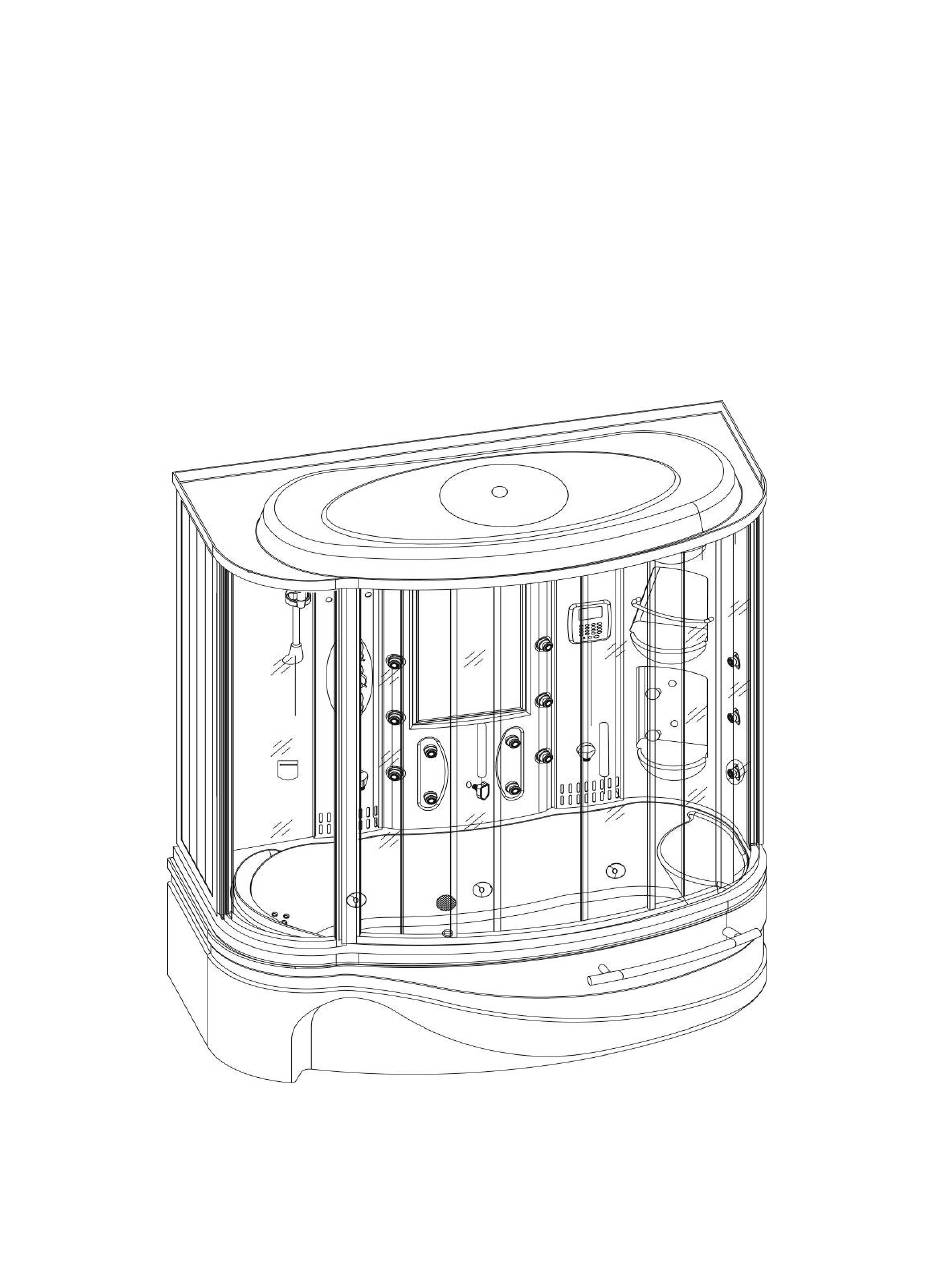

- Page 1 Mazatlan INSTALLATION MANUAL...
- Page 2 5. Aquapeutics recommends that when any of our products are installed that adequate space or access be made so that the working components of your spa system may be maintained as needed.
- Page 3 Installation instructions for your optional heater are in the installation section of this manual. 1.2Package information 1. Upon the arrival of your Aquapeutics spa take care to make a thorough inspection for any visible damage to the shipping container. Visible damage should be reported toyour carrier immediately.
- Page 4 Page 3...
- Page 5 Drain pipe can be offset as much as 6 inches from tub drain. A: Jack for the phone B: electrical mains C: Hot water feed D: Cold water feed E. Drain pipe should be at least 2 inches in diameter.
-
Page 6: Tools Needed
Tools needed* Wooden hammer Wrench Level Tape Screwdriver Pencil Supplied hardware Elbow w/washer 1/4 x 1 1/4 inch bolt Hardware bag 1/4 x 1 inch bolt 1/4 x 5/8 bolt Tool 1/4 inch nuts with washers Larger washer 3/16 x 5/8 inch self taping screw *An electric drill with a 1/16 drill bit would make for an easier installation... - Page 7 MODEL:Mazatlan Installation instructions: A Water supply: Hot and cold water supply lines are half inch NPT pipe thread Power supply : A 220Volt , 1 3 amp service with GFI is necessary to energize the steam room-spa and a 110 volt 11.8 amp circuit with GFI is needed for the whirlpool bath. Please note: If you have purchased aTub with the additional heater option it is very important to understand that the electrical requirements for your unit have changed.
- Page 8 There are four gaskets wire tied as shown in the Step 2 photo to the far left. Remove them by clipping the wire tie. They are inserted into the top and bottom of both wide vertical aluminum channels as shown by the arrows in the photos to the near left.
- Page 9 Step 6 3/16 x5/8 Screws Drill 1/16” pilot holes first Lift the fixed glass frame onto the bathtub as shown; slide it into the aluminum extrusion of the left side panel. When it has bottomed out into the vertical extrusion and the bottom of the glass panel is lying flat on the tub-lip surface as shown, attach with two 3/16 x 5/8 inch self-tapping screws from the side as shown.
- Page 10 Step 6 Step 8 ift the middle glass section ( with the sliding glass door section)(two people are recommended) onto the bathtub as shown in the photo, slip it into the aluminum extrusions on the left and right sides, making sure they bottom out into the vertical extrusions.
- Page 11 110 and 220 volt Electrical Please note: If you have purchased a Tub with the additional heater option it is very important to understand that the electrical requirements for your unit have changed. The heater requires a second separate electrical circuit that can supply 13 amps at 110 volts in addition to what your tub had originally needed.
- Page 12 Steam generator plumbing Connect all hoses to and from the Steam generator. Electrical break-out The appropriate outlets/ inlets are labeled in the diagram and are visible in the photo. The Steam generator drain hose is Black insulated pushed onto the fitting steam hose (straight elbow)
- Page 13 Step 11 Step 12 Hole for steam hose The silver braided hose goes to the steam generator The red striped braided hose goes to the hot water supply Long gray hose that goes to The blue striped braided hose goes to the the rainfall shower.
- Page 14 Step 14 Please refer to the labels (with icons) on the wires of the various low voltage components. They include Telephone, CD, loudspeaker, LED lights, fan, control panel, and the ozonizer O3 shower self cleaner, Connect the wires sharing the same labels and/or properly mated connector pairs. Step 15 The coupling at the end of the sprayer hose should be screwed in to the nozzle located in the high left-hand corner...
- Page 15 Doing so will void your warrantee. There are no user serviceable parts inside. DO NOT repair or replace these units on your own. If you do experience any problems, please contact Aquapeutics’ Toll Free Customer Service line 1 (800) 290-6812 for after-sale service.
