ENDURA SERIES
MANUAL
VERSION 1
Aquabotix Technology Corporation. All rights reserved. May 2016
Trademarks used in this guide, Aquabotix and Endura, are trademarks of
Aquabotix Technology Corporation. Other names mentioned in this guide may
be trademarks or registered trademarks of their respective owners.
1
Advertisement
Table of Contents
Summary of Contents for Aquabotix Technology Corporation ENDURA Series
- Page 1 VERSION 1 Aquabotix Technology Corporation. All rights reserved. May 2016 Trademarks used in this guide, Aquabotix and Endura, are trademarks of Aquabotix Technology Corporation. Other names mentioned in this guide may be trademarks or registered trademarks of their respective owners.
-
Page 2: Table Of Contents
TABLE OF CONTENTS LEGAL DISCLAIMER CHAPTER 1 – Vehicle Tech Specs Topside Box How to Charge the Vehicle Before Using the Endura Setting Up the Endura Adjusting Buoyancy CHAPTER 2 – Software Applications App for iPad App for PC/MAC CHAPTER 3 – Maintenance CHAPTER 4 –... -
Page 3: Legal Disclaimer
LEGAL DISCLAIMER The purpose of this manual is to provide Endura users with a clear understanding of operating procedures. If further information is needed, contact Aquabotix at support@aquabotix.com or 508.676.1000. Important Safety Instructions Assemble and use Endura only as instructed by this manual. Keep this manual in a safe place for future reference. - Page 4 LEGAL DISCLAIMER Secure all cables on board to prevent tripping hazards. E nsure watertight connector cable is properly secured to the topside box before use. Be careful of propellers when in use. Do not stick fingers, etc. in or near the propellers.

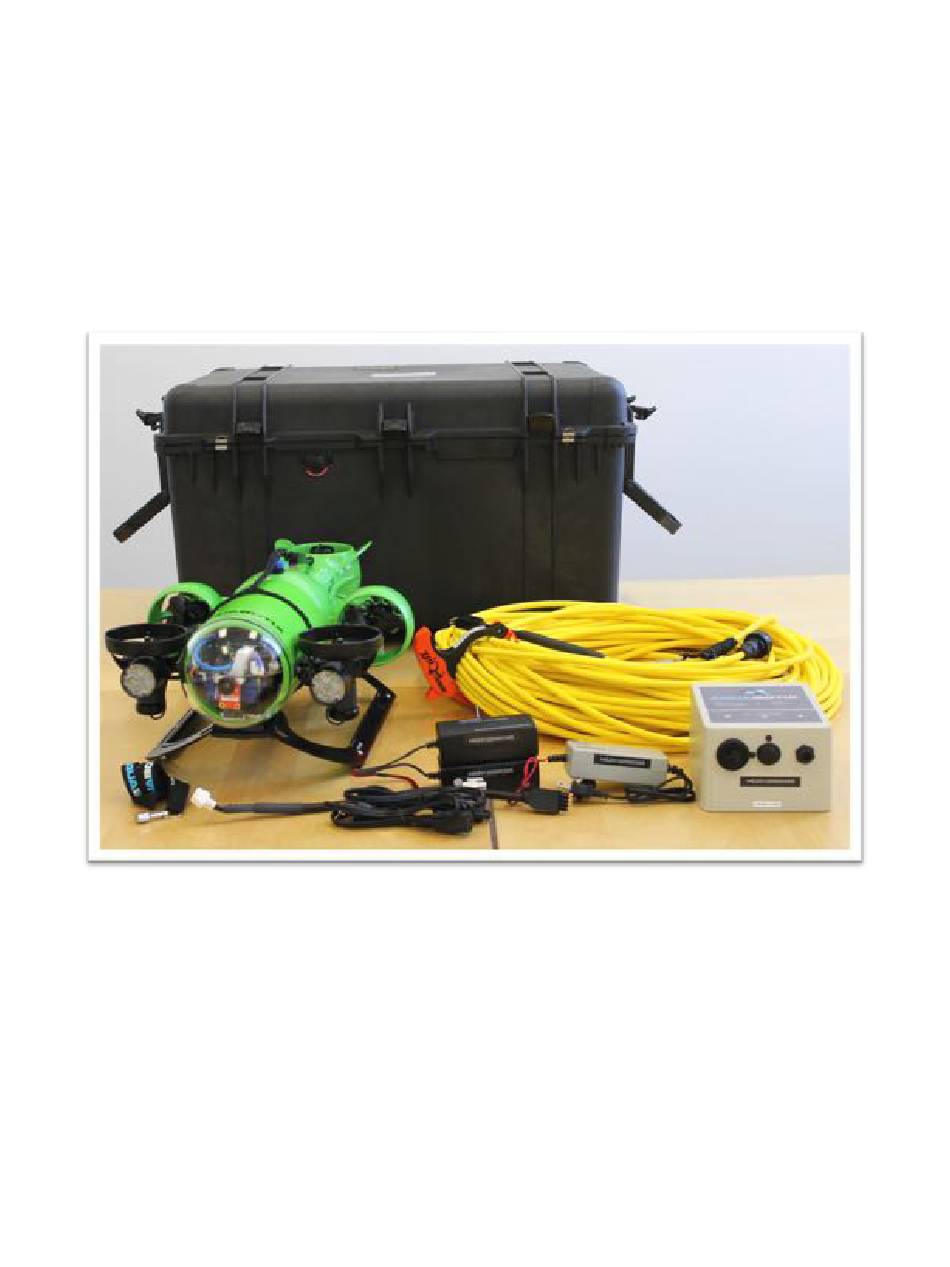

- Page 5 CHAPTER 1 - Vehicle The Endura is an underwater remotely operated vehicle (ROV) that can record live video and capture photos in HD. Using our innovative iPad or laptop applications, you fly the Endura through the water viewing the live video feed as if you were under the water yourself.
-
Page 6: Chapter 1 - Vehicle
VEHICLE TECHNICAL SPECIFICATIONS Endura Technical Specifications Visit the Aquabotix website to download vehicle specifications: http://www.aquabotix.com/professional-rovs---endura.html... -
Page 7: Topside Box
VEHICLE Topside Box The topside box produces the Wi-Fi signal that connects to a user supplied iPad or PC/Mac. It is also to connect an Ethernet cable to a laptop for more reliable network connection. The topside box is water resistant but special care should be taken to keep it safely out of the water. -
Page 8: How To Charge The Vehicle
VEHICLE Wall plug Charger How to Charge the Vehicle 1. The vehicle needs to be charged fully before every use. Connect the two wall plug wires into the charger. Then connect the chargers to a wall plug. Charger cable 2. Connect the charger wires into the connector of the charger cable as shown at right. -
Page 9: Before Using The Endura
VEHICLE BEFORE USING THE ENDURA Important: Before operating the Endura, always inspect the dome for any cracks/damages that may have occurred during transport, storage or use. If you find any sign of damage, contact Aquabotix customer service immediately and do not submerge your vehicle in water. Call 508.676.1000 or email support@aquabotix.com Before using the Endura for the first time, Aquabotix recommends driving the vehicle in a controlled environment such as a pool or small tank for at least 3... -
Page 10: Setting Up The Endura
VEHICLE SETTING UP THE ENDURA 1. Ensure your vehicle is not connected to the topside box or charger. Inspect and Clean SubConn connector. The SubConn connector needs to be treated with proper care – please follow the instructions from the manufacturer, which are included in Appendix A at the end of this manual. - Page 11 VEHICLE 5. Connect the tether to the topside box. After the connector is inserted, twist the ring around the connector until tightened. 6. Turn the topside box power on using the middle switch. 7. The Endura is now fully powered on and ready for connection to a laptop or iPad.
-
Page 12: Adjusting Buoyancy
VEHICLE ADJUSTING BUOYANCY 1. Loosen the back bolt on the skid using the 3/32 Allen wrench and 11/32 open end wrench. 2. Tilt the bracket up. 3. Add the extra weights for salt water operation. 4. Move the bracket back in line with skid. Insert bolt and tighten. -
Page 13: Chapter 2 - Software Applications
CHAPTER 2 – SOFTWARE APPLICATIONS The Endura Applications are used to control the movements and functions of your vehicle. Please take the time to carefully read through the manual before driving your vehicle. Please note: The iPad application is only compatible with the base vehicle configurations for Endura. -
Page 14: App For Ipad
AQUABOTIX APP FOR iPAD How to Download & Connect Download only required for initial setup. To download our free application, make sure you have access to the internet. Then, follow these steps: 1. Go to our website at: http://www.aquabotix.com/softwaremanuals.html and click downloads for a link to our app or visit the iTunes Store and search for Aquabotix ROV App. - Page 15 AQUABOTIX APP FOR iPAD Please Read Before Using Your HydroView Please Read Before Using Your HydroView Important: Before operating your HydroView, please check the dome for any 8. Return to the home screen and press the Aquabotix application icon. A splash Important: Before operating your HydroView, please check the dome for any cracks/damages that have occurred during shipment.
- Page 16 AQUABOTIX APP FOR iPAD APP CONTROLS Please visit our website for the latest updates on software applications as they are updated regularly. http://www.aquabotix.com/softwaremanuals.html Saving Photos and Videos to Your iPad Make sure that the Endura is powered on. Click on the photo or video tab at the bottom of the application screen.
- Page 17 AQUABOTIX ROV APP FOR PC How to Download & Connect Download only required for initial setup. To download our free application, make sure you have access to the internet. Then, follow these steps: 1. Visit http://www.aquabotix.com/softwaremanuals.html and click on “downloads”. 2.
- Page 18 AQUABOTIX ROV APP FOR PC How to Download & Connect – LAN connection Connecting the Topside Box 1. You will need a cat5e network cable. Connect the cable to the topside box. Setting up your computer 2. Connect the cable to the network connector outlet located on the laptop 3.
-
Page 19: Chapter 3 - Maintenance
CHAPTER 3 - MAINTENANCE Vehicle Propellers Maintenance 1. Before and after water use: Check the left, right and back propellers for debris. Propellers 2. If debris is present, turn off vehicle before cleaning. Before and after water use: Check the left, right and back propellers for any debris caught. -
Page 20: Chapter 4 - Troubleshooting
CHAPTER 4 – Troubleshooting CEO Guarantee At Aquabotix, our customers come first. If you are not completely satisfied with your Aquabotix product or service, please contact me at ceo@aquabotix.com or by calling 508.676.1000. Thank you, President and CEO Durval Tavares Registration To register your Endura, please visit: http://www.aquabotix.com/product-... -
Page 21: Faqs
FAQs What do I do if the vehicle’s battery dies while in the water? If this occurs, pull your vehicle gently to the surface using its cable. What do I do if the Wi-Fi isn’t showing up on the iPad settings? Turn off the topside box and turn back on. - Page 22 FAQs How long does it require to recharge the battery completely? It requires 10 hours. Please note: All vehicles must be fully charged before first use. They are not shipped fully charged. What are the system requirements for my iPad or PC? Windows 8+, iOS 8.0 or later How do I download the application? iPad: Go to the iTunes store and search for Aquabotix ROV or visit our website...
- Page 23 Does the vehicle use lubricants and are they food safe? Aquabotix certifies that it only uses National Sanitation Foundation H-1 food grade lubricants in its products. What is logged in the data recording? All Endura ROVs record video at 24fps, depth, temperature, heading, pitch, roll, lights on/off, thrust levels, ordered heading, ordered thrust, ordered pitch, ordered depth, camera recording on/off, power levels.
-
Page 24: Warranty
Warranty Endura One Year Limited Warranty Certificate Aquabotix warrants that, under normal use and service, the Endura will be free from defects in material and workmanship for one year from the date of purchase, applies only to the original purchaser and may not be transferred. Unless authorized by Aquabotix, any modification, customization, repair, disassembly of the product, abuse, exposure to contamination, excessive electric or magnetic force will void this warranty. -
Page 25: Appendix A - Subconn Connector
Appedix A – SubConn Connector SubConn hand ling instructions ® Follow these instructions carefully to ensure correct use of your ® SubConn connectors. Handling ■ Always apply grease before mating (see next page) ■ Disconnect by pulling straight, not at an angle ■... - Page 26 Appedix A – SubConn Connector Greasing and mating above water (dry mate) ■ Connectors must be greased with Molykote 44 Medium before every mating ■ A layer of grease corresponding to minimum 1/10 of socket depth should be applied to the female connector ■...
- Page 27 Appedix A – SubConn Connector Greasing and mating under water (wet mate) ■ Connectors must be greased with Molykote 44 Medium before every mating ■ A layer of grease corresponding to approximately 1/3 of socket depth should be applied to the female connector ■...
