Monnit PoE X User Manual

Open/close sensor
Hide thumbs Also See for PoE X:
Table of Contents

Advertisement

Quick Links

Download this manual
PoE•X Open / Close Sensor
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PoE X and is the answer not in the manual?

Questions and answers

Related Manuals for Monnit PoE X

Summary of Contents for Monnit PoE X

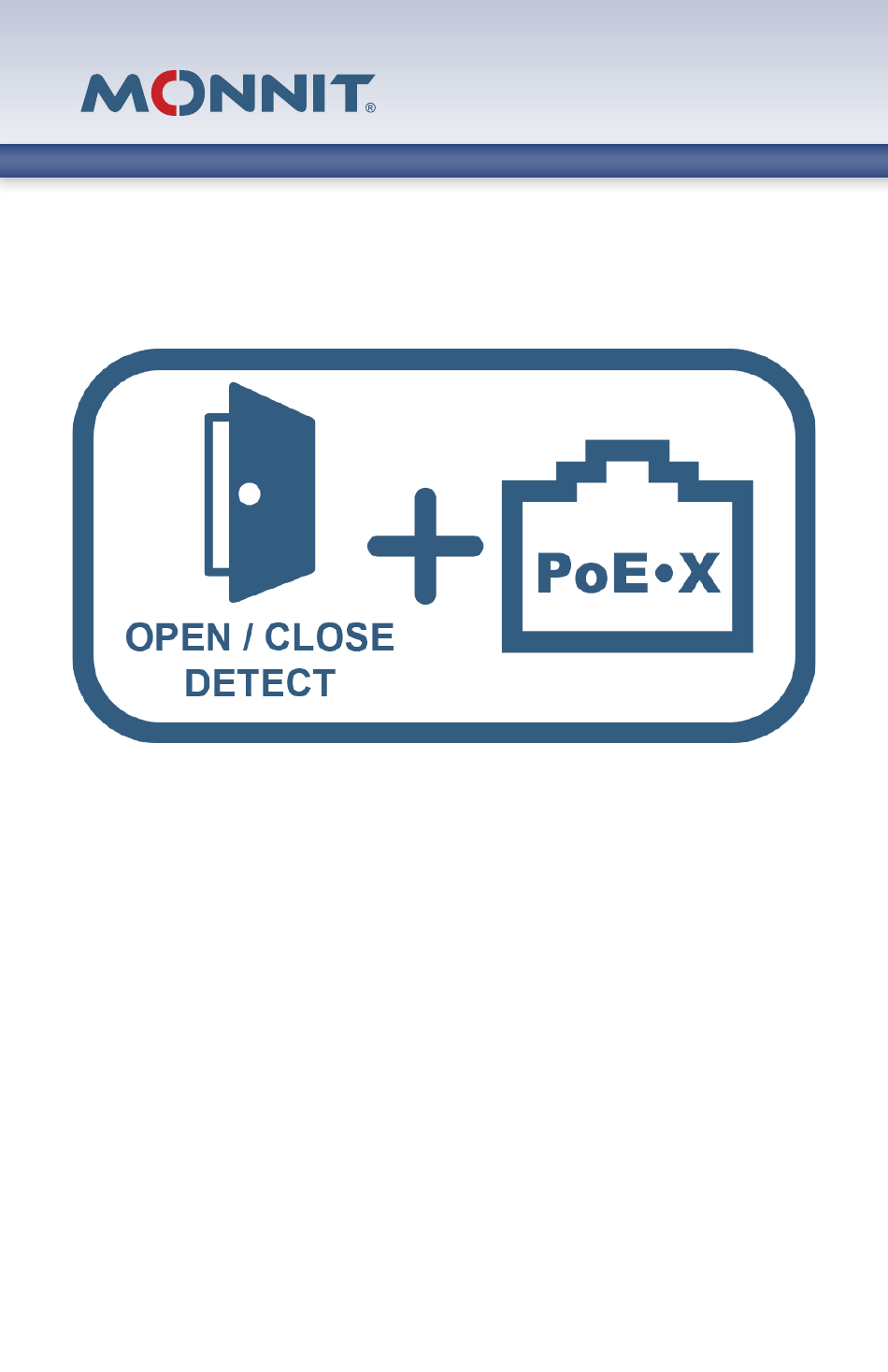

  • Page 1 PoE•X Open / Close Sensor User Guide...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS I. ABOUT THE PoE•X OPEN / CLOSE SENSOR PoE•X SENSOR FEATURES EXAMPLE APPLICATIONS II. SENSOR SECURITY DATA SECURITY ON THE SENSOR iMONNIT SECURITY III. ORDER OF OPERATIONS SET-UP STEPS IV. REGISTRATION REGISTERING A PoE•X SENSOR V. SETTING UP THE PoE•X SENSOR THE LIGHTING SEQUENCE MOUNTING THE SENSOR VI.

  • Page 3: About The Poe•X Open / Close Sensor

    I. ABOUT THE PoE•X OPEN / CLOSED SENSOR The Power-over-Ethernet (PoE) Open / Closed Sensor uses an external magnetic switch to detect the presence or removal of a trigger magnet. When the sensor detects that the magnet is removed or returned it sends the information to iMonnit.

  • Page 4: Sensor Security

    Even when the sensor is at rest, the PoE•X Sensor is designed to prevent prying eyes from accessing the data. The Monnit PoE•X Sensor does not run on an off-the-shelf multi-function OS (operating system). Instead it runs a purpose-specific real-time embedded state machine that can’t be hacked to run malicious processes.

  • Page 5: Registration

    If you have already created an account, start by logging in. For instructions on how to register for an iMonnit account, please consult the iMonnit User Guide at https://www.monnit.com/support/documentation. REGISTERING THE PoE•X SENSOR 1. Add the sensor on iMonnit.

  • Page 6: The Lighting Sequence

    V. SETTING UP YOUR PoE•X SENSOR Plug in powered ethernet cable. Depending on your facility, you might need to plug in both the ethernet cable and power cord. See Figure 3. Figure 3 LIGHTING SEQUENCE The sensor will cycle through three stages as it powers on: Power-on stage: At this stage, the sensor will analyze electronics and program- ming.

  • Page 7: Mounting The Sensor

    Failure to communicate with server FRONT BOTTOM Figure 5 MOUNTING THE SENSOR PoE Sensor Housing BACK Monnit sensors feature mounting flanges and can be attached to most surfaces using the included mounting screws or ETHERNET RESET DC IN double-sided tape. See Figure 6.

  • Page 8: Sensor Overview

    VI. SENSOR OVERVIEW Select Sensors from the main navigation menu on iMonnit to access the sensor overview page and begin adjusting your PoE•X Sensors. MENU SYSTEM Details - Displays a graph of recent sensor data Readings - List of all past heartbeats and readings Actions - List of all actions attached to this sensor Settings - Editable levels for your sensor Calibrate - Reset readings for your sensor...
  • Page 9 Readings View Readings Tab Selecting the within the tab bar allows you to view the sensor’s data history as time stamped data. • On the far right of the Sensor History Data is a cloud icon. ( ) Selecting this icon will export an Excel file for your sensor into your download folder. Note: Ensure that you have input the data you need in the “From”...
  • Page 10 If the user has calibrated the sensor, the Calibrate Active field is set False (0) and the sensor is operating inside the Min and Max Thresholds, the bits look like 00000000 ─ this is represented as 0. If the sensor is using factory calibrations and it is outside the threshold, the bit values are 00010010 and it is represented as 18 (16 + 2 because both the bit in the 16 value is set and the bit in the 2 value is set).

  • Page 11: Interface Settings

    See Figure 9. SNMP Interface ─ SNMP (Simple Network Management Protocol) is an Internet appli- cation protocol that manages and monitors network device functionality. Monnit uses SNMP version 1. These settings can both be configured on iMonnit and the local interface.
  • Page 12 Modbus TCP (Transmission Control Protocol) is the Modbus ─ RTU protocol with a TCP interface. Monnit provides the Modbus TCP interface for you to pull sensor data. You can use Modbus without the server interface active. The data will not be sent to a server, but you can continue to poll for new data as it is received by the server.

  • Page 13: Actions Overview

    VII. ACTIONS OVERVIEW Device notifications can be created, deleted, and edited by selecting the Actions Tab in the tab bar. You can toggle the Action Trigger on or off by selecting the switch under Current Action Triggers. See Figure 12. Figure 12 CREATING AN ACTION •...
  • Page 14 From the Actions page, tap Add Action in the left hand corner. Figure 14 Step 1: What triggers your action? The drop-down menu will have the following options for Action Types (See Figure 15): • Sensor Reading: Set actions based on activity or reading.
  • Page 15 Step 2: Actions • Press the Add Action button under the information header, available action types will then be presented in a select list. • Notification Action: Specify account users to receive notification when this event triggers. • System Action: Assign actions for the system to process when this event triggers.
  • Page 16 Select System Action from the Add Action list. See Figure 19. • Scroll down to the System Action section. • The Action to be done select list has the following options: ► Acknowledge: Automatically signal that you have been notified of an action.

  • Page 17: Using The Local Interface

    VIII. USING THE LOCAL INTERFACE If using iMonnit is not an option, you can set up your sensor offline through the local interface. 1. Connect the sensor to a router or network switch using an ethernet cable. Plug in the sensor to a power outlet. The device will automatically power on.
  • Page 18 STATUS TAB This is a read only section listing the current conditions for your Local Area Network (LAN). See Figure 21. Device MAC Address ─ This is the Media Control Address of your device to exclusively identify the device to a Network Interface Controller.

  • Page 19: The Settings Tab

    SETTINGS TAB The Settings Tab will open to the Network Page. See Figure 22. The Network Page From the Network Page, you can modify settings for your IP address, Router IP Address, Subnet Mask, DNS Server, and Default Server Settings. IP Address ─...
  • Page 20 The registers and their associated data fields are mapped on the next page. To access the sensor holding registers, the assigned slot number for the device needs to be known. When reviewing added devices through the default server, the order in which devices are presented may not necessarily correspond to the order in which the devices are stored in the network list as the default server will sort the devices based on their ID.
  • Page 21 DEVICE HOLDING REGISTERS FUNCTION NAMED FIELDS DESCRIPTION SPECIFIC ADDRESS ADDRESS Sensor ID_High The first 16 bits of a 32-bit serial ID number 40101 Sensor ID_Low The last 16 bits of a 32-bit serial ID number 40102 Device Type The unique type identifier for the sensor profile 40103 Data Age The number of seconds that have elapsed since the...
  • Page 22 The SNMP Page SNMP settings for your device can be adjusted on the offline local interface. You can continue to use SNMP without the server interface active. The data will not be sent to a server, but you can continue to poll for the data as it is received.
  • Page 23 • Inbound IP Range Start and End ─ This is the IP address for the SNMP client. If you have one device to communicate with, the start and end IP addresses will be the same. Exchanging information with multiple machines will require a set of different start and end IP addresses. •...
  • Page 24 Epoch between Default Server and SNTP: This is the difference in seconds between the standard NTP Epoch (start date 01/01/1900) and Monnit’s Epoch (start date 01/01/2012). System Reset Period: The time in hours it takes for the system to reset.

  • Page 25: Support

    Products subjected to abuse, misuse, negli- gence or accident. If any software or firmware incorporated in any Product fails to conform to the warranty set forth in this Section, Monnit shall provide a bug fix or software patch correcting such non-conformance within a reasonable period...
  • Page 26 Customer shall bear the risk of loss for such return shipment and shall bear all shipping costs. Monnit shall deliv- er replacements for Products determined by Monnit to be properly returned, shall bear the risk of loss and such costs of shipment of repaired Products or replace- ments, and shall credit Customer’s reasonable costs of shipping such returned...

  • Page 27: Safety Recommendations

    Sensors or the iMonnit Online System, please visit us on the web at monnit. com/support. Monnit Corporation 3400 South West Temple Salt Lake City, UT 84115 801-561-5555 www.monnit.com Monnit, iMonnit and all other trademarks are property of Monnit, Corp. © 2020 Monnit Corp. All Rights Reserved. MDS-051 (04/20) PAGE 25...
