Park Tool SG-8 Instructions

PARK TOOL CO.
5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
SG-8 Threadless Saw Guide for
Carbon Composite Forks
Designed to accommodate wider saw blades used
specifically for cutting carbon composite tubes,
the SG-8 ensures a straight, clean cut on 1", 1-1/8"
and 1-1/4" threadless forks.
Instructions:
1. Carefully mark location of fork to be cut.
2. Slide SG-8 onto fork until mark is visible
through slot. Tighten handle (ref. #10) with
moderate finger pressure. Excessive pressure
may strip threads in SG-8 and damage fork.
3. Clamp guide plate (ref. #6) into bench vise.
SG-8
Instructions / Instructions / Anleitung / Instrucciones
4. Set blade of hack saw in slot of SG-8 and saw
through fork. Do not apply excessive pressure
on the blade. Keep hacksaw traveling straight
down the slot.
5. Remove fork and finish cut end with
fine sandpaper.
1
2
6
7
9
3

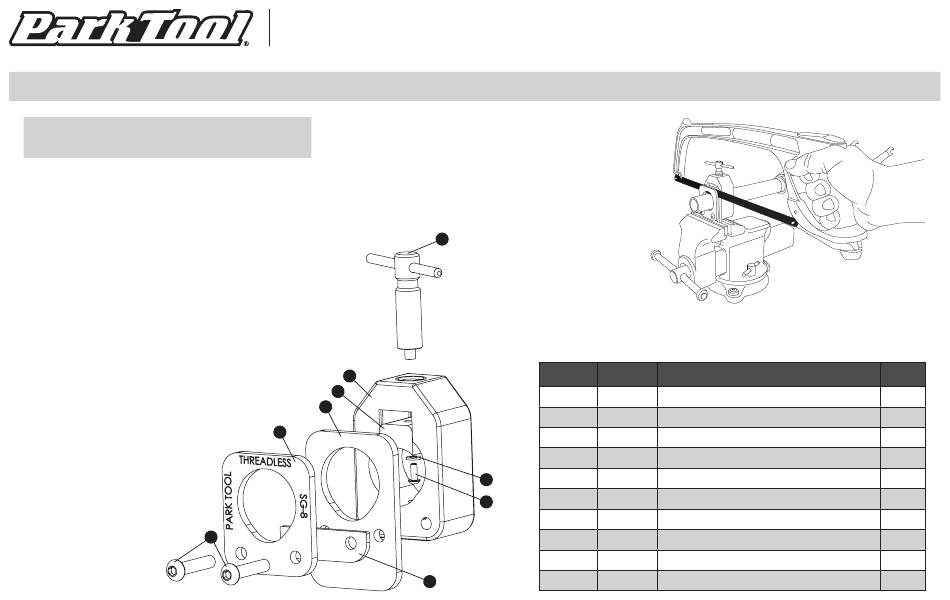

SG-8 PART NUMBERS
Ref. # Part #
1 716B
2 716-7
3 722
4 723B
723A
5
4
6 719
5
7 720-8
8 714-8
9 715
10 782
8
Description
Threadless Guide Body
Pad
Handle & Plunger Assembly
Washer
Button Head Cap Screw M3 x 8
Guide Plate
Cover Plate
Saw Guide Shim
Button Head Cap Screw M6 x 35
Handle
Qty.
1
1
1
1
1
1
1
1
2
1
