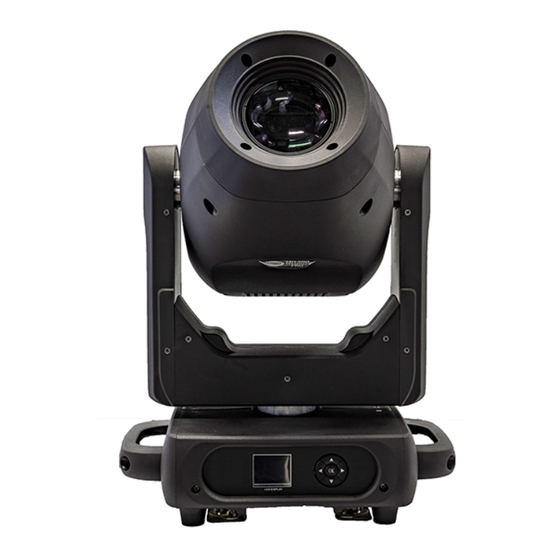

Summary of Contents for Light MH-200 Hybrid Pro V2

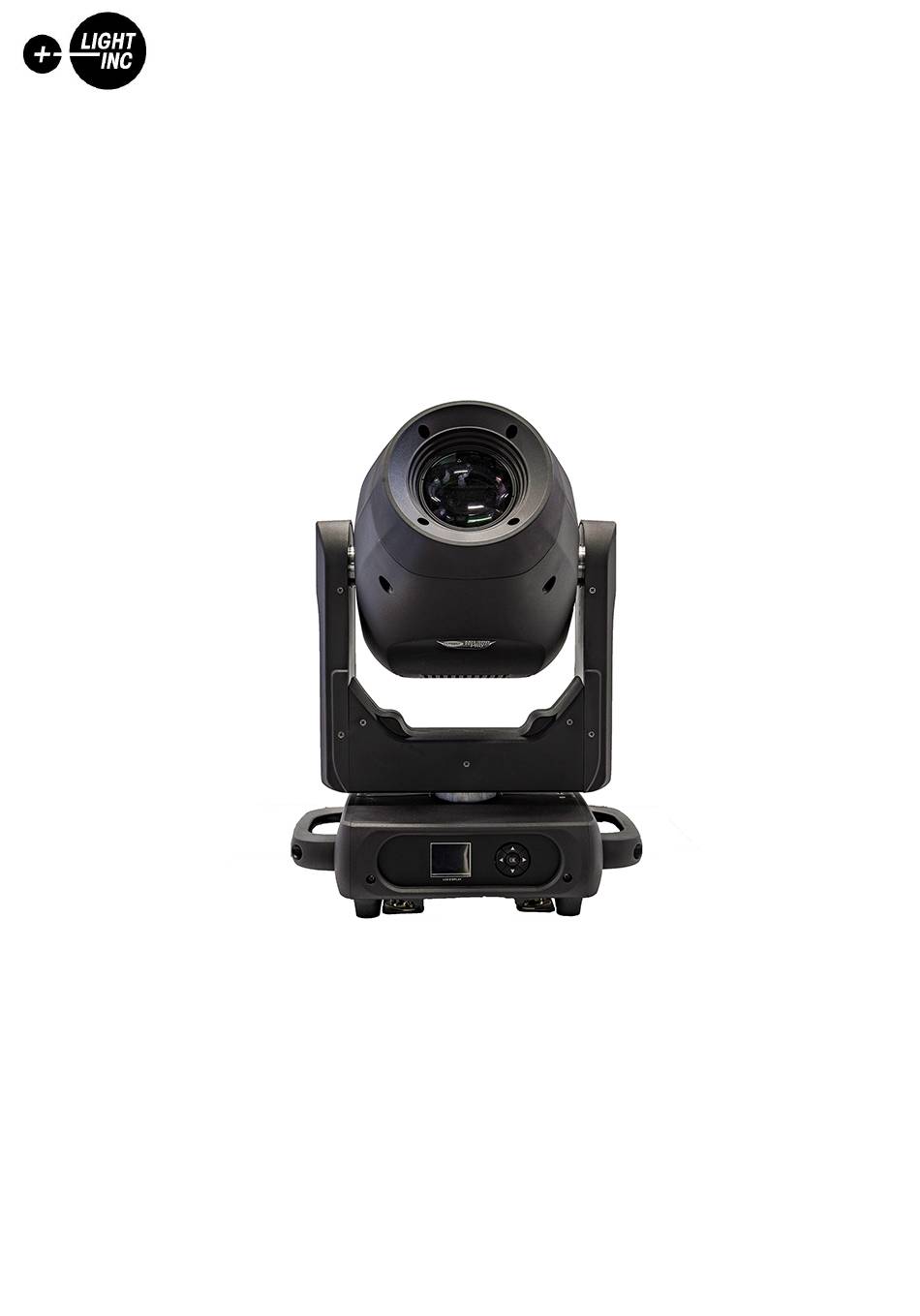

- Page 1 MH-200 HYBRID PRO V2 MANUAL...
-
Page 2: Safety Precautions
Unpacking: Thank you for purchasing MH-200 Hybrid Pro V2. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact. - Page 3 Power supply:……………….…electronic auto-ranging Input voltage range:…………… 90-250V, 50/60Hz Fuse:…………………………… 5 A@220V Power consumption:……………300W@230V Optic Light source: LumiEngin 200W White LED LED lifespan: 60000 hours Dimmer: Smooth dimmer from 0-100% Fixed gobo wheel: 7gobos+Open Rotating gobo wheel: 7gobos+Open Color wheel: 8colors+Open...
-
Page 4: Dmx 512 Connection
Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your MH-200 Hybrid Pro V2, The model is Auto power supply, It is workable in 90-250V/50~60Hz. Please make sure your unit voltage matches the wall outlet voltage before attempting to operate you fixture. - Page 5 DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. Operating Modes: You can use the MH-200 Hybrid Pro V2 in 4 ways: Auto Mode - The unit will automatically chase through the different colors and built-in programs.
- Page 8 Standard Reduced Mode DMX Value Function Mode 0 255 Pan 0 540 0 255 Pan Fine 16bit 0 255 Tilt 0 230 0 255 Tilt Fine 16bit 0 255 Pan/Tilt Speed Fast-Slow 0 255 Dimmer Strobe Open 3 103 Strobe slow-fast 104 107 Open 108 207...
- Page 9 108 114 Gobo 1 shake 115 185 Forward Fast-Slow 186 255 Backward Slow-Fast Static Gobo Wheel Open 8 15 Gobo 1 16 23 Gobo 2 24 31 Gobo 3 32 39 Gobo 4 40 47 Gobo 5 48 55 Gobo 6 56 63 Gobo 7 64 70...
-
Page 10: Rigging The Fixture
5 may be ‘hot’). Also, check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BSL B.V. | SPAARPOT 19| 5667 KV GELDROP | THE NETHERLANDS +31 (0)40 750 24 95 WWW.BSL-LIGHTING.COM | WWW.LIGHT-INC.EU...
