WOODLAND SCENICS ST4790 Instructions

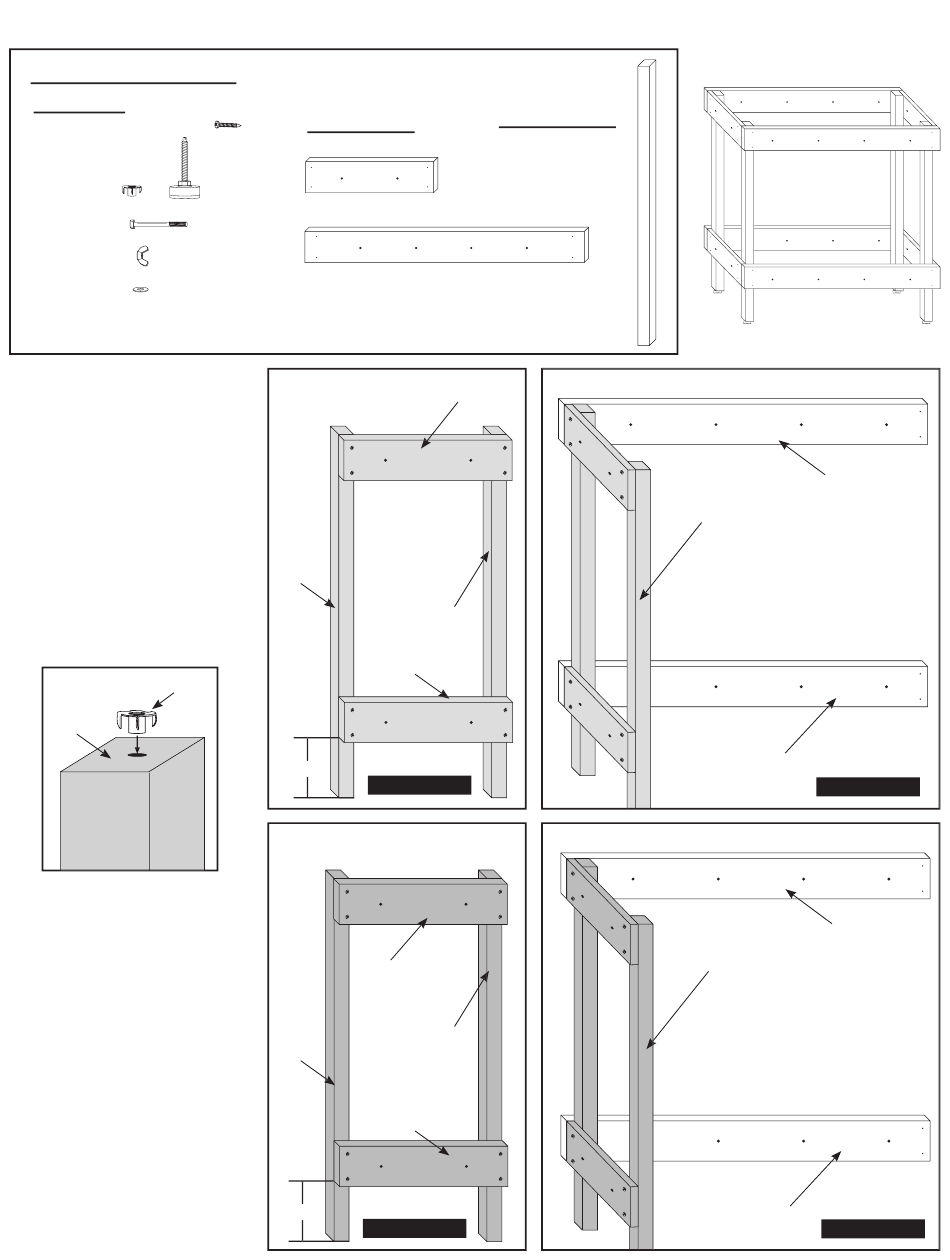

Instructions for ST4790 STRAIGHT MODULE KIT STAND

MATERIALS LIST

HARDWARE
32 pc. - 1 / " Drywall Screws
1
2
4 pc. - Adjustable feet
4 pc. - T-Nut
2 pc. - 3" Bolt
2 pc. - Hex Nut
4 pc. - Washer
All the frame pieces and leg
bottoms have predrilled holes.
Make sure the holes on the
frame pieces are facing you
when you assemble the stand
and the tops are flush. A
screw gun is recommended
when assembling. NOTE: Use
clamps, if available, to hold in
place.
STEP 1. Pound the T-Nuts
into the holes on the
bottom of each leg
(Fig. 1).
Fig. 1
T-Nut
bottom
of leg
A
STEP 2. Assemble Assembly
1 (Fig. 2).
STEP 3. Attach Assembly 1
with frame pieces "C"
to create Assembly
3 (Fig. 3).
STEP 4. Assemble Assembly
2 (Fig. 4).
NOTE: Assemblies
1 and 2 are identical.
STEP 5. Attach Assembly 2
with frame pieces "C"
to create Assembly
4 (Fig. 5).
NOTE: Assemblies
3 and 4 are identical.
FRAME PIECES
3 / " x / " MDF
3 3
8 4
B
= 4 pc. - 16 / " long
1
2
C
= 4 pc. - 36" long
Fig. 2
B
A
A
B
6"
ASSEMBLY 1
Fig. 4
B
A
A
B
6"
ASSEMBLY 2
LEGS
1 " x 1 " PINE
1 / 1 /
2 2
A
= 4 pc. - 35 / " tall
1
2
Fig. 3
Fig. 5
C
Assembly
1
C
ASSEMBLY 3
C
Assembly
2
C
ASSEMBLY 4
