RL4-UCON7-IVE interface installation manual191115
The interface can offer：Reverse camera insertion, several other videos like 2D/3D-360 surround view、night
view、DVR 、phone mirror link 、and support maxim 4 video inputs.

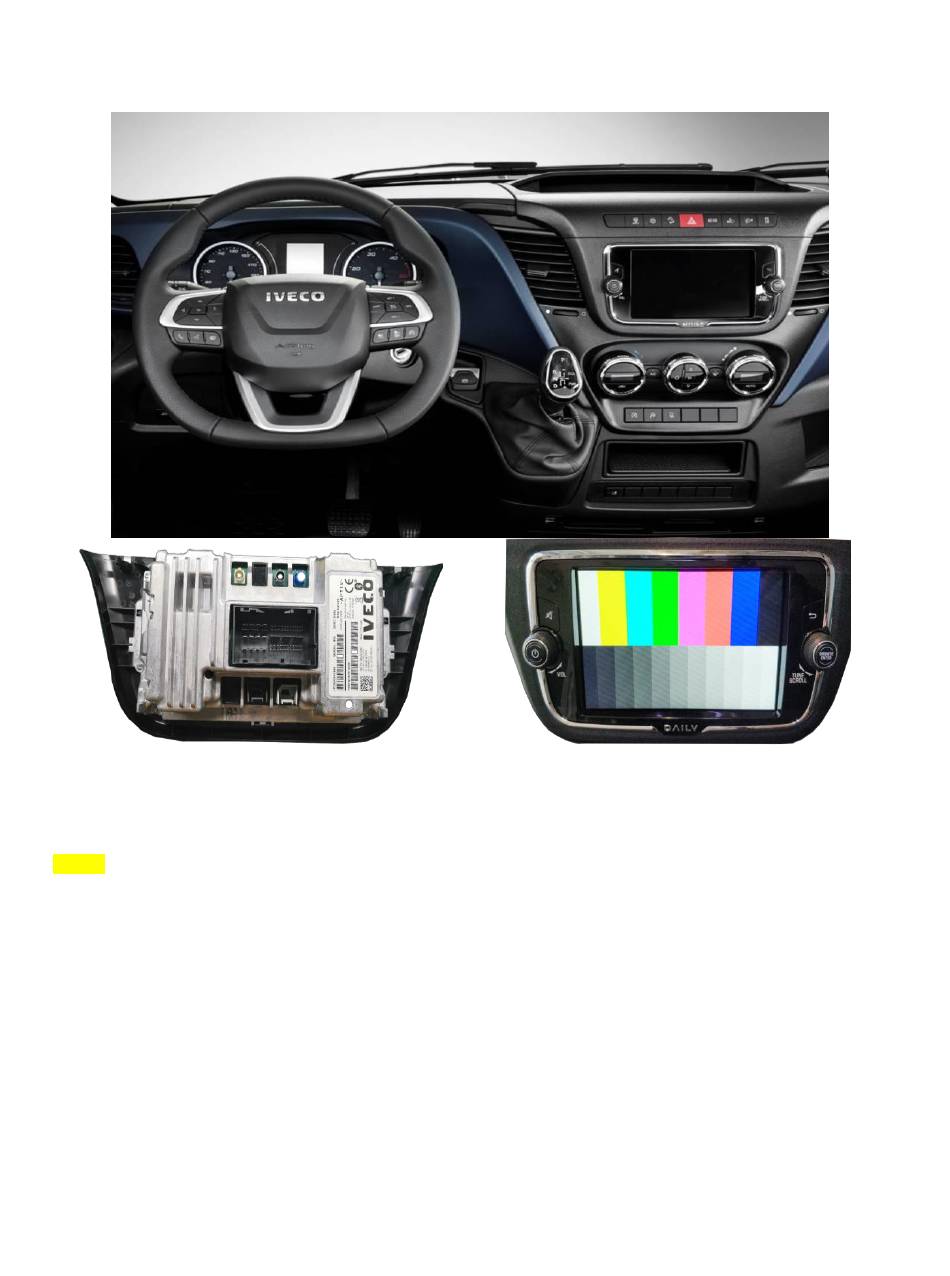

Suitable cars: fits 2019 IVECO with 7inch Monitor.
Features
➢
One simple daughter PCB insertion, it works also when the external box is not connected.
➢
This total unit can be manually powered on by ACC【BATT and Manual ACC connected to cigarette lighter, thus would be
no current leakage at all.
➢
The front video can be easily enabled by short press on the keypad. A hold or long press will make the inputs switched to
other video sources.]
➢
A "Reverse-in" trigger wire to manually switch to the Rev-In video.
➢
The high quality image processor has the advantages of stable and low power consumption. All the components are
automotive specific and work stably in the range of -40~+85℃.
_V20191017
Advertisement
Table of Contents
Summary of Contents for Iveco RL4-UCON7-500
- Page 1 _V20191017 The interface can offer：Reverse camera insertion, several other videos like 2D/3D-360 surround view、night view、DVR 、phone mirror link 、and support maxim 4 video inputs. Suitable cars: fits 2019 IVECO with 7inch Monitor. Features ➢ One simple daughter PCB insertion, it works also when the external box is not connected.
- Page 2 Accessories ① ② ③ ④ ⑤ ⑥ ⑧ ⑦ What's in the Package Name Name Interface box External switch External PCB 4 Video RCA Cable CAN-Harness 0.5*40*200A ribbon 0.5*40*80A ribbon LVDS Cable 0.5*40Pin board Note: spare parts 7 and 8 are equipped with one more set than the actual installation.
- Page 3 Connections Connect the two ribbons to the two sockets on the external PCB. The external PCB sockets are signed OUT and IN. Connect the ribbon IN to the socket IN and ribbon OUT to socket OUT（the ribbon connected to the 40pin external PCB is IN). The PCB installation will show how to connect the ribbons and boards。...
- Page 4 Installation Procedure 1、IVECO 7inch Monitor HU and one external 2、Remove screws, then the rear can be PCB, one LVDS Cable. opened. 3、Pay attention to take the OEM ribbon from 4、Put the OEM ribbon to the external PCB the Monitor as the above picture shows.
- Page 5 DIP Setting 1) DIP-4 Setting DIP up=off DIP down=on default 1/2/3 No function =Down for USB update, otherwise =UP. 2) DIP-8 Setting DIP up=off DIP down=on default Front camera =ON Front camera = OFF AV1 =ON AV1=OFF AV2 =ON AV2=OFF Rear camera installed, when OE rear camera installed.
- Page 6 → → 2) DIP2=OFF: Long press the small button can image shows OEM image shows image shows OEM → → 3) DIP3=OFF: Long press the small button can image shows OEM image shows image shows OEM B. The green line "REVERSE IN" on the video line can be connected with the reversing light line to switch the reversing image.
