Summary of Contents for Dimastech mini v.2.0

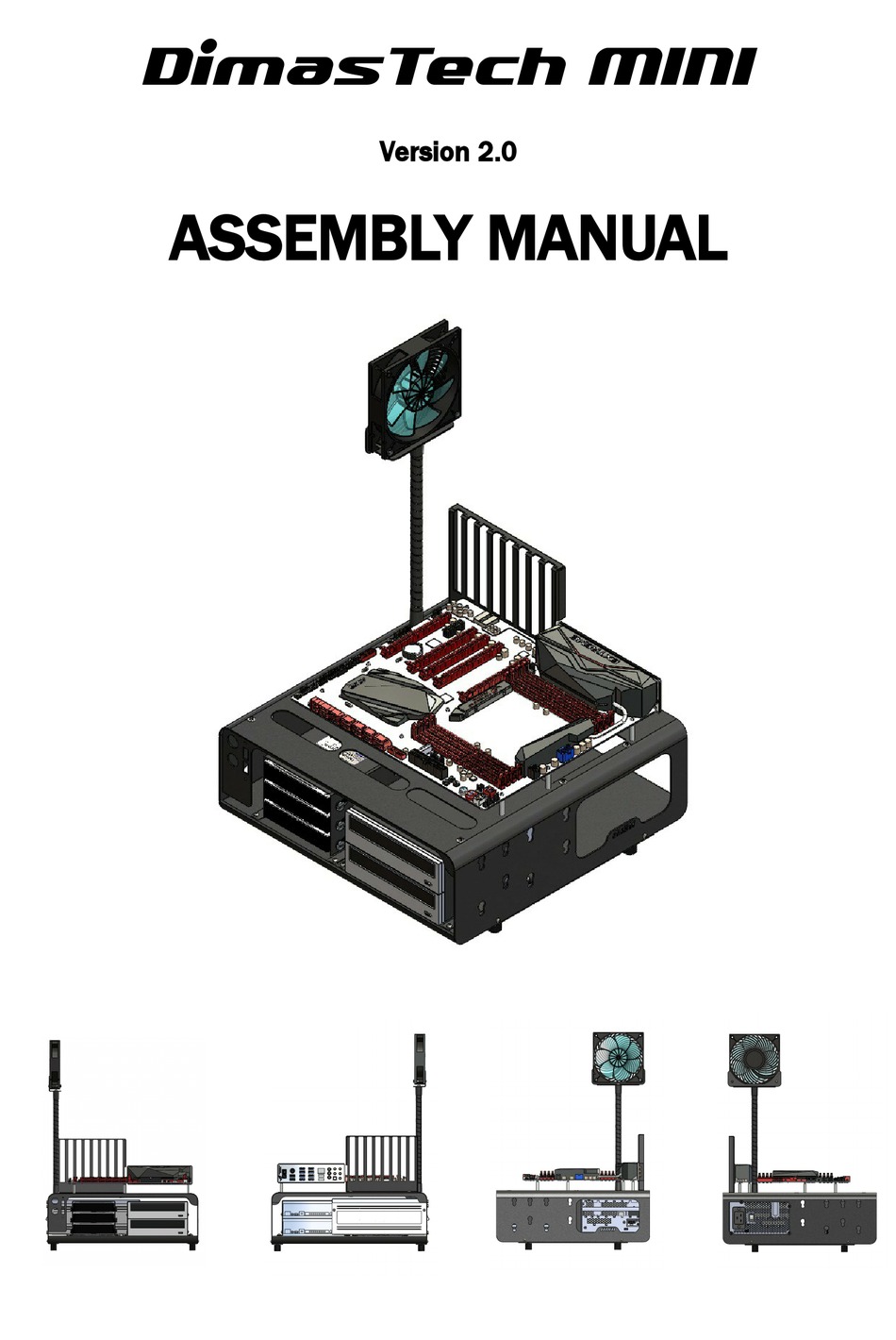

- Page 1 DimasTech MINI Version 2.0 ASSEMBLY MANUAL...
-
Page 2: Contents Of The Kit
CONTENTS OF THE KIT... - Page 3 ASSEMBLY DimasTech Mini V.2.0 - FLEX-FAN - Align VC058 (7) to BT2501 (6) and fasten with No.1 screw VC047_M4x10 (20), as shown in Figure 1 - Align FAN 120 (item not included) to BT2501 (6) on vertical holes and fasten with No.2 screws VC050_M2,5x25...
- Page 4 ASSEMBLY DimasTech Mini V.2.0 – STEP-1 - Assemble No.4 VC067_rubber- feet_M4 (8) into the dedicated M4 threaded inserts, located at the base of the DIMAS_100_C_RF-RB_V.2.0 (1) body, as shown in the figure beside ASSEMBLY DimasTech Mini V.2.0 – STEP-2 - Unscrew the 4 screws VC048_M3x10 housed in the front part of the DimasTech Mini V.2.0...
- Page 5 ASSEMBLY DimasTech Mini V.2.0 – STEP-3 - The DIMAS_23 component (3) has the possibility of housing No.2 optical readers inside it (items not included), the image has the sole purpose of illustrating the possible positions of the parts. - Align the side holes of the optical reader with the slots of the DIMAS_23 component (3) and fasten with No°4...
- Page 6 ASSEMBLY DimasTech Mini V.2.0 – STEP-5 - Insert the components DIMAS_23 (3) and DIMAS_24 (4) with the respective hardware installed, inside the front of the DimasTech Mini V.2.0 and fasten with the No.4 screws VC048_M3x10 previously extracted, as shown in the figure beside.
- Page 7 OVERVIEWING IMAGE IS INDICATIVE OF AN INCORRECT MOUNTING It is necessary, for a correct assembly, that the power supply (PSU) is inserted inside the DimasTech Mini V.2.0 only if the body DIMAS_100_C_RF-RB_V.2.0 (1) and the plan DIMAS_100_P_V.2.0 (2) are assembled, otherwise before proceeding with STEP-7 it is necessary to install the DIMAS_100_P_V.2.0 plan...
- Page 8 ASSEMBLY DimasTech Mini V.2.0 – STEP-8 - The DimasTech Mini V.2.0 has the possibility to mount No.9 spacers VC016_EasyGo_M3_25mm (13) in any of the No.9 threaded holes M3 available to you according to the type of motherboard you have purchased...
- Page 9 ASSEMBLY DimasTech Mini V.2.0 – STEP-10 - The DimasTech Mini V.2.0 has the additional possibility to mount No.1 hard-disk and No.1 SSD disk (items not included) on the sides of the body according to the layout you prefer, the image has the sole purpose to illustrate the possible positions of the parts.
- Page 10 ASSEMBLY DimasTech Mini V.2.0 – PD001_16mm – Unscrew the hexagon nut of the pushbutton PD001_16mm (9), as shown in Figure 1 - Before proceeding with the assembly of the hardware parts, it is necessary to extract the DIMAS_23 (3) and DIMAS-24 components (4) as shown in STEP-2 and STEP-5.
- Page 11 ASSEMBLY DimasTech Mini V.2.0 – PD001_16mm For power ON or reset function, connect without polarity yellow cable to "NO1" and other Yellow cable to "C1", than to use the push button integrated LED, connect the black cable to "-" and the red cable to "+", push button integrated...
