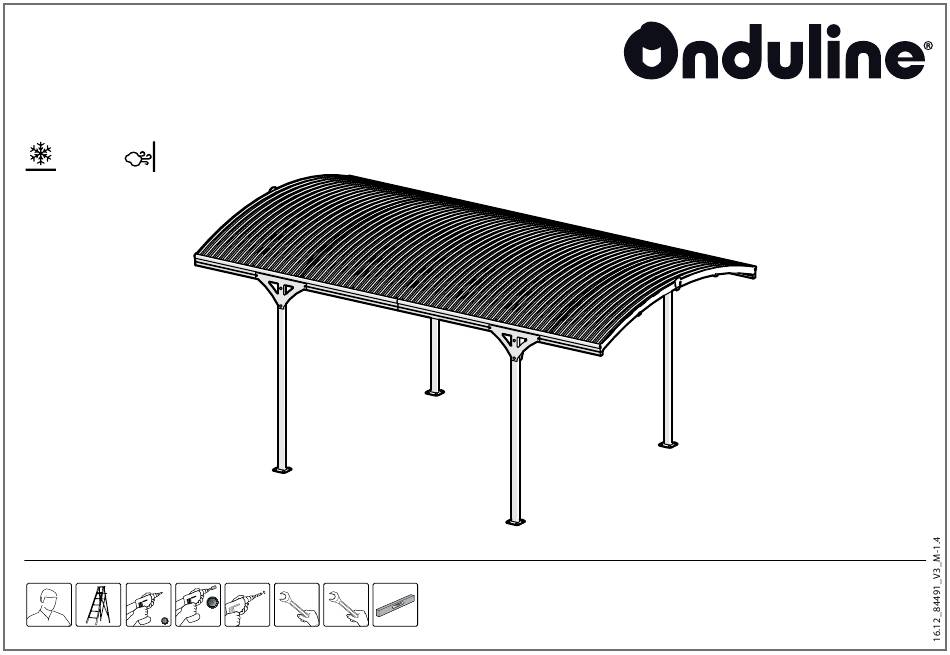

- Page 1 CARPORT modello LUCCA Dimensioni indicative 494,5L x 287,5P x 239Hcm Carico Neve Resistente al vento kg/m 2 km/h 13 mm 3/8” 1/2” 10 mm 3/8” 3/8” 3/8”...
- Page 2 Prodotto importato e distribuito da: Onduline italia Srl Servizio Post Vendita mail@onduline.it +39 0583 25611 www.onduline.it...
- Page 3 » Durante il montaggio IMPORTANTE Quando in alto alla pagina si trova questa icona d’informazione, si prega di riferirsi al Si prega di leggere attentamente queste istruzioni prima di iniziare l’installazione n° di passaggio corrispondente per assistenza e informazioni aggiuntive. di questo carport.
- Page 4 Questo carport dovrebbe essere assemblato su una base solida (cemento o asfalto). Negli altri casi sarà necessario realizzare delle gettate in cemento in prossimità dei pali, proprio come nel disegno. Pavement Stone Asphalt / Soil Autobloccanti Asfalto / terreno 276.5 276.5 109”...
-
Page 5: During Assembly
» During Assembly IMPORTANT When encountering the information icon, please refer to the relevant Please read these instructions carefully before you start to assemble this Product. assembly step for additional comments and assistance. Please carry out the steps in the order set out in these instructions. Keep these instructions in a safe place for future reference. - Page 6 This carport should be assembled on a solid base (such as concrete). Without solid base, pre-foundation, that will include concrete and metal, is needed as in this drawing Pavement Stone Asphalt / Soil 276.5 276.5 109” 109” 108.8” 108.8” 15.7” 15.7”...
- Page 32 Palram’s 10 years Limited Warranty Product Details: Carports Palram Applications (1995) Ltd (Company number: 512106824) whose registered office is at Teradion Industrial Park, M.P Misgav 20174, Israel (“Palram”) warrants that the Product will be free from defects in material or workmanship for a period of Ten years from the original date of purchase subject to the definitions, terms and conditions contained in this warranty.
