Hills Home Hub HAS-206 Quick Manual

HAS-206 ACTIVE SPLITTER & HVM-101M MODULATOR
Description:
®

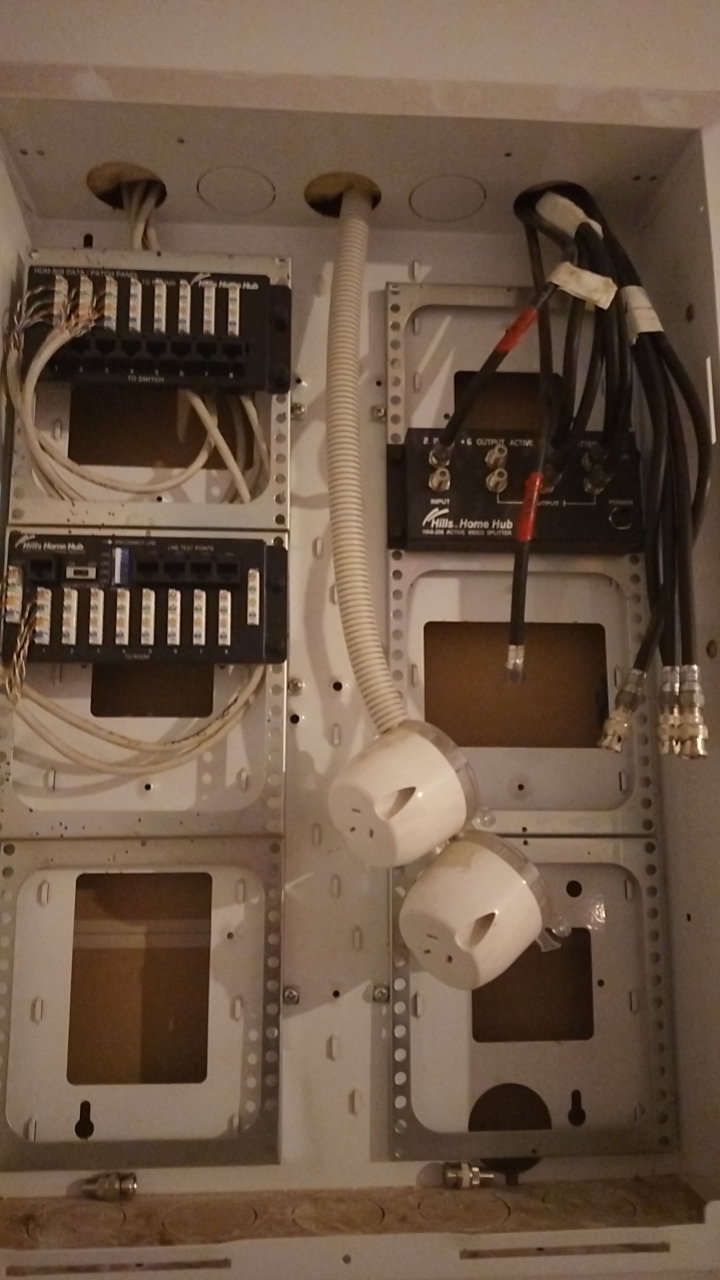

This Hills Home Hub HAS-206 Active video Splitter Module and HVM-101M Single Channel Mono
Modulator are used as part of the home video distribution infrastructure. The HAS-206 is required to
route the antenna signal, or Cable TV to up to six locations throughout the home. The HVM-101M is
required to convert the video OUT signal from your VCR or DVD or Pay TV or Security Camera to a
modulated TV channel for viewing on a standard UHF television set.
Installation:
To install the modules, simply insert tabs to the cap
located on the rail of the enclosure. Press the fastener
to lock the module at the desired position. Refer to
Fig 1.
Refer to Fig 2 for wiring diagram and Table 1 & 2 for
modulator dip-switch channel selection.
Fig.2
2 INPUT * 6 OUTPUT ACTIVE VIDEO SPLITTER
INPUT
HAS-206 ACTIVE VIDEO SPLITTER
FROM RF OUT
HVM-101M SINGLE CHANNEL MODULATOR
RF Output
Specification:
HAS-206 Active Video Splitter
Frequency Range: 40MHZ to 1000MHZ
Max Input Level: 85dBuV
Max RF Output Level: 100dBuV
Output Gain: 7dB
RF Return Loss: >=10dB
Impedance: 75Ù
Power: 12VDC @ 500mA
Dimensions:165mmW x 72.5mmHx25mmD
FROM ANTENNA / CABLE PAY TV
power
POWER
OUTPUT
Video Level Adjust
Input
1 2 3 4 5 6 7 8
Video Audio L Audio R
Channel Select
POWER
Step 1
TO TV OUTLETS
FROM VIDEO OUT
HVM-101M Single Channel Modulator
Frequency Range: 470MHZ to 825MHZ
RF Output Level: >=68dBuV
Impedance: 75Ù
RF Return Loss: >=10dB
Audio Modulation: Mono
Power: 12VDC @ 500mA
Dimensions:165mmW x 76mmHx59mmD
All Rights Reserved. Product specifications subject to change without notice.
Fig 1
Step 2
T V
CCTV
CAMERA
