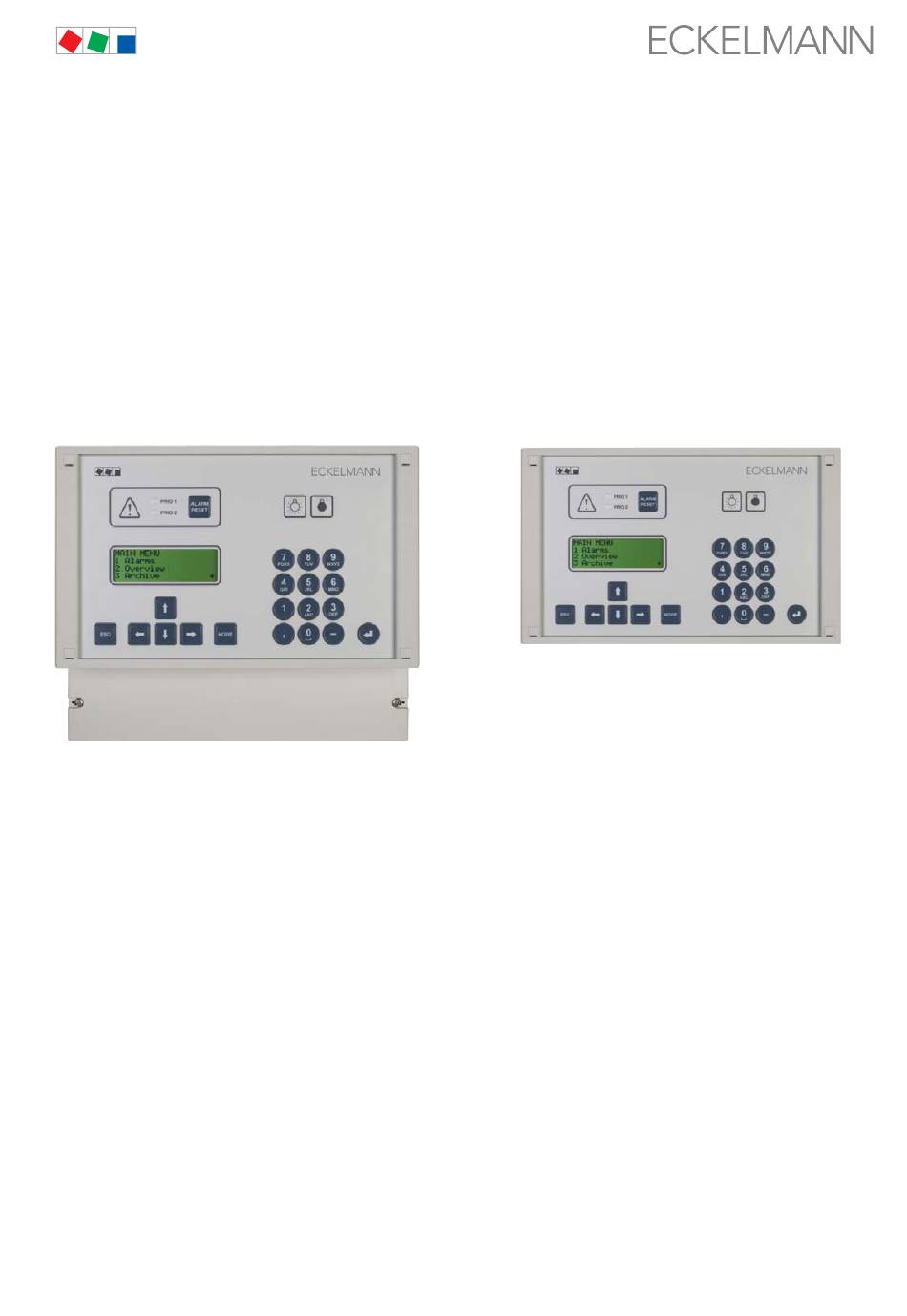

Operating instruction
AL 300 W / AL 300 S
The operation terminal in the E*LDS system - Version V5.08
AL 300 S
AL 300 W
Version 3-1 05. Dezember 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL 300 W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ECKELMANN AL 300 W

  • Page 1 Operating instruction AL 300 W / AL 300 S The operation terminal in the E*LDS system - Version V5.08 AL 300 S AL 300 W Version 3-1 05. Dezember 2019...
  • Page 2 All rights to any use whatever, utilisation, further development, forwarding and creation of copies remain with the Eckelmann AG company. In particular, neither the contract partners of Eckelmann AG nor other users have the right to distribute or mar­ ket the IT programs/program parts or modified or edited versions without express written permission. To some extent, names of products/goods or designations are protected for the respective manufacturer (registered trademarks etc.);...

  • Page 3: Table Of Contents

    ..........Wall mounting of AL 300 W .
  • Page 4 First start - load factory settings ......... . . Special functions for startup .
  • Page 5 10.2.3 AL 300 W for wall mounting ..........

  • Page 6: Conventions

    Conventions Explanation of 'General Instructions' A general instruction is composed of two elements: 1. A pictogram of a hand at the side of the page as well as 2. The actual text: For example: Further information on the device's degree of protection is contained in the chapter ”Technical Data”. Explanation of 'Safety Instructions and Hazard Warnings' Safety instructions or hazard warnings are composed of four elements: 1.

  • Page 7: Warning Signs And Symbols Employed

    Warning Signs and Symbols Employed Explanation of the warning signs and symbols employed for the safety instructions and hazard warnings in this documentation: S Attention symbol - general hazard warning 1. Hazard warning The attention symbol indicates all safety instructions in this operating instruction and service manual, which, if not observed, could result in danger to life and limb.

  • Page 8: Safety Instructions

    Safety instructions Safety instructions The safety regulations, codes and notes contained in this section must definitely be observed and complied with at all times. During repairs on the entire LDS system, the accident prevention regula­ tions and general safety instructions must be observed. Important information (safety instructions and hazard warnings) are indicated by corresponding symbols (see page 1 of the chapter ”Conven­...

  • Page 9: Disclaimer In The Event Of Non-Compliance

    Safety instructions Work on electrical equipment may only be undertaken by authorized and duly trained personnel (as defined by DIN/VDE 0105 and IEC364) with full observance of the currently valid regulations contained in the following: - VDE Regulations - Local safety codes - Intended use see chapter 1.3 - BGV A3 - Five Safety Rules...

  • Page 10: Intended Use

    Safety instructions 1.3 Intended use This control system may only be used for the purpose for which it is intended: The AL 300 control system has been designed for use as operator terminal in commercial, industrial refrigera- tion systems and building management systems with the intended functional scope as described in these oper­ ating instructions, and it is to be used under the environmental conditions in these instructions.

  • Page 11: Electrostatic Sensitive Devices (Esds)

    Safety instructions 1.5 Electrostatic sensitive devices (ESDs) Electronic components and assemblies (e.g. printed circuit boards) are vulnerable to electrostatic discharge. Regulations for handling and working with electrostatic sensitive devices must definitely be observed and complied with, see also section 1.5.1! All electrostatic sensitive devices (ESDs) are identified by the warning sign illustrated.

  • Page 12: Application Of Al 300

    For installation in the control panel; the mechanical dimensions are identical to the dimensions of the CI 4x00 System Centre / CI 3000 Store Computer AL 300 W: For wall mounting in a plastic casing Version 3-1 05. Dezember 2019...

  • Page 13: Applications

    Application of AL 300 2.1 Applications E*LDS components Functions With With With for CI 4x00 CI 3000 / example CI 3I00 VS 3010 Centralized parameter setting and configuration of all LDS components via CAN bus. The AL 300 can be used for remote con­ trol and configuring of all LDS components from a single location via CAN bus.

  • Page 14: Circuit Points

    Application of AL 300 2.2 Circuit points Connectivity for the AL 300 Operator Terminal is as follows (for details see chapter Pin and Terminal Assign­ ments): Inputs/outputs: S 2 x digital inputs 230 V AC e.g. for monitoring of external alarms S 3 x relay outputs 230 V AC, floating output: - 2 x alarm contacts (PRIO1/2) e.g.

  • Page 15: New Features Compared To Earlier Versions

    Application of AL 300 Version 4.06 When a CI 3000 Store Computer of Version 4.08 or higher is connected to the LDS System, the AL 300 Opera­ tor Terminals used must also be Version 4.06 or higher. Version 4.03 When a CI 3000 Store Computer of Version 4.03 or higher is connected to the LDS System, the AL 300 Opera­ tor Terminals used must also be Version 4.03 or higher.

  • Page 16: Function Of Al 300

    Function of AL 300 Function of AL 300 3.1 Messages and alarms Use in the E*LDS system The AL 300 Operator Terminal, in addition to the CI 4x00 System Centre and the CI 3000 / CI 3100 Store Com­ puter, is the central collection point for messages of all E*LDS components that are listed in an alarm list and displayed to the operator - see menu 1 "Alarms".

  • Page 17: Resetting Alarms

    Function of AL 300 Danger of failure of alarm messaging! Successful transmission of alarms from E*LDS components cannot be assured in systems where CAN bus communication is severely disturbed (frequent messages of CAN faults or actual CAN failure). In order to ensure the correct functioning of individual alarm paths (e.g. via modem and relay contacts), they must be checked by triggering test alarms on a cyclical basis, see the chapter Operation.

  • Page 18: Alarm And Signal Inputs

    Function of AL 300 3.2.1 Alarm and signal inputs The AL 300 Operator Terminal has two digital inputs 230 V AC for monitoring and alarming external systems/ alarms (terminals AL.1: A1/A2 / AL.2: B1/B2). The inputs are initially deactivated and must be configured prior to use (Menu 7-5) for N.C.

  • Page 19: Can Bus Station Monitoring

    Function of AL 300 3.4 CAN bus station monitoring The AL 300 Operator Terminal performs cyclic check on presence of all E*LDS components previously de­ tected in the system. Failure of a component is detected by this station monitoring and reported by Computer Fault alarm.

  • Page 20: Alarm Suppression In Manual Shutdown Of Case Controllers

    Function of AL 300 3.5 Alarm suppression in manual shutdown of case controllers Shutdown of a refrigerated case or coldroom is detected by CAN bus station monitoring as a failure (Screen 7-1). The display of all AL 300 and - if present - of the CI 4x00 System Centre or of the CI 3000 / CI 3100 Store Computer then shows the query whether the refrigeration point has been deliberately unloaded.
  • Page 21 Function of AL 300 Notice: Version 3-1 05. Dezember 2019...

  • Page 22: Installation And Startup Of Al 300

    The AL 300 S Operator Terminal for panel mounting is installed in a metal cage with plastic front and can be mounted either in a switch cabinet (AL 300 S) or a plastic casing (AL 300 W, see chapter 4.2). The power con­...

  • Page 23: Wall Mounting Of Al 300 W

    Installation and Startup of AL 300 4.2 Wall mounting of AL 300 W Type AL 300 W Operator Terminal for wall mounting is housed in a plastic casing. The power consumption of the Operator Terminal is 5 VA. See Section “Specifications” for electrical enclosure, measurements and panel mounting cut-out.

  • Page 24: Restart - Restart Of The Controller

    Installation and Startup of AL 300 4.4 Restart - restart of the controller For a restart, the device is restarted with all configured parameters and the CAN bus address set on the rotary switch. A restart can be initiated using the following procedure: - disconnection and reconnection of the power supply or - by simultaneously pressing the buttons MODE + ESC + 8 4.5 First start - load factory settings...

  • Page 25: Replacing The Battery

    Installation and Startup of AL 300 4.7 Replacing the battery The Operator Terminal contains a backup battery (CR 2450-N, 3V lithium). A Battery Low alarm (Error No. 10) will be signalled when the battery needs replacing. Warning - hazardous electrical voltage! Danger of electric shock! The safety instructions and work safety instructions in chapter 1 must be observed when replacing the battery, the safety instructions in chapter 1 of the work safety instruc­...
  • Page 26 Installation and Startup of AL 300 Then carefully lift off the front panel and carefully set it down in upright position (see picture)! Do not bend the ribbon cable! Pull battery (a) up out of its holder (see arrow in picture) dispose of it in regulation manner. Never dispose of this product with other household waste.

  • Page 27: Firmware Update Using Replacement Of The Eprom

    EPROM due to incorrect handling! We recommend arranging the replacement of the EPROM by Eckelmann AG or by very well trained personnel who are very experienced with the handling when opening electronics and the replace­...

  • Page 28: Pin And Terminal Assignments Of Al 300

    Pin and Terminal Assignments of AL 300 Pin and Terminal Assignments of AL 300 5.1 Pin and terminal diagram The pin and terminal assignment of the AL 300 S and AL 300 W are identically AL 300 W (WALL-MOUNTING) PRIO 1...

  • Page 29: Terminal Assignment For 230 V Ac Power Supply

    Pin and Terminal Assignments of AL 300 5.1.1 Terminal assignment for 230 V AC power supply Warning - hazardous electrical voltage! Danger of electric shock! BEFORE and AFTER connection it must checked that the 230 V AC supply cable is off load! Terminal No.

  • Page 30: Terminal Assignment For Can Bus

    Pin and Terminal Assignments of AL 300 5.1.4 Terminal assignment for CAN bus Warning - hazardous electrical voltage! If mains voltage is connected to the CAN bus terminals, this will result in the destruction of all components connected to the CAN bus! Leads running of the CAN bus must be shielded (cable type: LiYCY)! As a general rule, care should be taken to ensure that signal leads and leads carrying a supply voltage are routed through separate cable channels.
  • Page 31 Pin and Terminal Assignments of AL 300 Notice: Version 3-1 05. Dezember 2019...

  • Page 32: Operation Of Al 300

    Operation of AL 300 Operation of AL 300 6.1 Operating interface (11) PRIO 1 ALARM RESET PRIO 2 PQRS WXYZ MODE (10) Priority 1 alarm indicator light Priority 2 alarm indicator light Reset key to stop buzzer and horn (HORN) and cancel alarms External lighting on/off switch (general lighting) Lighting on/off switch indicator light ENTER key...
  • Page 33 Operation of AL 300 Example of screen numbering: 6 - 1 - 3 - ... means that the screen can be opened from the menu tree by entering the numbers 6 - 1 - 3 - ..This may be a display screen or operating screen. Example of operating screen numbering: 4 - b - a means that the higher-level screen can be opened from the menu tree by entering the number 4.
  • Page 34 Operation of AL 300 Scrolling Use the cursor keys ( ↑ ) and ( ↓ ) to: ‐ Scroll line by line, for example when selecting a variable in a line from a list of predefined variables. ‐ Scroll block by block to view values that extend beyond the capacity of the display. Paging The cursor keys ( ←...

  • Page 35: Deactivate Entry Block

    Operation of AL 300 Exiting menus and screens Press the ESC key to exit the menu or screen you are in at any time. This returns you to the next higher menu. All menus and screens are closed automatically if no key is pressed for 10 minutes. The display then jumps to the Main Menu or to the Alarm menu if any fault report is currently active.

  • Page 36: Superuser Mode (Granting Superuser Rights)

    Operation of AL 300 6.2.2 Superuser mode (granting Superuser rights) Superuser mode is reserved exclusively for use by service personnel! With activated setpoint interlock (restricted setpoint changes) a password is necessary. For detailed instructions see menu 9-3. Before any values can be entered, the entry block must be deactivated as follows: ‐...

  • Page 37: Remote Operation/Parameter Setting Of A E*Lds Component

    Operation of AL 300 6.3 Remote operation/parameter setting of a E*LDS component The LC display contains 4 lines of 20 characters. If a menu or screen contains more than 4 lines, the cursor keys can be used to scroll through the remaining lines. Main menu ↑...

  • Page 38: Menu Structure Of Al 300

    Menu structure of AL 300 Menu structure of AL 300 7.1 Main menu AL 300 Level 1 Level 2 Level 3 Screen No. Screen Name Main menu MAIN MENU 1 Alarms ALARM XXX 2 Overview OVERVIEW 3 Archive ARCHIVE 4 Messages MSG/ALARM 5 Remote Control REMOTE CONTRL...

  • Page 39: Menu 0 Main Menu

    Menu structure of AL 300 Level 1 Level 2 Level 3 Screen No. Screen Name 8 I/O Monitor I/O MONITOR 9 Parameters PARAMETERS Date/Time DATE/TIME Language LANGUAGE Interlock INTERLOCK 0 BMS BMS Overview : Only CI 3000 / CI 3100 - no CI 4x00: This screen can only be opened when a CI 3000 / CI 3100 Store Com­ puter is installed in the E*LDS system and is active.

  • Page 40: Menu 1 Alarms

    Menu structure of AL 300 7.1.2 Menu 1 Alarms This screen is used to display the alarm log. The alarm log contains all alarms reported by all E*LDS compo­ nents connected to the system via the CAN bus. It also contains alarms generated by the AL 300 Operator Ter­ minal and external alarms connected to the AL 300.

  • Page 41: Menu 2 Overview

    Menu structure of AL 300 7.1.3 Menu 2 Overview This screen is used for quick display of current operating status and temperature of the separate refrigeration points (display cases or coldrooms). On opening this screen, the case or coldroom having the lowest CAN bus address (0 to 99) is shown first.

  • Page 42: Menu 5 Remote Control

    Menu structure of AL 300 7.1.6 Menu 5 Remote Control This screen is used to select E*LDS components that are to be remotely operated. Selection can be made in two ways: ‐ By entering the CAN bus address of the E*LDS component and confirming with the ENTER key. ‐...

  • Page 43: Menu 7 Monitoring

    Menu structure of AL 300 7.1.8 Menu 7 Monitoring Overview and configuration of E*LDS components and system and alarm inputs of AL 300 Operator Terminal. MONITORING Overview of number of configured and active E*LDS components 1 Overview Detailed status of all E*LDS components 2 Status Configure name and item ID of all E*LDS components 3 Configuration...
  • Page 44 Menu structure of AL 300 S Screen 7-2 Status Select an E*LDS component either by entering its CAN bus address and confirming with the ENTER key or by ↓ using the up and down cursor keys (↑) ( ). You can switch between the following two screens using the (→) and (←) cursor buttons.
  • Page 45 Menu structure of AL 300 S Screen 7-4 Alerting ALERTING Configuration of the alarm relay 15/16/18 (HORN) 1 Alarm relay Configuration of the system alarms 2 System alarms S Screen 7-4-1 Alarm relay Entry Default ALARM RELAY ↑ ↓ (Y/N) Alarm relay stop: Hold AlmRel Y: Relays are only deactivated when the cause for the alarm...
  • Page 46 Menu structure of AL 300 Danger of failure of alarm messaging! The priorities for system and first start must not be set to 0, otherwise critical alarm messages cannot be transmitted! Successful transmission of alarms from E*LDS components is not assured in systems where CAN bus communication is severely disturbed (frequent reports of CAN faults or actual CAN failure).

  • Page 47: Menu 8 Monitor

    Menu structure of AL 300 7.1.9 Menu 8 Monitor No further details are give for this menu, as it is reserved for use by service personnel. 7.1.10 Menu 9 Parameters Entry screen to access submenus for date/time, user language and cancelling entry block for E*LDS components. PARAMETERS Configure date and time 1 Date/Time...
  • Page 48 Menu structure of AL 300 S Screen 9-2 Language CI 3000 / CI 3100: This screen is used to change the user language for the complete system during operation. ↓ The selected language is indicated by a check mark. Use the up and down cursor keys (↑) ( ) to select the lan­...

  • Page 49: Menu 0 Bms Overview

    Menu structure of AL 300 Activate/deactivate Superuser mode (release superuser rights) With this input screen the input options lock can be released and setpoint values changed in the Superuser mode. The release of the lock is only to be carried out by service personnel! With activated setpoint interlock (restricted setpoint changes) a password is necessary.

  • Page 50: Decommissioning And Disposal

    The scope of our delivery is designated as a component exclusively for further processing. As a consequence of this fact, ECKELMANN AG does not undertake any measures for the taking back or mu­ nicipal recycling of this product as it is not supplied directly to the free market.
  • Page 51 Decommissioning and disposal Notice: Version 3-1 05. Dezember 2019...

  • Page 52: Alarms And Messages Of Al 300

    Alarms and Messages of AL 300 Alarms and Messages of AL 300 Messages Cause Correction Hardware faults 0 internal Fault nn The system centre / store computer has per­ Please contact Service Organization formed a restart due to a severe error. Details can be found in the operating manual of the system centre or store computer.
  • Page 53 Alarms and Messages of AL 300 Messages Cause Correction 50 First Start The operator terminal has performed a first start. All parameters have been deleted and replaced with the factory settings. 51 Power Failure The operator terminal has been powered off or has performed a reset.

  • Page 54: Electrical Data

    Specifications of AL 300 10 Specifications of AL 300 10.1 Electrical data Warning - hazardous electrical voltage! Danger of electric shock! Overvoltage category III / pollution degree 2: All device connections designed for use with 230 V AC supply voltage must be connected to the same phase conductor.
  • Page 55 Transport: 660 hPa ... 1060 hPa / Operating:860 hPa ... 1060 hPa Weight AL 300 S: ca. 1500 g AL 300 W: ca. 2100 g Enclosure AL 300 S for panel mounting: Front (with rubber gasket and mounting frame): IP54...

  • Page 56: Specifications Of Al 300

    Specifications of AL 300 10.2 Mechanical data 10.2.1 Panelmounting of AL 300 PRIO 1 ALARM RESET PRIO 2 PQRS WXYZ MODE (1): Control panel (2): Panel cutout All dimensions in mm Version 3-1 05. Dezember 2019...

  • Page 57: Mounting Frame For Panel Mounting Al 300 S

    Specifications of AL 300 10.2.2 Mounting frame for panel mounting AL 300 S (1): Mounting frame (2): Insert nut M3 All dimensions in mm Version 3-1 05. Dezember 2019...

  • Page 58: Al 300 W For Wall Mounting

    Specifications of AL 300 10.2.3 AL 300 W for wall mounting D: Vorprägungen für PG / metrische Gewinde E: Prestamping for PG / metric windings F: Marques à PG / filetages métrique All dimensions in mm Version 3-1 05. Dezember 2019...
  • Page 59 Specifications of AL 300 Notice: Version 3-1 05. Dezember 2019...

  • Page 60: Order Numbers And Accessories Of Al 300

    Operator Terminal AL 300 S for panel mounting LIAL300051 Operator Terminal AL 300 W for wall mounting LIAL300052 Additional information such as data sheets, more detailed documentation and FAQs are available for you online in E°EDP (Eckelmann ° Electronic Documentation Platform) at https://edp.eckelmann.de/edp/lds/_l6x6nQYvsu.
  • Page 61 Order numbers and accessories of AL 300 Notice: Version 3-1 05. Dezember 2019...
