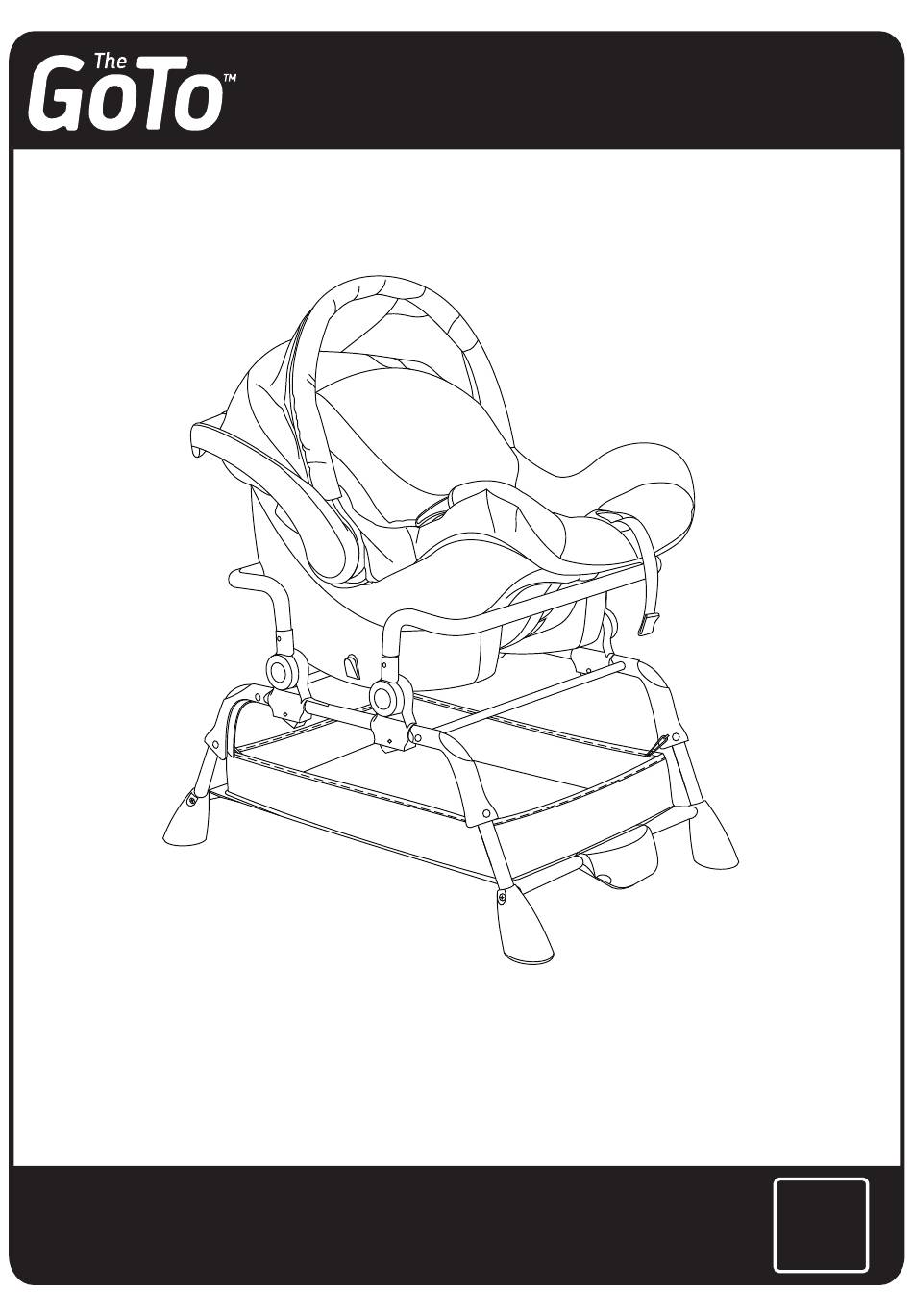

FOLDING INFANT CAR SEAT STATION FOR HOME AND AWAY
Read all instructions BEFORE assembly and USE of product.
KEEP INSTRUCTIONS FOR FUTURE USE.
Remove product from the box and remove all packaging materials.
Caution: make sure to throwaway all packaging materials.
Make sure to inspect every part to make sure there are no broken or missing
parts. If so, do not use and contact us!
A
MODEL # GT111003
PRN:
AIM-GT111003-
PNX [15.06.04]
