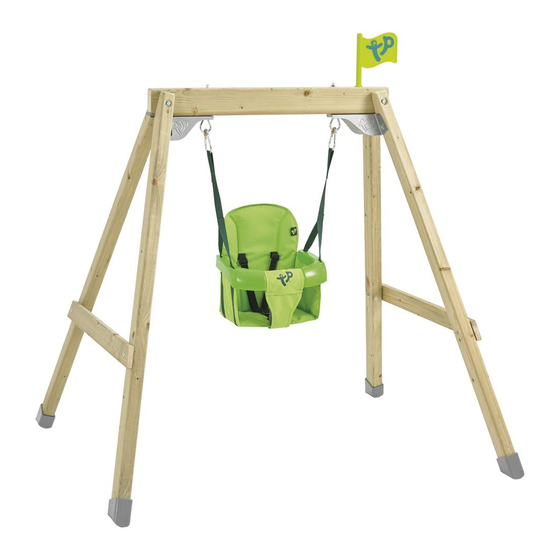

TP331/332 Forest Acorn Growable
Swing with Swing Seats.
(TP913/TP913A Folding Swing Seat & TP916 Standard Swing Seat)
INSTRUCTIONS FOR ASSEMBLY MAINTENANCE AND USE
PLEASE RETAIN FOR FUTURE REFERENCE.
These instructions must be followed for safe assembly and use.
WARNING!
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED.
THIS PRODUCT MAY CONTAIN SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS
UNTIL FULLY ASSEMBLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN.
WARNING: OWNERS SHALL BE RESPONSIBLE FOR MAINTAINING THE LEGIBILITY OF THE WARNING
LABELS.
WARNING: ONLY FOR DOMESTIC USE. FOR OUTDOOR USE ONLY.
ADULT SUPERVISION IS REQUIRED.
WARNING: THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 6 MONTHS TO 10 YEARS.
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE USE.
Swing Frame
WARNING : MAXIMUM USER WEIGHT 100KGS
TP913/TP913A Folding Swing Seat
WARNING: THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 6 MONTHS TO 3 YEARS.
WARNING : MAXIMUM USER WEIGHT 45KGS
TP916 Standard Swing Seat
WARNING: THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 3 YEARS TO 10 YEARS.
WARNING : MAXIMUM USER WEIGHT 60KGS
Important!
Please retain for future reference.
2 Person
Assembly Build
Recommended
