Summary of Contents for Rx Count Rx-4

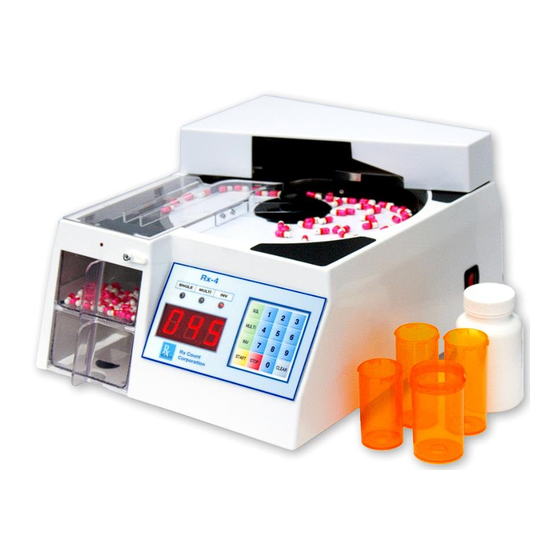

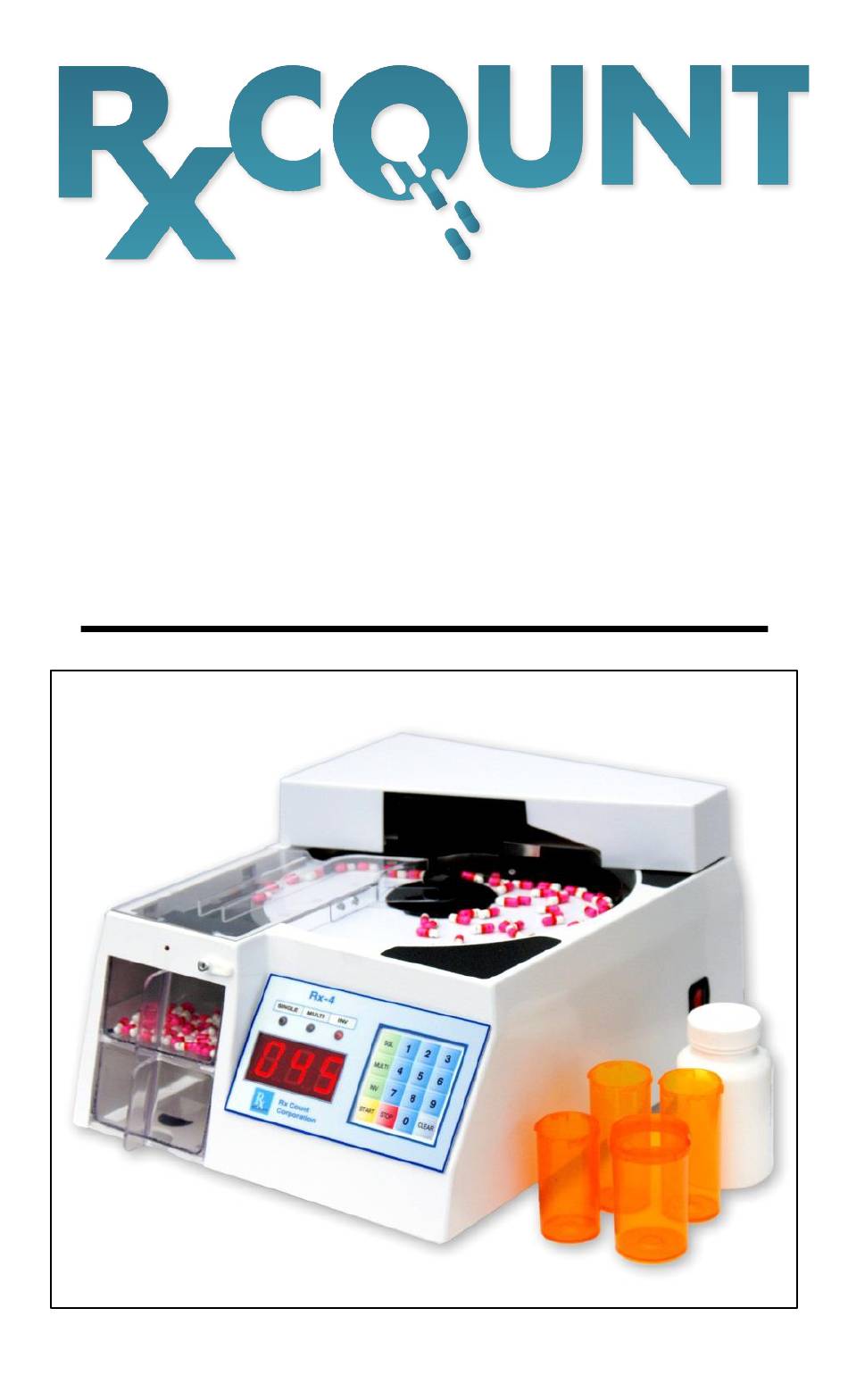

- Page 1 Rx-4 Automatic Tablet & Capsule Counter OPERATOR’S MANUAL...
-
Page 2: Table Of Contents
Page 2 Rx Count Corporation TABLE OF CONTENTS 1. Table of Contents………………………………………………….…2 2. Package Contents…………………………………………………...3 3. Machine Description………………………………………………..3 4. Operating Instructions……………………………….………………4 5. Machine Components……………………………………………….5 6. Using the Vial Drawer…………………………………………….….6 7. Cleaning Instructions………………………………………………...7 8. Cleaning the Sensor…………………………………………………8 9. Operating Tips………………………………………………………..9 10. Troubleshooting Guide…………………………………………….10... -
Page 3: Package Contents
Rx Count Corporation Page 3 Thank you for purchasing the Rx Count Rx-4 Automatic Tablet & Capsule Counter. This Operator's Manual describes the Rx-4, its functions and its method of use. Please read this manual thoroughly before operating this machine. -
Page 4: Operating Instructions
Multiple mode is for performing multiple counts of the same quantity of the same pill. When the desired quantity is dispensed, simply press START and the Rx-4 will count the same quantity again. You can do this as many times as needed. To clear turntable after last count, leave top drawer out and press CLEAR / INVENTORY / START. -
Page 5: Machine Components
Rx Count Corporation Page 5 MACHINE COMPONENTS... -
Page 6: Using The Vial Drawer
Page 6 Rx Count Corporation USING THE VIAL DRAWER The vial drawer enables rapid, direct filling of prescription vials. Remove both collection drawers and insert the vial drawer into upper drawer slot. Simply insert the vial onto the dispensing tube. The vial retaining tab will hold the vial firmly in place. -
Page 7: Cleaning Instructions
Rx Count Corporation Page 7 CLEANING INSTRUCTIONS ***TURN OFF POWER*** Remove Remove Remove Sensor Cover Sorting Wheel Turntable Disc 1 Tilt back Auto-Gate Assembly 2 Remove any powder build-up off the bottom of gate. 3 Remove and clean Sensor Cover... -
Page 8: Cleaning The Sensor
Rx Count Corporation CLEANING THE SENSOR ***TURN OFF POWER*** If your Rx-4 does not count properly, counts by itself, or the automatic gate will not open, follow the steps below to properly clean the unit’s infrared sensors. 1. Locate the Sensor area in the front-left corner of the top of the unit. -
Page 9: Operating Tips
Rx Count Corporation Page 9 OPERATING TIPS DO’s 1. Clean your Rx-4 daily with isopropyl alcohol. DO NOT USE ACETONE WHICH WILL DAMAGE PLASTIC ITEMS 2. Place pills on turntable before pressing START 3. Make sure the SEPARATOR TAB is in proper position (See Page 4) 4. -
Page 10: Troubleshooting Guide
Page 10 Rx Count Corporation TROUBLESHOOTING GUIDE No Power Check power cord and be sure it is firmly inserted into a working, grounded AC outlet. Check fuse in rear of the unit. Replace with 1 amp fuse only. Pills are dispensed but unit does not count, OR, Sensor Signal... -
Page 11: Safety Considerations
DO NOT block the fan opening. SERVICE If your Rx-4 requires service, return the machine to Rx Count Corporation in the original carton and packing, freight prepaid to Rx Count Corporation. Please include a detailed description of the problems with your machine. - Page 12 Rx Count Corporation 17945 Sky Park Circle, Suite B Irvine, CA 92614 Phone: 949-250-4225 Fax: 949-250-4226 Service@RxCount.com www.RxCount.com...
