CPI ACM-125C-1 Manual

Pairing Remote with Pool Lights ACM-197C, ACM-125C, ACM-198C:
Batteries not included
After installing two new "AAA"
batteries in the remote control,
press the RED POWER button. The
LED light located in the center of
the color ring will flash BLUE (LED
light does not remain illuminated).
If the LED light does not flash,
replace the batteries.
Connect the light to the
transformer and plug the power
cord into a GFCI outlet. The pool
light will turn on.
While pointing the remote at
the pool light (not the transformer)
immediately and simultaneously
press the "M" and "C" buttons,
hold for 15 seconds.
If the pool light flashes
3 times the paring has been
successful, if not, unplug the pool
light from the GFCI outlet, wait
15 seconds before plugging the
light back in and trying again.
Tips:
• You can be a couple of feet away from
the pool light when pairing for the first time.
• Pairing does not have to be done at night.
• It may take several tries to pair the
remote to the pool light.
• IMPORTANT: unplug the power cord from
the GFCI outlet for 15 seconds between
every try in order for the pool light to reset.
• Press the RED POWER button to turn
the pool light on and off.
By: Champlain Plastics Inc.
87 Pillsbury Road, Rouses Point, NY 12979
www.champlainplastics.com

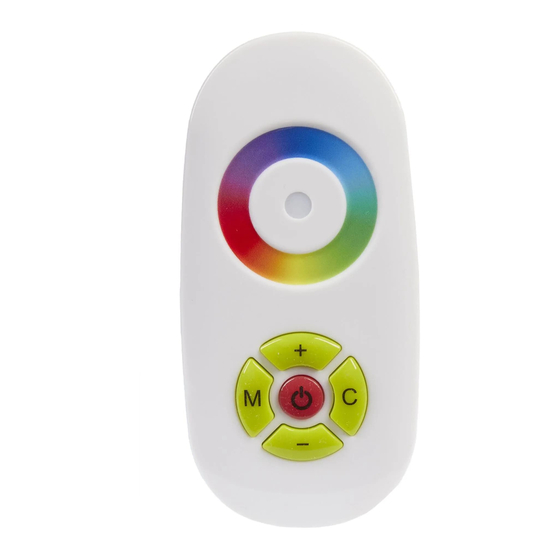

ACM-125C-1 Remote Control
For use with: ACM-125C, ACM-197C, ACM-198C
Connect the light
to the transformer,
plug in the power cord.
Point the remote at the pool light.
immediately and simultaneously
press the "M" and "C" buttons,
hold for 15 seconds.
For use with Pool Lights
ACM-197C; ACM-125C; ACM-198C
MAX
MIN
M
The pool light
will flash 3 times
if pairing has
been successful
Point the Color Ring
towards the pool
light.
+
C
-
INS-REMOTE-3E
09-2019
