Summary of Contents for Dr.Prepare DPS-500-01-US

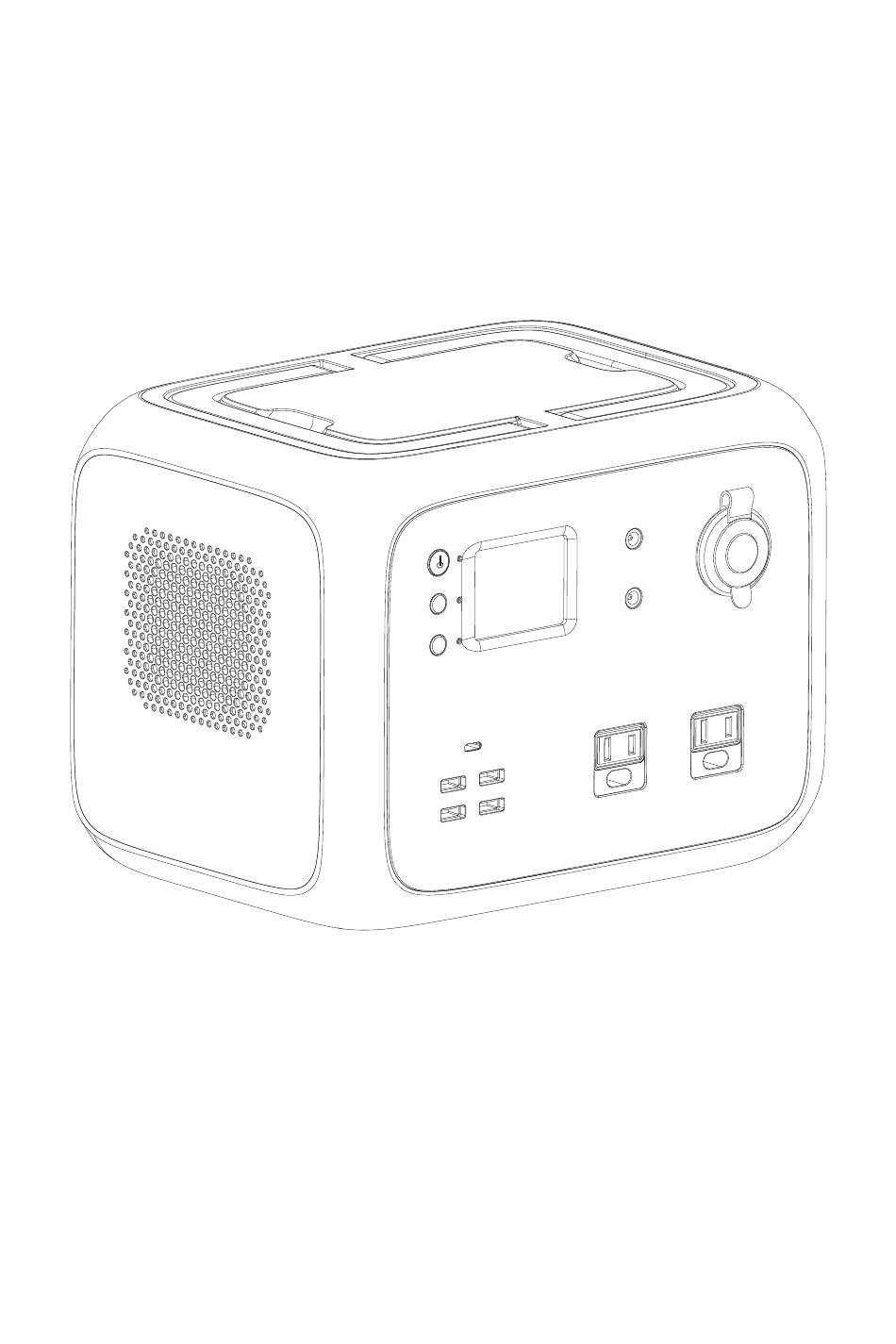

- Page 1 500Wh Portable Power Station User Manual...
- Page 2 Forehead Please note the below comments while reading the instruction manual ●Due to product improvements, partial changes in appearance and specifications may be made without prior notice. ●This manual cannot be copied or reproduced without the use of the individual. ●If the product requires maintenance, please contact the local designated system installation and maintenance personnel.
-
Page 3: Safe Operating Guidelines
Safe Operating Guidelines Please be sure to observe the following for safe use ！ The situation in which people die or are seriously injured to a large extend due to improper operation DANGER ！ The possibility of death or serious injury due to incorrect operation) WARNING ！... - Page 4 Do not use metal to contact AC output interface. It may cause electric shock, fever, fire and other dangers. ！ Do not wipe the liquid inside the eye. After washing with clean water, please see a doctor immediately. It may cause the risk of blindness. Please do not use it as general waste disposal.
- Page 5 Remove the AC cable from the socket when lightning strikes during charging. ！ When it thunders, a large current from the socket may be generated Into a fever, fire, fire and other accidents. Please charge in the specified voltage range (AC 100-240v).Otherwise, it may cause heating, fire, fire and other accidents.
-
Page 6: Packed Items
Please read this manual before use and follow its guidance. Keep this manual for future reference 1. Packed Items Before opening the package, please check whether the package is damaged or not, after opening the package, please check whether the product appearance is damaged or lack of accessories. -
Page 7: Function Introduction
2. Function Introduction 1. Main power button 7. Wireless discharging plate 2. DC power button 8. DC 12V 5521 output port 3. AC power button 9. DC12V car ignitor output port 4. LCD screen 10. AC output port 5. Type-C PD output port 11. -
Page 8: Charging Instructions
charge status and the number under INPUT shows the real-time charging power. Once it is fully charged, all battery segments will be lit and remain solid. ！ Note:If the product malfunctions, error codes would be displayed on screen. 3. Charging Instructions ！... -
Page 9: Buttons Operation
(1) Connect the product and socket with the AC charger in the package. (2) please unplug the charger when charging completed.(it takes about 6-7hrs to fully recharge the product if using 90W AC adapter charger) ！ Note: It is normal for this product to get hot during charging. ！... - Page 10 light, and the LCD will display “AC ON”. DC power off : Press and hold the AC button for over 2 seconds, the AC indicator will be off, and the LCD will display “AC OFF”. ！ Note: Turn off these buttons to save power when no using. ！...
-
Page 11: Storage And Maintenance
●Estimation of backup time 25smartphones 20W LED lamp 75W LCD TV 2 hours 25 hours 6.6 hours 10Watt load 20Watt load 75Watt load 80W electric tool 90W refrigerator 200W electric stewing pot 6 hours 5.5 hours 2.5 hours. 80Watt load 90W load 200Watt load load power... -
Page 12: Technical Specification
6. Technical specification Output Rated voltage 100-120Vac 220-240Vac Rated power 300 W Peak power 450W AC output Overload 300W≤load<450W@120S; capability 450W≤load@1s; Frequency 50/60Hz(adjustable) DC12V output 9.6-12.6Vdc ① Rated voltage (cigarette Rated current lighter) DC12V output Rated voltage 9.6-12.6Vdc ② (5521) Rated current BC1.2,Apple,Samsung USB output... -
Page 13: Troubleshooting
7. Trouble shooting If the product cannot charge or power other devices, please check according to following steps: 1. Make sure the power button is turned on. 2. Make sure the AC and DC power buttons are on, viz. the LED on the right of the button is green 3. -
Page 14: Frequently Asked Questions And Answers(Faq)
DC12V-2 input over Recover by pressing Current >-1A current button System overloaded, Total power>420W at Recover by pressing DC output stop 3mins button Inverter output Power>300W at 2mins or Recover by pressing overloaed power >450W button Inverter output Recover by pressing AC output short-circuit overcurrent button... - Page 15 frequency displayed on the LCD will change accordingly. Step 3: After selecting the desired frequency, press the DC button and AC button at the same time to complete the setting. Step 1 can be repeated to check the current frequency. ●Can the AC output carry a refrigerator or air conditioner? Workable for low power, and over 100W is not recommended.
- Page 16 P/N:16.061.00175-01A0...
