- Page 1 Stiltz Trio + Homelift User Manual www.stiltz.co.uk...
-
Page 2: Table Of Contents
Introduction.............. 3 Important Information Prior to Initial Operation ..4 Components ............. 5 Lift Components Car Operating Panel, Remote Control Safety Features ............7 Safety Sensors in the Lift Car Roof and Lift Car Floor Locking Mechanism, Light Curtain Additional Safety Sensors Emergency Features Safety Brake, Motor and Gear Brake Emergency Power Supply... -
Page 3: Introduction
• Maintenance of your lift is even easier if you sign up for a regular warranty agreement to extend the life of your Stiltz Trio + . This is optional, however we do recommend it in order to keep your lift in optimal condition. -
Page 4: Important Information Prior To Initial Operation
Important Information Prior to Operation The Stiltz Trio + Homelift has been equipped with a number of safety and emergency features to ensure safe usage at all times. Nevertheless, it is essential that the lift is operated in accordance with the user manual to ensure that no accidents occur. -

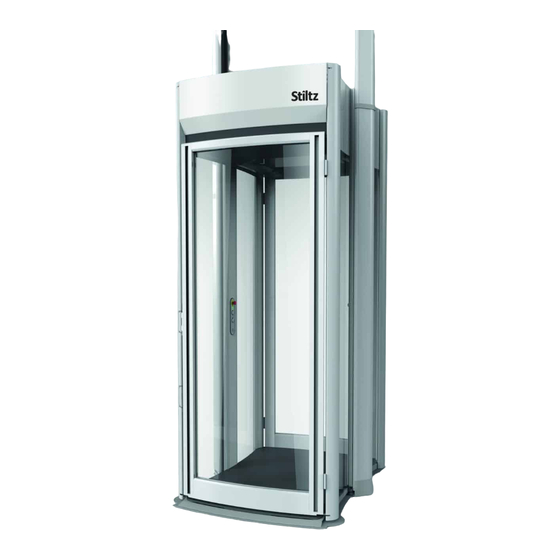

Page 5: Components
Important Information Prior to Operation and Lift Components | Stiltz Trio + Homelift Components Lift Components Cover Panel for electrics and hoist unit LED Lights Car Operating Panel (C.O.P.) Guide Rails Seat (not shown) Lift Car Floor with safety sensors... - Page 6 Car Operating Panel LED display lights on the Car Operating Panel There is an obstruction in The door is not closed the light curtain area Normal operation, the lift is ready to go The sensors in the cabin roof signal an obstruction No power The permissible maximum The sensors in the cabin floor...
-
Page 7: Safety Features
Car Operating Panel and Safety Features | Stiltz Trio + Homelift Safety Features The numerous safety features have been designed to ensure safe and comfortable lift travel at all times. They prevent - or stop - the lift from moving in case of a malfunction or in the event of an object or person blocking the operating radius. -
Page 8: Additional Safety Sensors
The Slack Rope sensor detects if the lift ropes are slack and will prevent the lift car from attempting to travel any further. In the unlikely event that the regular limit switches should fail, there are auxiliary switches located above and beneath the Lift Car. -
Page 9: Safety Brake, Motor And Gear Brake
If any of these safety features are activated, they must be disengaged and reset by a Stiltz Homelift service technician. Emergency Power Supply In the event of a power failure occurring whilst... -
Page 10: Lift Operation
Lift Operation Using the Lift from Inside Calling the Lift using the the Car Remote Control 1. When entering the lift, the lights come on You can position the two remote controls automatically. Stand (or sit) in the lift facing anywhere around your home and these the opening. -
Page 11: Troubleshooting
Lift Operation and Troubleshooting | Stiltz Trio + Homelift Troubleshooting Problem Possible cause Solution The lift will not operate The light barrier protecting Remove the obstruction the car entrance is obstructed. The barrier light is illuminated and a buzzing sound is heard The key switch is off. -
Page 12: Supplementary Information
Homelift number for assistance first • The number is 0330 222 0334 WARNING To ensure that the emergency power within the lift is charged at all times, the power plug of the Stiltz Trio + Homelift should never be disconnected from the mains supply. -
Page 13: Declaration Of Conformity
Technical construction files are available for the Stiltz Duo and Trio Homelifts. They are compiled and maintained by the Head of Engineering at the above address. The Stiltz Homelifts have been examined and certified by Liftinstituut BV, Notified Body number 0400, located at Buikslotermeerplein 382, P.O. - Page 14 We hope that you enjoy your new Stiltz Trio + Homelift...
- Page 16 Head Office Building 5, Bay 1 First Avenue Pensnett Estate Kingswinford DY6 7TE Southern Office Unit 13, Anglo Trade Park Fishponds Road Wokingham Berkshire RG41 2AN Northern Office 4, The Courtyard Building Thorpe Lane Guiseley, Leeds West Yorks hire LS20 8LG Committed to providing stylish and accessible living for all...
Need help?
Do you have a question about the Trio+ Homelift and is the answer not in the manual?
Questions and answers
My lift will not move when I put two objects in that weight over 200 lbs
The Stiltz Trio+ Homelift has a rated load capacity of 250 kg (approximately 551 lbs). Two objects weighing over 200 lbs each would exceed this weight limit, preventing the lift from operating for safety reasons.
