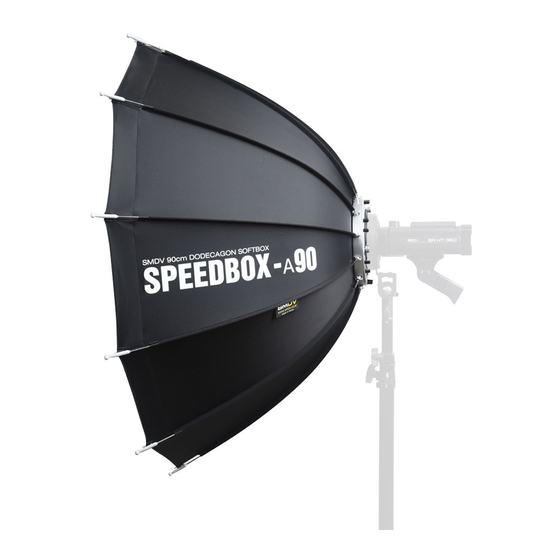

ALPHA SPEEDBOX

Initial Assembly

Connecting the rods
Insert the 12 rods into the rod holders on the speedring.
Securing the fabric and rods to the speedring.
Pull the elastic loops attached to the fabric over the hooks
on the rod holders.

Attaching Strobe Adapter

Attaching strobe adapter
Unscrew the 3 pieces of locking screw on the back of the speedring. Then mount the appropriate strobe adaper.
Secure by tightening the locking screws.
Opening the softbox.
Pull the rods back into the groove in the speedring until
the rod holders click in place.
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA SPEEDBOX and is the answer not in the manual?

Questions and answers

Related Manuals for smdv ALPHA SPEEDBOX

Summary of Contents for smdv ALPHA SPEEDBOX

  • Page 1 ALPHA SPEEDBOX User Guide Initial Assembly Connecting the rods Insert the 12 rods into the rod holders on the speedring. Securing the fabric and rods to the speedring. Opening the softbox. Pull the elastic loops attached to the fabric over the hooks Pull the rods back into the groove in the speedring until on the rod holders.
  • Page 2 SMDV dealer/retailer. At SMDV’s option, defective product will be repaired or replaced. Repair or replacement is the exclusive remedy under the warranty. Warranty is void if SMDV determines that the product was subject to abuse, misuse, negligence, or unauthorized repair.
