- Page 1 ATC41-ISO20 INSTRUCTION MANUAL ATC41-ISO20 INSTRUCTION MANUAL Practical guide to the correct use of Automatic Tool Changer ISO20 DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
- Page 2 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
- Page 3 ATC41-ISO20 INSTRUCTION MANUAL This manual contains information protected by copyright. It and its attachments shall not be photocopied or reproduced in any form, either fully or in part, without the prior written consent of TEKNOMOTOR S.R.L. DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
- Page 4 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
-
Page 5: User Manual Revision Table
The manual addresses to installers, operators and service technicians working with TEKNOMOTOR S.R.L. electrospindles. TEKNOMOTOR S.R.L. supplies the manual together with its electrospindles at the last revision available. ATTACHMENTS: Attachments listed below are integral part of the user manual and shall be read and understood in conjunction with to avoid missing important information: •... - Page 6 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
-
Page 7: Disclaimer
TEKNOMOTOR S.R.L. DESIGNED IT. SAFE OPERATION DEPENDS ON THIS. WARRANTY AND LIABILITY UNDER GENERAL SALES CONDITIONS OF TEKNOMOTOR DEPEND ON THIS AND THEY WILL LAPSE IF THE INSTRUCTIONS PROVIDED IN THIS USER MANUAL WILL NOT STRICTLY APPLIED. INSTALL THE ELECTROSPINDLES AS DESCRIBED IN THE FOLLOWING... - Page 8 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
-
Page 9: Table Of Contents
ATC41-ISO20 INSTRUCTION MANUAL INDEX USER MANUAL REVISION TABLE: ....................6 ATTACHMENTS: ..........................6 DISCLAIMER: ..........................8 INDEX ............................10 1. INTRODUCTION ........................14 1.1. SYMBOLS AND SAFETY SIGNS USED IN THE MANUAL ............14 1.2. PURPOSE ............................15 2. WARNING AND SAEFTY PRECAUTIONS ................16 2.1. - Page 10 ATC41-ISO20 INSTRUCTION MANUAL 6.7.2. LAYOUT OF SIGNAL CONNECTOR ..................27 6.8. ELECTRIC FAN ..........................27 7. GENERAL CHECKS AFTER INSTALLATION IN THE MACHINE AND PRIOR START-UP ..28 7.1. CHECKING ON THE ELECTROSPINDLE PRIOR TO START-UP ..........28 7.2. CHECKING ON THE ELECROSPINDLE AT THE TIME OF FIRST START-UP ......29 7.3.
- Page 11 ATC41-ISO20 INSTRUCTION MANUAL Figure 1 Main part of the electrospindle ......................19 Figure 2 Typical Teknomotor electrospindle nameplate .................. 20 Figure 3 Air connections ..........................25 Figure 4 Power supply connector ........................26 Figure 5 Electrical sensor connection ......................27 Figure 6 Pin number ............................
- Page 12 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
-
Page 13: Introduction
ATC41-ISO20 INSTRUCTION MANUAL 1. INTRODUCTION 1.1. SYMBOLS AND SAFETY SIGNS USED IN THE MANUAL This manual highlights important instructions or precautions with the following symbols and safety signs (ref. ISO 7010): NOTE: information highlighted by symbols and safety signs is not exhaustive and the whole manual shall be read and applied... -
Page 14: Purpose
TEKNOMOTOR S.R.L. DESIGNED IT. SAFE OPERATION DEPENDS ON THIS. WARRANTY AND LIABILITY UNDER GENERAL SALE CONDITIONS OF TEKNOMOTOR DEPEND ON THIS AND THEY WILL LAPSE IF THE INSTRUCTIONS PROVIDED IN THIS USER MANUAL WILL NOT STRICTLY APPLIED. INSTALL THE ELECTROSPINDLES AS DESCRIBED IN THE FOLLOWING... -
Page 15: Warning And Saefty Precautions
ATC41-ISO20 INSTRUCTION MANUAL 2. WARNING AND SAEFTY PRECAUTIONS Teknomotor S.r.l. does not and cannot know how end users will install their electrospindles. The installer or customer must therefore perform risk assessment specific to each installation and application. It is also the responsibility of the installer to ensure that adequate guards are provided to prevent accidental contact with moving parts. -
Page 16: Risks Specific To Electrospindle Maintenance
3. GENERAL INFORMATION 3.1. PROPER USE OF ELECTROSPINDLE Electrospindles designed by TEKNOMOTOR S.R.L. shall operate as part of a machine. MACHINE DESIGN SHALL CONSIDER THAT FRAME OF THE MACHINE SHALL WITHSTAND THE WEIGHT OF ELECTROSPINDLE FITTED IN AND THE STRESSES CAUSED BY TYPE OF MACHINING TO CARRY OUT. -
Page 17: Range Of Application
The quick replacement of the shaft unit complete with bearings is possible on every models, using the shaft kit. For further information contact the Teknomotor Technical Office. All the electrospindles have a mechanical reaction system that almost completely cancels the axial force of the pistons on the bearing during the tool changing phase. -
Page 18: Technical Specifications

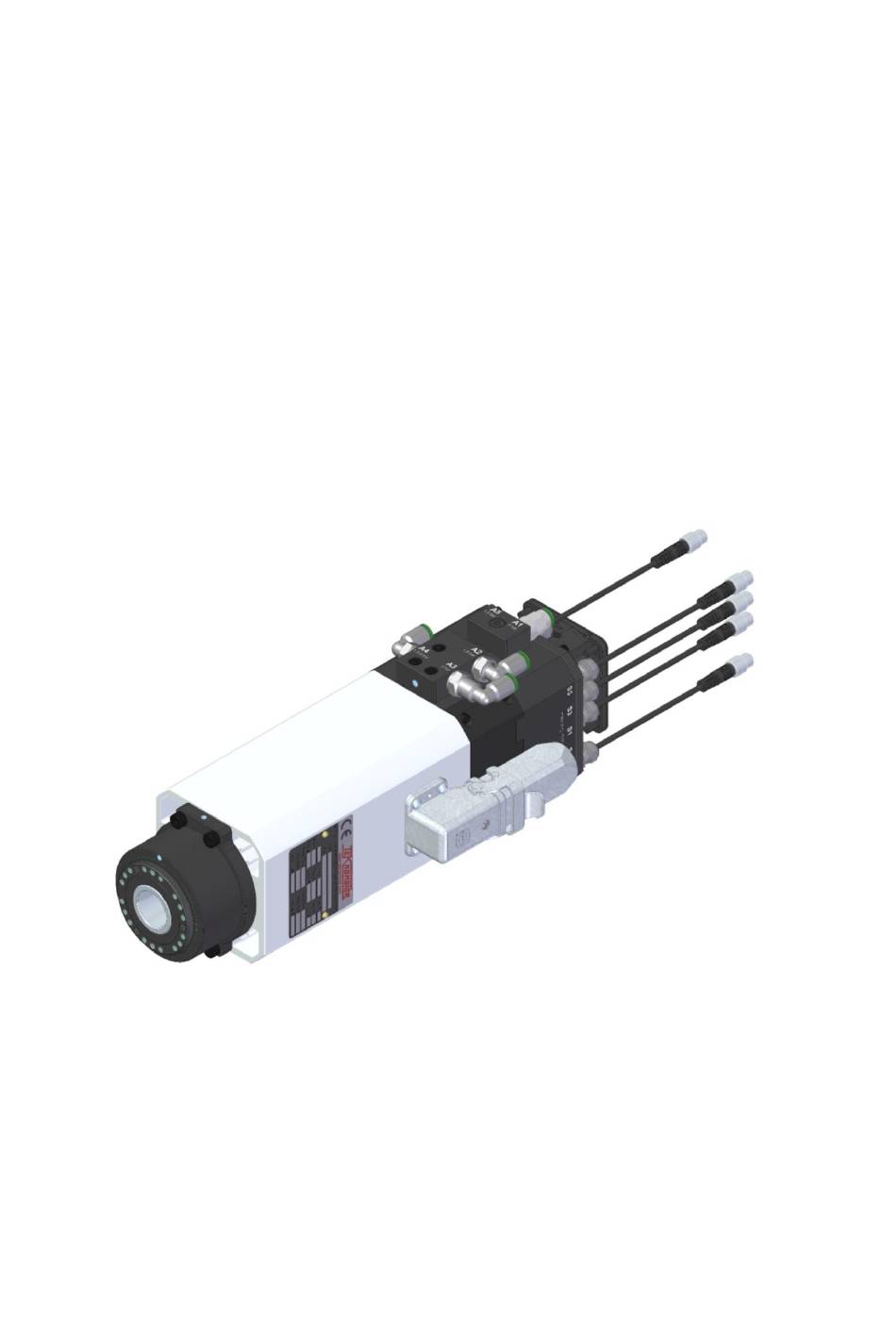

ATC41-ISO20 INSTRUCTION MANUAL 4. TECHNICAL SPECIFICATIONS 4.1. THE MAIN PARTS OF THE ELECTROSPINDLE SIGNAL CONNECTOR ELECTRIC FAN CONNECTOR ELECTRIC FAN COMPRESSED AIR CONNECTORS NOSE PRESSURIZATION SENSORS CARTER POWER CONNECTOR MOTOR NAMEPLATE Figure 1 Main part of the electrospindle DOC.U.A.001.DOCX Rev.02 del 11/11/2019... -
Page 19: Identifyng The Motor Data From The Name Plate
MAX FREQUENCY [Hz] FAN SUPPLY [V] FAN POWER [W] Figure 2 Typical Teknomotor electrospindle nameplate 4.3. GENERAL VIEWS, OVERALL DIMENSIONS AND PERFORMANCE See attached documents. If the document is not available please contact Teknomotor technical office. DOC.U.A.001.DOCX Rev.02 del 11/11/2019... -
Page 20: Trasport, Packaging, Unpackaging And Storage
STORAGE TEMPERATURE: from -5°C to +55°C NON-CONDENSING RELATIVE HUMIDITY: from 5% to 15% The storage time of Teknomotor electrospindle is 12 months. After this time-limit the product must be inspected by an authorized Teknomotor service. If you need more information please contact Teknomotor S.r.l.. -
Page 21: Installation
ATC41-ISO20 INSTRUCTION MANUAL 6. INSTALLATION 6.1. CHECKING FOR DAMAGE Before starting installation, check: ▪ That no part of electrospindle has been damaged during transport and/or handling, ▪ That there is no sign of damp or water inside the connection terminal board, ▪... -
Page 22: Tool Change System
ATC41-ISO20 INSTRUCTION MANUAL 6.3.3. TOOL CHANGE SYSTEM The tool holder magazine must position the cones with a concentricity error between the spindle shaft axis and the tool holder cone axis of 0.2mm. 6.3.4. FIXING ELECTROSPINDLE The electrospindle should be fixed to the slide or the spindle holder support, using M6 screws with a tightening torque of 8Nm. -
Page 23: Pneumatic Connection Diagram
ATC41-ISO20 INSTRUCTION MANUAL Follow the indication below: • If a lubricated air circuit is present in the machine, it should be insulates from the dry air circuit through a non-return valves. • The filters indicated in this section should be installed as near the electrospindle as possible. - Page 24 ATC41-ISO20 INSTRUCTION MANUAL Figure 3 Air connections DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
-
Page 25: Pneumatic Spindle Nose Cleaning
ATC41-ISO20 INSTRUCTION MANUAL 6.5. PNEUMATIC SPINDLE NOSE CLEANING The electrospindle is equipped with a pneumatic system that blows through the shaft in order to clean the cone. The customer has to mount a valve as in figure upon. When the toolholder is released the cleaning valve must be open until the tool holder clamping phase. -
Page 26: Layout Of Signal Connector
ATC41-ISO20 INSTRUCTION MANUAL 6.7.2. LAYOUT OF SIGNAL CONNECTOR Figure 5 Electrical sensor connection Figure 6 Pin number Figure 7 Sensor plug The sensors are PNP NO (normally open) 24V DC. 6.8. ELECTRIC FAN The electrospindle is cooled by a rear mounted electric fan 24 V DC. The fan must be powered up even when the spindle is not operating. -
Page 27: General Checks After Installation In The Machine And Prior Start-Up
Make sure that the maximum frequency value corresponds to that specified on the electrospindle motor data plate (see section 4.2). ▪ The inverter must be programmed with the ratio V/f constant. ▪ Contact Teknomotor S.r.l. if you need to check other inverter parameters. Figure 8 V-f pattern DOC.U.A.001.DOCX Rev.02 del 11/11/2019... -
Page 28: Checking On The Elecrospindle At The Time Of First Start-Up
ATC41-ISO20 INSTRUCTION MANUAL ATTENTION: wrong inverter setting could cause instantaneous damage on the electrospindle. 7.2. CHECKING ON THE ELECROSPINDLE AT THE TIME OF FIRST START- ▪ Check the direction of rotation of spindle shaft corresponds with the NC and with the direction symbol on the body of the electrospindle;... -
Page 29: Operation Of The Electrospindle
8.2. FORECAST AND NON FORECAST USE Teknomotor electrospindles have been designed to be mounted on a machine tool for the chips removal; it is the customer’s responsibility to have any necessary interventions carried out on said machinery in order to render it compliant with Directive 98/37 EC. -
Page 30: Warming Up
At maximum rated speed of the electrospindle, the level of dynamic balancing must be G 2.5 or better (ISO 1940 standard); The balancing must be carried out with the tool-holder assembled (cone, mill, collet, ring nut, tool); The pull stud must be the one supplied by Teknomotor. 8.7. INSTALLATION OF THE PULL STUD ON THE ISO20 CONE Carefully clean the pull stud and the its housing in the ISO20 cone. -
Page 31: General Raccomandation For The Tool Holder Cones
Leave the cone to rest until the thread- blocking liquid becomes solid (see the manufacturer’s instructions). The use of non-original Teknomotor pull stud, or its non-correct installation, may cause the tool-holder accidental release. It is forbidden to use ISO tool-holders not conforming to the condition described above;... - Page 32 ATC41-ISO20 INSTRUCTION MANUAL FOR TOOL-HOLDER WITH CONICAL SEAT FOR ER DIN 6499 If the tool protrusion is longer than 80mm use absolutely extra precision collets. Please check section 8.10 of this manual. FOR TOOL-HOLDER WITH CILINDRICAL SHAFT Unless otherwise requested by the customer, tool-holder with tool engagement key are balanced with the key in place (full key balancing –...
-
Page 33: Tool Mounting - Toolholder With Conical Seat For Er Din 6499
ATC41-ISO20 INSTRUCTION MANUAL 8.10. TOOL MOUNTING – TOOLHOLDER WITH CONICAL SEAT FOR ER DIN 6499 The tool mounting is a careful operation because it define the electrospindle life. Excessive tool run-out causes premature wear of bearings. Before fixing the tool on the tool-holder: •... -
Page 34: Maximum Run-Out And Vibration Values
ATC41-ISO20 INSTRUCTION MANUAL 8.11. MAXIMUM RUN-OUT AND VIBRATION VALUES Check that the tool is aligned with the shaft. Use a dial gauge with high resolution (0.001 mm) to measure the tool run-out. The maximum allowed run-out is 0.02mm @ 100mm far from the collet (L1). If it is not possible to measure the tool run-out because of the tool design, use a vibrometer to check the vibration level of the motor. -
Page 35: What To Do If The Tool Is Bloked On The Piece Being Worked
ATC41-ISO20 INSTRUCTION MANUAL 8.13. WHAT TO DO IF THE TOOL IS BLOKED ON THE PIECE BEING WORKED If the machine goes into emergency mode or stop with the tool blocked on the piece being worked, do not move the spindle along the Z-axis. -
Page 36: Status Modes Of The Electrospindle And Corresponding Outputs
ATC41-ISO20 INSTRUCTION MANUAL Nominal detection distance 0.8mm Max switching frequency 3000Hz Degree of protection IP67 8.14.2. STATUS MODES ELECTROSPINDLE CORRESPONDING OUTPUTS The “ON” condition corresponds to an output equal to the supply voltage of the sensor; The “OFF” condition corresponds to an output equal to 0V. -
Page 37: Trimming Sensors
ATC41-ISO20 INSTRUCTION MANUAL 8.14.3. TRIMMING SENSORS The sensors are already trim in the factory, but if it is necessary to trim the sensors see the following instruction: Plug the circular sensor M8 connector and energize it. Unscrew 4xM4 screws of the sensors cover as in figure below Unscrew the sensor M4 screw a little bit. -
Page 38: Sensor S3 Output (Option)
ATC41-ISO20 INSTRUCTION MANUAL 8.14.4. SENSOR S3 OUTPUT (option) The output of sensor S3 provides information about the speed of the electrospindle. Sensor S3 works by providing two pulse output per revolution of the shaft. See the diagram below. The sensor frequency switching is higher than the frequency of shaft at maximum speed;... -
Page 39: Maintenance
Carry out the operations described in this manual, paying close attention to the instructions given. Only the adjustment and replacement operations with original Teknomotor spare parts described in this chapter are permitted. Any other type of operation in not permitted and will invalidate the product guarantee. -
Page 40: Scheduled Maintenance And Cleaning The Spindle Shaft Tool Housing
ATC41-ISO20 INSTRUCTION MANUAL 9.1. SCHEDULED MAINTENANCE AND CLEANING THE SPINDLE SHAFT TOOL HOUSING Always keep the tool housing in the spindle shaft perfectly clean and free from dust, grease, coolant, oil, metal shavings, and corrosion or lime scale. Dirty housings cause incorrect tool seating, misalignment with respect to the spindle’s axis of rotation, and tool slippage. -
Page 41: Protecting The Conical Seat In The Spindle Shaft
Clean the grill of the cooling fan and remove any objects blocking the airways and control the fixing screws. The bearings are lubricated for life and do not require greasing. Component parts must be removed and refitted only by qualified personnel authorized by Teknomotor S.r.l. Only replacement of parts with original Teknomotor spares and the subsequent adjustment of the newly fitted parts is authorized. -
Page 42: Troubleshooting
ATC41-ISO20 INSTRUCTION MANUAL TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION • • Unbalanced tool. Balance the tool. • • Incorrectly fitted tool. Check that the tool is correctly • fitted. Excessive cutting parameters. • • Excessive vibration during Adjust (reduce or increase) the Incorrect inverter settings. - Page 43 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
-
Page 44: Appendix: Atc41 Drawings And Power-Torque Curves
ATC41-ISO20 INSTRUCTION MANUAL APPENDIX: ATC41 DRAWINGS AND POWER-TORQUE CURVES DOC.U.A.001.DOCX Rev.02 del 11/11/2019... - Page 45 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
- Page 46 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
- Page 47 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
- Page 48 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
- Page 49 ATC41-ISO20 INSTRUCTION MANUAL DOC.U.A.001.DOCX Rev.02 del 11/11/2019...
