Summary of Contents for Stand Up Desk Store SUDEZ120F-BK/BK

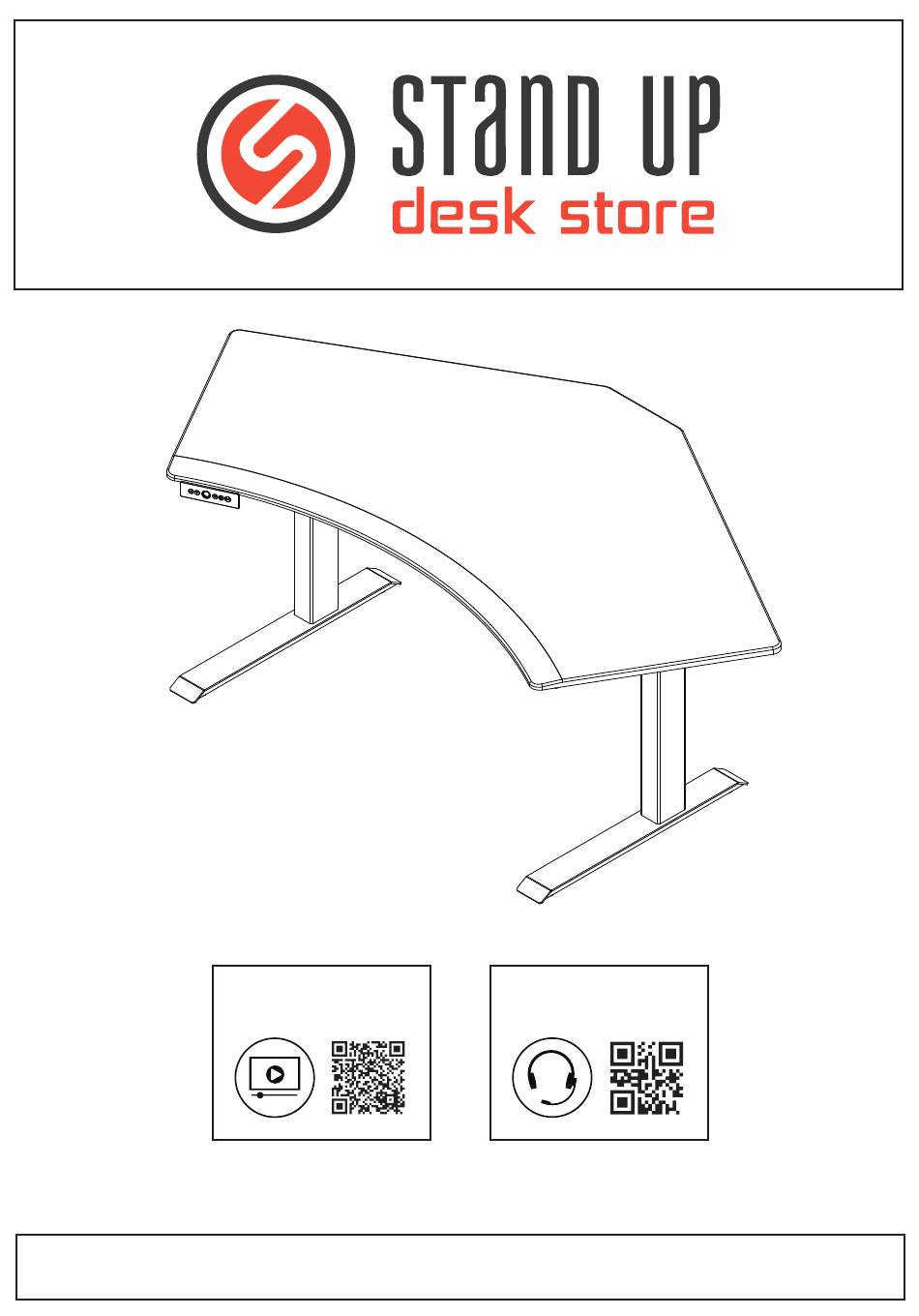

- Page 1 Prefer video instructions? Questions or concerns? View our video page! Contact us directly! 1-855-843-7920 CustomerService@StandUpDeskStore.com standupdeskstore.com/electric-desk-assembly-videos SUDEZ120F-BK/BK...
- Page 2 Height range: 640-1290 mm / 25.2 x 50.8 in Weight capacity: 100 kg / 220 lbs Features: Easy assembly, triple stage, dual motor, C-frame, electric, L-shaped, two memory position handset + home, expandable frame Notes: Desktop and casters sold separately, images may vary from purchased desk HANDSET “Optimal height”...
- Page 3 MANUAL RESET 1. Make sure all cables are connected. 2. Retry handset. If issue continues... 1. Disconnect power cable for 3 minutes. 2. Reconnect power cable. 3. Retry handset. ERROR CAUSE SOLUTION Motor issue Disconnect power cable for 3 minutes. Reconnect power cable. If error continues, motor may be defective.
- Page 4 PARTS INCLUDED NOT TO SCALE A QTY: 1 B QTY: 1 C QTY: 1 D QTY: 2 E QTY: 1* Ships separate box F QTY: 1 G QTY: 1 HARDWARE INCLUDED NOT TO SCALE, COLOR MAY VARY 1 QTY: 4 2 QTY: 8 3 QTY: 12 4 QTY: 2...
- Page 6 Be mindful of cable while lifting up leg Be mindful of cable while lifting up leg...
- Page 7 1 QTY: 4 M6-12 Tighten pre-inserted bolts...
- Page 8 2 QTY: 8 M8-20 Loosen set screws 1 turn each to expand desk frame.
- Page 9 3 QTY: 12 Note: Tighten screws only after all have been inserted. M6-16 Retighten set scews...
- Page 10 4 QTY: 2 ST3.5-13 Alternate mounting holes...
- Page 11 With assistance, flip desk over...
- Page 12 Keep children away from desk - especially handset, controller / powerbrick, legs, or cables. There is a risk of electric shock or serious injury. Do not open any componements - especially handset, controller / powerbrick, legs or cables. There is a risk of electric shock or serious injury.
