Cube Residential Misting System - 55 gallon
Page 1 of 9
Cube Residential #11745

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pynamite Cube Residential Misting System and is the answer not in the manual?

Questions and answers

Summary of Contents for Solar Insect Pynamite Cube Residential Misting System

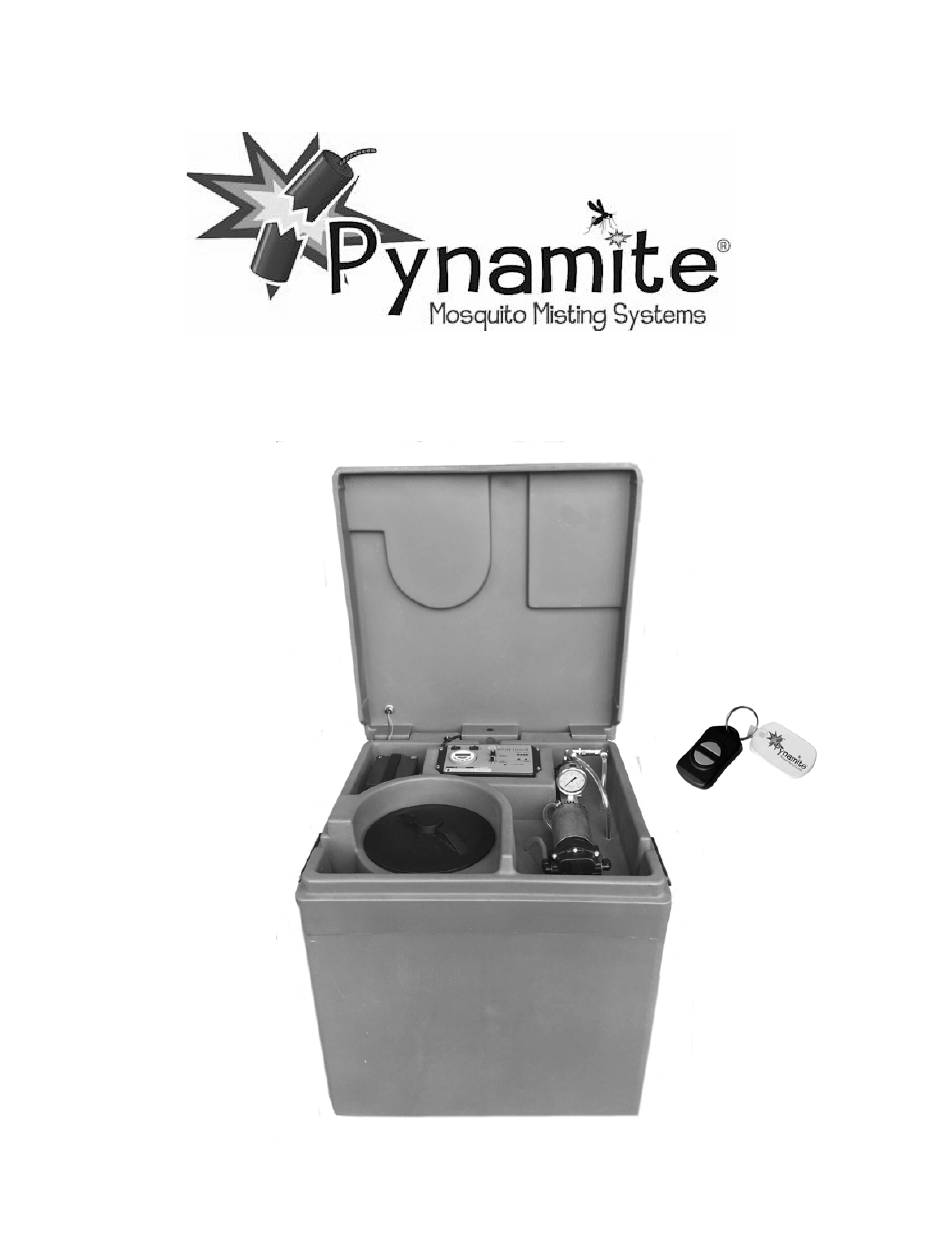

  • Page 1 Cube Residential Misting System - 55 gallon Page 1 of 9 Cube Residential #11745...

  • Page 2: Before Installation

    CONTENTS: Remote Control If you should experience any difficulties, issues or problems while Battery Charger assembling or operating your system, contact customer service at Louvers (2) & Screws (8) info@pynamite.NET or 713-955-2101 or 866-986-5586. In-line Nozzle Circuit Filter ================================================================================================== BEFORE INSTALLATION 1.
  • Page 3 G. When finished setting 1 0N & 1 0FF, Press TIMER 2 --:-- will appear on the LCD screen. H. Repeat programming procedure above to complete additional ON/OFF misting cycles if desired. When finished programming mist cycles, press CLOCK. NOTE: To disable a scheduled misting cycle, set the OFF time to the same as the ON time and the system will not mist that cycle.
  • Page 4 3. WIRE RECESS - Insert the two pin connector from the Battery Charger in through the center top opening from the back of the Cube, and attach it to the mating two pin connector coming off the Battery. Plug the Battery Charger into a 120v outlet.

  • Page 5: Controller Functions

    ================================================================================================== CONTROLLER FUNCTIONS 1. POWER TOGGLE - main Power button. The unit will only operate if this is in the ON position. NOTE: When charging the system either though the Battery Charger or optional Solar Panel, Power does not need to be ON. 2.

  • Page 6: Remote Control

    ================================================================================================== INSTALLING THE LOUVERS While the Lid on the Cube is closed; center the Louver over the Air Hole on each side, just under the lid. Do not attach the louvers to the lid. Make sure the Louvers face downward. Attach the Louvers with the provided stainless screws. Tighten just until snug. CAUTION: Do not over tighten the screws.
  • Page 7 • Press the Start Mist button and after the agitation cycle ends the mist cycle will begin and the Pressure Gauge should read between 175-200 psi. • If the pressure does not get to 175-200 psi, there could be several reasons: o Tubing is loose –...
  • Page 8 ================================================================================================== WINTERIZING If possible, plan for your Cube to be close to empty as the winter season commences. You will need to empty the Cube for the winter. Be sure to dispose of any remaining liquid properly according to the instructions on the label of your misting concentrate.

  • Page 9: Warranty

    ================================================================================================ WARRANTY Lovett Industries, LLC dba Solar Insect Systems (SIS) warrants this Product, to be free from defects in material and workmanship as follows: • For a period of three (3) years from the date of purchase (whether or not actual use begins on that date), SIS will repair or replace defective electronic parts, and for a period of one (1) year SIS will repair or replace defective Battery and/or Battery Charger and standard Pump with new or refurbished parts, at its option, at no charge.
