LDS IGBT Series Manual

COMPACT INVERTER
IGBT
1PHASE INVERTER
WITH 150% OVERLOAD PROTECTION

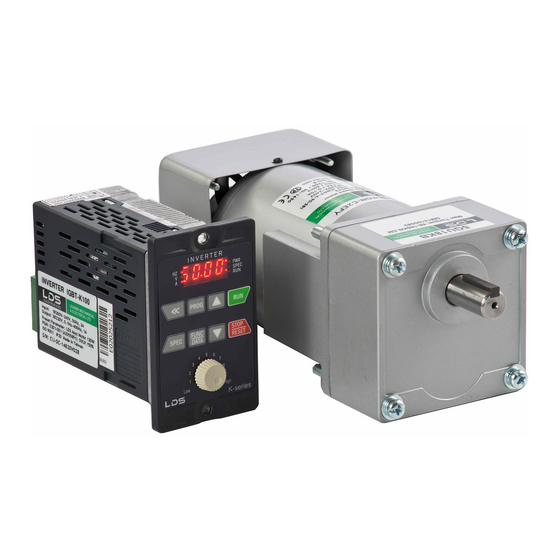

The compact IGBT inverter is especially advantageous for standard application by
virtue of its user friendliness. It offers simple and safe operability, energy saving,
compact design as well as superior performance. The inverter is use in numerous
application such as conveyor drives, feeders, machining tool and door drives. It is
compactible with Unit Type AC Speed Controller (US series).
MODEL NO
Motor Rating (maximum)
Rated Output Capacity
Rated Output Current
Rated Output Voltage
Range of Output Frequency
Power Source Voltage
Input Current
Permissible AC Power Source Fluctuation
Overload Protection
Cooling Method
Protection Level
Dimension
Weight
Options
Remark

OPERATION PANEL

Function Key
RUN Start
STOP
Stop • Reset
RESET
 Up • Down

Enter or Exit
PROG
the Function Mode
FUNC
Set • Switch
DATA
Monitor Mode
Switch Function •
<<
Group • Number
Special Function
SPEC
Key
SERIES
IGBT - K100
25W ~ 120W (1/6HP)
0.4kVA
1 Amp
AC 3 Phase 220V (3Ø 220V)
AC 1 Phase 200V~240V (1Ø ), 50Hz/60Hz
2 Amp
200V ~ 240V, 50Hz/60Hz, ±5%
150% of rated output current for 1 minute
Body 52 x 127 x 60mm • Mounting Frame: 60 x 100 x 3mm
With Braking Transistor / Without Braking Transistor
Product dimension and mounting compatible with
US Type Speed Controller (US61-US62 / US71-US72)
IGBT - K200
25W ~ 200W (1/4 HP)
0.6kVA
1.5 Amp
0.1Hz ~ 400Hz
3 Amp
Self-cooling
IP20
0.4KG
Status Display I
Indicator : Frequency • Voltage •
Current • Operation
Status Display II
Power Indicator •
SPEC • START Key Indicator
Main LED Display (high brightness)
Display of Setting & Error Code
Potentiometer / Knob
Fast Setting and Input
P 1
