Summary of Contents for JMQ Fitness SP6612

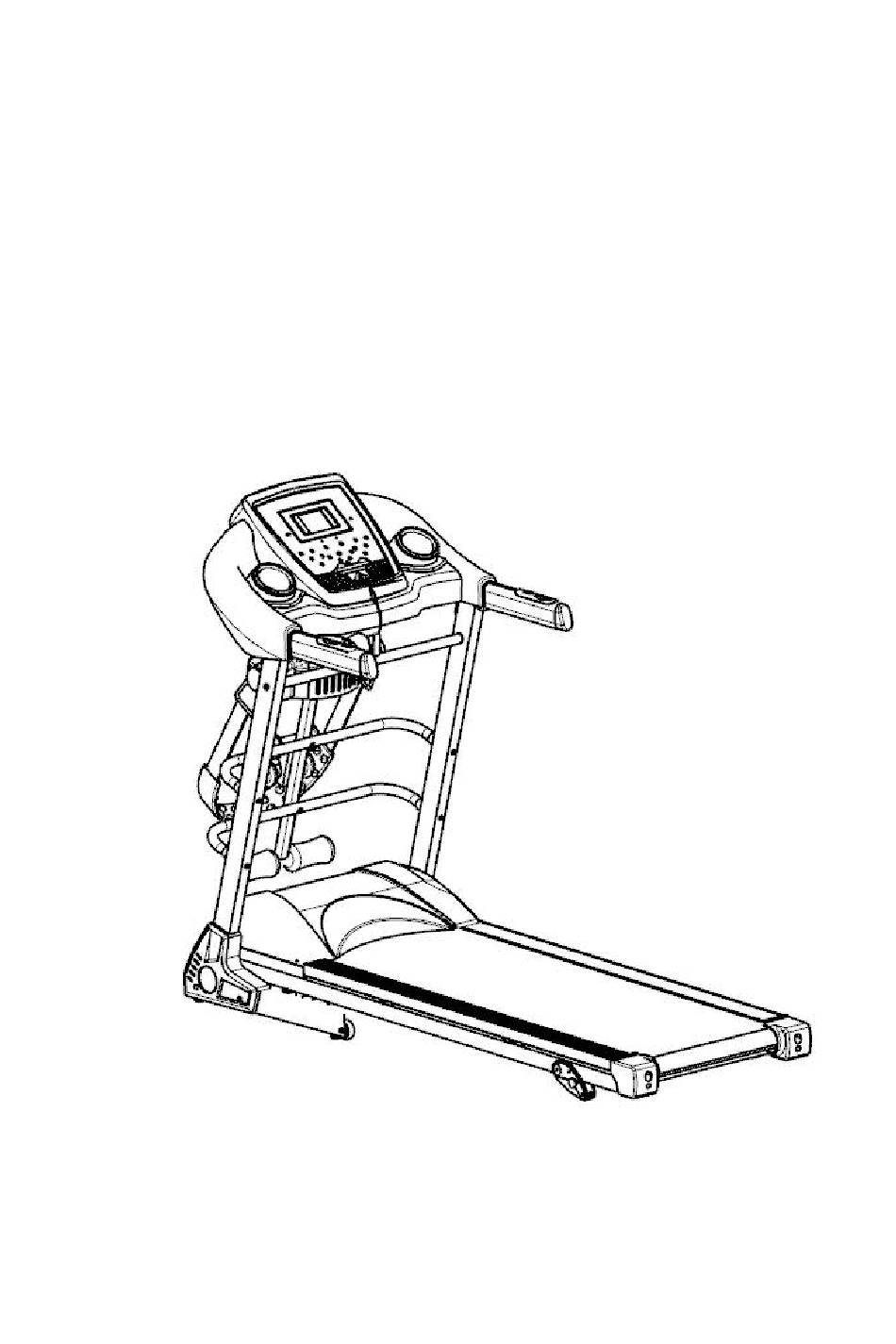

- Page 1 Luxury electric running machine instruction User’s Manual...
-
Page 2: Table Of Contents
Orders ----------------------------------1 一、 Security considerations ----------------------------------2 二、 Product introduction -------------------------------------5 三、 Installation guide -----------------------------8 四、 Foiding/Expansion/Movment --------------------------------8 五、 Product maintenance -----------------------------------------10 六、 Fitness guide ------11 七、 Electricity run common faults and processing methods -------------------------------- 12 八、 Service commitment... - Page 3 The machine folding matters needing attention: ● The machine after assembled, to move the body must be set up. It moves, determine the treadmill is folded, grab handle, lean back running machine, can use at the base of the wheels for movement. Low down the machine: use walking living body tail, and then the corresponding position (below) with the feet light play, no support after the machine automatically.
-
Page 4: 一、 Security Considerations
Security considerations 一、 Helpful hints: because technology continues to improve, if there is any changes to the final explanation right belongs to the company. Warning: Please read this manual carefully before using, please comply with them, to ensure safety. The machine moving or before shipment, be sure to lock the treadmill to fold and confirm can be carried out only after tight, and in the process of a shipment switch, do not touch, folding machine is strictly prohibited in the state of not to fold to luck or mobile. -
Page 5: 二、 Product Introduction
Product introduction 二、 technical standard ●speed area：0.00-99.99(km) ●voltage：220V (50Hz) ●speed：1-14 (km/h) ●time：00:00-99:59 (min:s) ●power：1500W(2.0HP) 1, 2.0 HP low noise dc import motor, USES 220 v / 50 hz power supply. 2, blue LCD liquid crystal display. 3, has eight kinds of built-in function exercise program. 4, hand heartbeat measurement device, take to master the workout. - Page 6 display Electronic watch handrail massager riser U-tube Hook foam Motor cover Protective shell Protection strip Running belt base Moving wheel Technical parameter: Max load weight 110kg Packing size:1680*720*290(mm) outline dimension Expand size：1740*680*1220(mm) 1260*450(mm) Effective running area power 2.0HP speed 1-14 km/h function Running 、sprain back、sit ups,massage.
- Page 7 Loading list： Loading list Accessories name number remarks Serial number Screw:M8×70 Screw :M8×50 Screw :M8×45 Screw : M8×15 Screw :M5×10 M8 nut 2 pcs/gasket10pcs Multifunctional screwdriver/5mm、6mm Allen wrench in each one 13 to 15, open end wrench a/ oil...
-
Page 8: 三、 Installation Guide
installation guide 三、 Installation hint: to eliminate the installation error, please do not fully tighten the bolt of each step, such as the machine after the installation is complete, then tighten all bolts completely ！ riser 1、 2、Electronic watch: using M8 2 x 15 screws, ●Upward of riser and electronic part, the front and washers through the arrow shown in with the M8 4 x 15 screws and washers, two... - Page 9 Electronic watch button function ⑥ ③ ④ ② ① ⑤ start/stop ②stop ③program ④mode ⑤speed +/- ⑥speed direct (一) function： The LCD window shows the following features: Time, speed, distance, calories, and heart rate Function keys: A: the program, model, stop, start, speed, speed reduction. B: speed quick keys: 3, 6, 9, 12 km/H.
- Page 10 2.mode of the countdown to pour meter distance mode, pour meter calorie mode to normal mode,..Manual operation mode: the electricity directly into the run mode or manual mode, add and subtract, the model can be used to speed the direct key control speed, the system automatically stops running to 99 minutes。...
-
Page 11: 四、Foiding/Expansion/Movment
四、FOIDING/EXPANSION/MOVMENT FOIDING Right hand hold a treadmill to elevate, when heard "da" indicates that the body has already,Should be locked in position, folding。 EXPANSION Click on the gas spring with the foot to gently, right hand holding the treadmill gently pressing down on them, Automatic running slowly fall to the ground, namely。... - Page 12 Low add lubricant step: (as pictured) 1. Stop running belt, the folding machine; (2) take the frame on the back of the run wave;Took oil can reach as far as possible into the run middle 3. Run an elastic adjustment All the running machine in the factory before and after installation to adjust running belt, but after using a period may also appear relaxation phenomenon.Such as: the user to pause the phenomenon of sliding at running.When appear this phenomenon, in a half circle clockwise, synchronous adjustment to run around with...
-
Page 13: 六、 Fitness Guide
guidance of a doctor。 ●Shut down immediately after using running mechanical and electrical source。 ●Around the treadmill should be placed in a more spacious place, do not put sundry, guaranteed the safety of the 2 m * 1 m area ●Children can't use the treadmill alone, if you use should be use under adult supervision。... -
Page 14: 七、 Electricity Run Common Faults And Processing Methods
Electricity run common faults and processing methods 七、 problmes reasons maintenance methods a、Electronic communications 1、Rewiring or replace the communication line contact undesirable line b、Electronic watch fault 2、change new one c、controller failure 3、changed new one a、Explosion-proof rushed to protect b、Whether the positive and negative line access of the motor 1、Main line connection, rewiring... -
Page 15: 八、 Service Commitment
八.service commitments 1, product warranty provisions This machine is one year free warranty machine series products, guarantee the dc servo motor for six years. 2, the warranty scope In the provisions of the warranty period, under normal use, products affect the normal function of fault. 3, one of the following does not belong to the warranty scope Low artificial damage Damage to force majeure factors, natural disasters such as earthquakes...
