Summary of Contents for Axon Cerebrum CGP-4848
- Page 1 CEREBRUM CGP-4848 Cerebrum 1U General Purpose Interface unit Operation manual...
- Page 2 ● NEVER operate this product in an explosive atmosphere. Warranty: Axon warrants their products according to the warranty policy as described in the general terms. That means that Axon Digital Design BV can only warrant the products as long as the serial numbers are not removed.
-
Page 3: Table Of Contents
Table of Contents Introduction to Cerebrum An Introduction to Cerebrum Key Cerebrum features Configuration Monitoring workflow & events The CGP-4848 control panel Introduction Features Installation Connecting the D-sub connectors General Purpose Inputs General Purpose Outputs GPI input connectors GPI output connectors Configuration Ip settings NOTE... -
Page 5: Introduction To Cerebrum
Cerebrum provides comprehensive tools to configure,monitor and maintain not only the complete range of Axon products, but also a wide variety of other devices. The result is that you, and limitless numbers of users, can take total control over multiple and complex routines. -
Page 6: Configuration
Configuration Within its clear, intuitive interface Cerebrum provides you with the tools to configure your workflow with speed and ease. Each device is represented by one, or more, graphical dialogue interfaces, which are shown automatically in the Control view when the device is selected. -

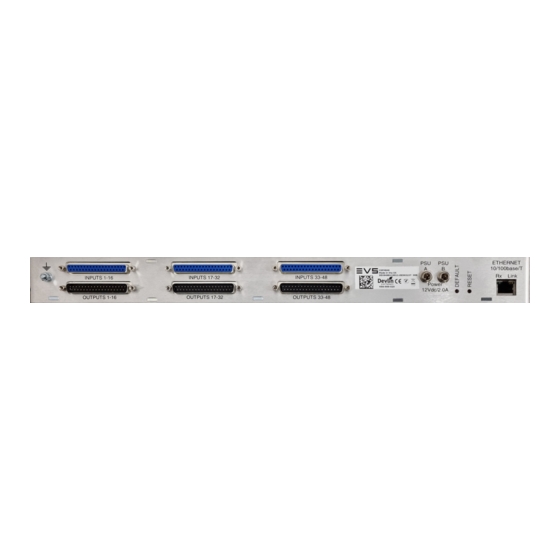

Page 7: The Cgp-4848 Control Panel
Cerebrum server over either a local or wide area network. The unit can be configured to use either DHCP or manually assigned IP addresses. As with other Axon devices when used in manual IP assignment mode the address, sub-net mask and gateway can be assigned using the configuration mode of the panel. -
Page 8: Installation
Installation Connecting the The connection details of the 37 way D type connectors are shown in the tables on the next page. Please make sure the cables are D-sub connectors properly soldered by trained personnel. General Purpose To activate a GPI input on the unit a voltage drop (4.5V-13Vdc) has to be present across the input (A &... -
Page 9: Gpi Input Connectors
This is the pin assignment of the 37 pin ‘D’-type female (socket) GPI input connectors connectors Inputs 1-16 Inputs 17-32 Inputs 33-48 SIGNAL SIGNAL SIGNAL Input 1A Input 17A Input 33A Input 2A Input 18A Input 34A Input 3A Input 19A Input 35A Input 4A Input 20A... -
Page 10: Gpi Output Connectors
This is the pin assignment of the 37 pin ‘D’-type male (plug) GPI output connectors connectors Outputs 1-16 Outputs 17-32 Outputs 33-48 SIGNAL SIGNAL SIGNAL Output 1 NO Output 17 NO Output 33 NO Output 1 NC Output 17 NC Output 33 NC Output 2 COM Output 18 COM... -
Page 11: Configuration
Please do not press the ‘Enter Bootmode’ button in the NOTE above displayed screenshot, unless explicitly instructed by Axon Support. When the Current IP Address field is correct, press the ‘Connect’ button to read back the current settings from the unit. If the... -
Page 12: Adding The Cgp-4848 To The Cerebrum System
Adding the CGP- On the correct IP address has been given, the device will need to be added to the Cerebrum system in order for it to be used within the 4848 to the application. Cerebrum system In order to use a CGP-4848 on your Cerebrum system you will need to be running Cerebrum V1.07 or later. - Page 13 When the unit is on-line and selected in the System View the Device View will allow control of the GP outputs of the unit as shown below. The Monitoring tab, in the same way as all other devices within Cerebrum, shows a historical log of the status events for this unit along with the status of the GP inputs and PSU’s.
-
Page 14: Configuring Functionality
The CGP-4848 is a ‘generic’ device in the system and can be used Configuring by the Cerebrum cost options (Panel Viewer, Tally Manager) to functionality trigger GP outputs and any event within the Cerebrum system. The CGP-4848 device can be used as a basic status detection for third party devices, for this to be used the Status severities of the unit will need to be configured using the Generic Device Status Severities dialog which can be found in the Configuration->Status... -
Page 15: Reprogramming The Cgp-4848
7 Reprogramming the CGP-4848 Enter Bootmode The firmware on the unit can be reprogrammed via an Ethernet connection by using a web page available when the unit is in its bootloader mode. To put the unit into its bootloader mode make sure the unit has been removed from the system, the quickest and easiest way to do this is to change the IP address of the device in the system view to another IP address temporarily. - Page 16 To upgrade the firmware supply the user name (‘axon’) and the password (‘Cerebrum’) and press the Login button. The browser page will then prompt for a firmware file with the Browse button. If you locate the required file and then press the Upload button the panel will then reprogram itself.
-
Page 17: Specifications
8 Specifications Dimensions 45mm (1.73”) (1RU) Height 484 mm (19”) Width (including front panel) 195mm (7.67”) Depth (including front panel and DC connector) 450 mm (17.71”) Width (excluding front panel) 175mm (6.88”) Depth (excluding front panel, including DC connector) Weight Weight (excluding power adapter) ~2.5 kg Power...
