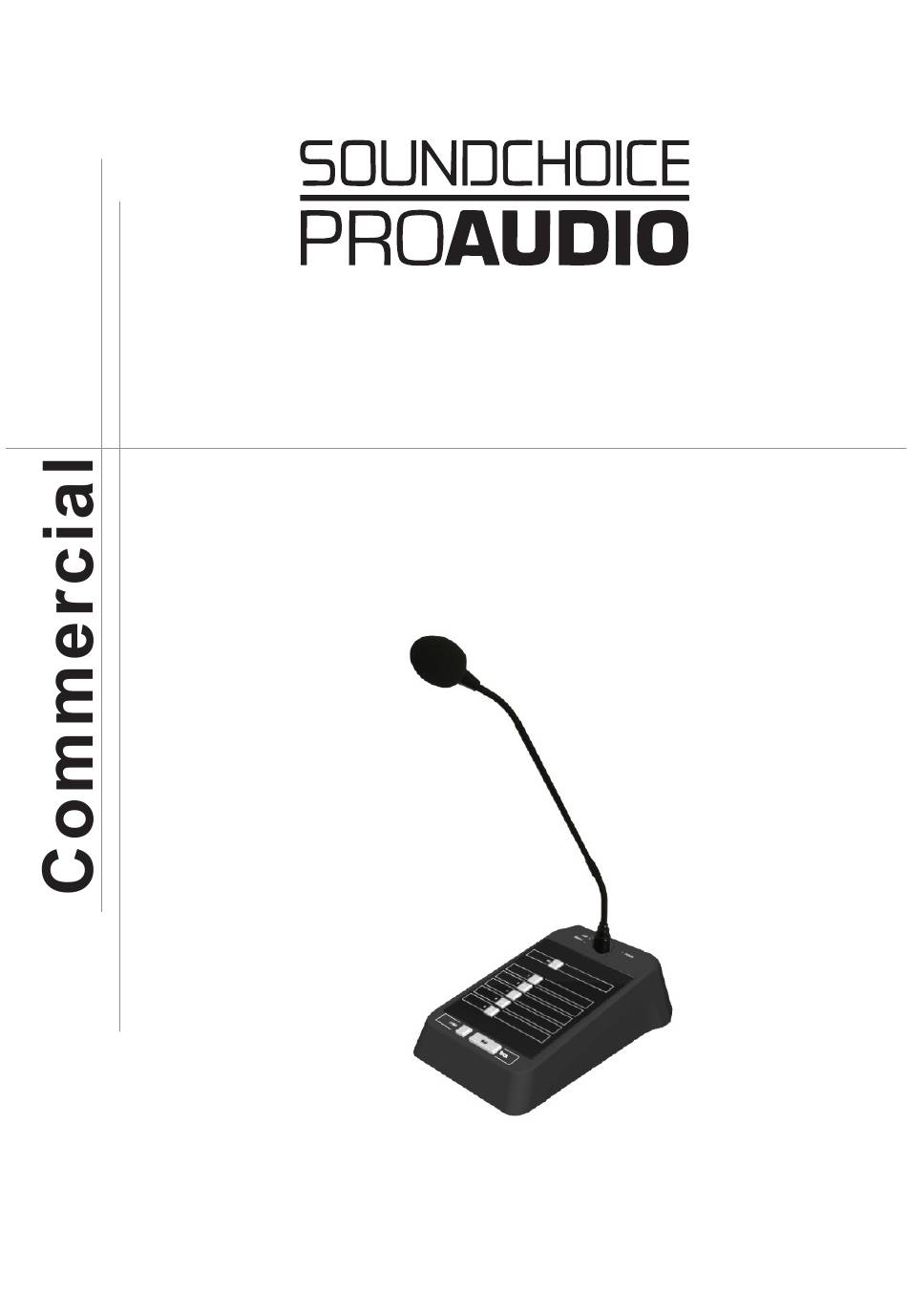

5-ZONE PAGING MICROPHONE STATION
MODEL:RWP5
Warning:Before attempting to connect,operate or adjust this Paging Station,
please read these instructions completely and carefully and save this Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RWP5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soundchoice PROAudio RWP5

  • Page 1 5-ZONE PAGING MICROPHONE STATION MODEL:RWP5 Warning:Before attempting to connect,operate or adjust this Paging Station, please read these instructions completely and carefully and save this Manual...
  • Page 3: Table Of Contents

    Table of Content Table of Content Introduction ------------------------------------------ 2 Features -----------------------------------------------2 Controls------------------------------------------------ 3 Connections -----------------------------------------4 Operations------------------------------------------- -4 Block Diagrams -------------------------------------- 5 Specifications -------------------------------------- -6...
  • Page 4: Introduction

    Introduction Welcome Congratulation and thank you for the purchasing RWP5 microphone paging station. These paging stations are designed to provide and to produce the best and highest quality audio at an affordable price. We wish you great enjoyment and satisfaction when using your paging station for your installation.
  • Page 5: Controls

    Controls Controls FRONT PANEL Indicators(power,clip and signal) Gooseneck microphone input connector All zone selector Individual zone selector Pre-announcement chime Announcement (talk) [ Figure 1.1 Front panel ] Rear Panel Locking switch Rj45 for power ,control and audio signal Output level control [ Figure 1.2 Rear panel ]...
  • Page 6: Connections

    Connections/Operations Connections RWP5 should only be connected to MA Series mixer amplifier . RJ45 PIN assign is as follows. 1.+ 15 Volts 2.Ground 3.- 15 Volts 4.Data - 5.Data + 6.Ground 7.Signal + 8.Signal - [ Figure 2.1 UTP CAT-5 cable connection ] Operations 1.Press zone selection button Z1 to Z5 for individual zone announcement.
  • Page 7: Block Diagrams

    Block diagram Block diagram...
  • Page 8: Specifications

    Specifications Specifications Performance -60dB ± 3dB / 600Ω Balanced Input Sensitivity Frequency Response 45Hz ~15kHz / ±1dB Signal to Noise Ratio Less than 90dB Rated Output Level 0dB / 600Ω Balanced Less than 0.1% Total Harmonic Distortion(THD) at 1kHz rated output 0°~40°C at 95% humidity Operating Temperature/Humidity at non-condensing Construction...
