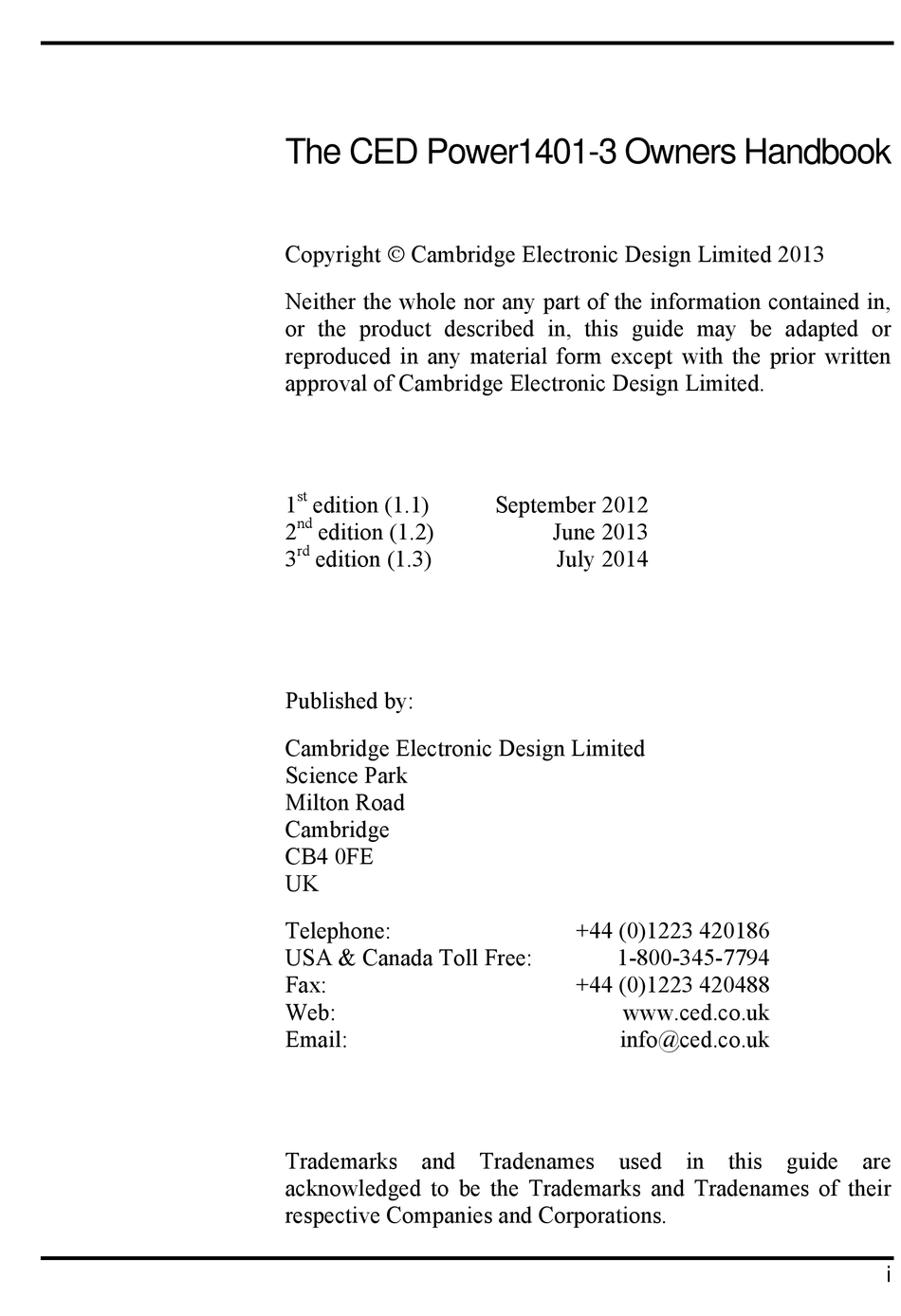

The CED Power1401-3 Owners Handbook
Copyright Cambridge Electronic Design Limited 2013
Neither the whole nor any part of the information contained in,
or the product described in, this guide may be adapted or
reproduced in any material form except with the prior written
approval of Cambridge Electronic Design Limited.
st
edition (1.1)
1
nd
2
edition (1.2)
rd
3
edition (1.3)
Published by:
Cambridge Electronic Design Limited
Science Park
Milton Road
Cambridge
CB4 0FE
UK
Telephone:
USA & Canada Toll Free:
Fax:
Web:
Email:
Trademarks and Tradenames used in this guide are
acknowledged to be the Trademarks and Tradenames of their
respective Companies and Corporations.
September 2012
June 2013
July 2014
+44 (0)1223 420186
1-800-345-7794
+44 (0)1223 420488
www.ced.co.uk
info@ced.co.uk
i
Advertisement
Table of Contents
Summary of Contents for CED Power1401-3
- Page 1 The CED Power1401-3 Owners Handbook Copyright Cambridge Electronic Design Limited 2013 Neither the whole nor any part of the information contained in, or the product described in, this guide may be adapted or reproduced in any material form except with the prior written approval of Cambridge Electronic Design Limited.
-
Page 2: Table Of Contents
Table of contents Publishing information..............i Preface Table of contents................ ii Typographic conventions............iv Use of symbols................iv Potential for Radio/Television interference........v Power1401-3 vs Power1401 mk II..........vi Life support ................vi Fast installation guide ..............1 Getting started Introduction.................2 with the Confidence check................3 Power1401-3 Installing the Power1401-3 ............4 Storage and operating environment ..........4... -
Page 3: Table Of Contents
Cleaning the Power1401 ............43 Overview .................. 44 Trouble shooting Stand-alone test ................ 44 LED diagnostic patterns ............45 Calling the CED Help Desk ............. 46 Index ......... Error! Bookmark not defined. Index User notes ................. 50 Specification ................51 Specification EC declaration of conformity ........... -
Page 4: Typographic Conventions
EU directives on safety and EMC emissions; see the certificate reproduced on page 52 Observe precautions against electrostatic discharge The CED Power1401-3 is lead-free and conforms to the EU RoHS directive The CED Power1401-3 is subject to the EU WEEE regulations... -
Page 5: Potential For Radio/Television Interference
Re-orient the receiving antenna Re-orient the position of the Power1401-3 with respect to the receiver Move the Power1401-3 away from the receiver ... -
Page 6: Life Support
General information The Power1401-3 is the evolutionary successor to the Power1401-3 vs Power1401 II. Upgrades and enhancements include: Power1401 II Completely redesigned computational core using the Marvell 78100 microprocessor Circuit board designed with provision for dual-core operation using the Marvell 78200 microprocessor ... -
Page 7: Fast Installation Guide
Install the software first: either your CED application Step 1 or the CED 1401 installation CD. CED software currently runs on Windows XP, Vista, Windows 7, or Windows 8. If you have an earlier version of Windows, it will need to be upgraded... -
Page 8: Introduction
Getting started with the Power1401-3 This manual will guide you through the initial check and Introduction installation of your Power1401-3 (hereafter referred to as the Power1401 except where it differs from the previous model). It introduces you to the external inputs and outputs, and expansion options. -
Page 9: Confidence Check
PowerSolve PSE60-312 shown be disconnected from the power brick. Your Power1401 was soak-tested at CED before shipping. To Confidence pass the test, a Power1401 must not generate a single error in at check least 96 hours of testing. The next procedure checks that the 1401 hardware is in the same state as it left the factory. -
Page 10: Installing The Power1401-3
Following sections deal with expansion options, maintenance and troubleshooting. The Power1401-3 must be kept in the temperature range of 5° Storage and to +50° Celsius, at a humidity of less than 95% saturation, non- operating condensing. -
Page 11: Application Software
, free of charge) and your own computer www.ced.co.uk programming manuals. We support the 1401 family (including the Power1401-3) under Operating platforms Windows XP, Vista, Windows 7, and Windows 8. CED application software such as Spike2 or Signal is installed Installing CED from a CD. -
Page 12: Installing The Usb Interface
Installing the USB interface This section describes how to install a Power1401-3 on a Overview Windows PC, communicating via a USB port. To install the Power1401 you will need: A Power1401 A power brick and mains cable A USB data cable ... - Page 13 , indicating that a device is present. Click on this to display the ‘CED 1401 USB interface’ icon. Among the tabs revealed when this is opened, tab provides overall device status, and allows for General enabling/disabling the device.
- Page 14 The ‘1401 interface’ icon will be on a node with a boxed , indicating that a device is present. Click on this to display the ‘CED 1401 USB interface’ icon. Among the tabs revealed when this is opened, the tab provides overall General device status, and allows for enabling/disabling the device.
-
Page 15: Test Software Installing Test & Diagnostics
This software is installed automatically at the same time as the driver, when is run. setup.exe CED provides you with 1401 support for Windows in a CD. It can also be downloaded from our website, www.ced.co.uk To install from CD under any supported operating system: ... -
Page 16: Windows Diagnostics
TRY1401 is the principal test program for users. It is also TRY1401 installed as a utility in the program folders of CED applications such as Spike2 and Signal. It simulates a typical 1401 application program and exercises the host computer and Power1401 in the same way. - Page 17 Installing test & diagnostics To access the summary of hardware and firmware information 1401 Info… shown on the TRY1401 screen on the previous page, select File, 1401 Info… from inside TRY1401. If you wish to test or re-calibrate the analogue hardware, or test ADC &...
-
Page 18: Application Running The Power1401 With Spike2
Spike2 respiration would be typical tasks. This application example, and the Signal application example below, make use of the CED 1902 isolated pre-amplifier. Spike2 sampling ECG, with 1902 control panel... -
Page 19: Running The Power1401 With Signal
Application software: Spike2 & Signal Signal is optimized for the analysis of sweep based information, Running the where a sequence of data is recorded repetitively, often Power1401 with synchronized to a repeated stimulus. The classic example of Signal this is evoked-response recording; here segments of brain activity are correlated with recurrent stimuli, in order to extract responses buried in the noise. -
Page 20: Inputs And Outputs
Input and outputs The following points deal with physical and electrical aspects General of Power1401 connectors, rather than their electronic function. The outer sleeves of the front-panel BNCs, and the metal shells Mains earth of the various rear-panel connectors, are robustly connected to the metalwork of the case and, via the earth pin of the DC inlet and the earth leads of the power brick, to mains earth. -
Page 21: Waveform Input
Inputs and outputs There are sixteen waveform input channels on a standard Waveform input Power1401. Eight channels are available through front-panel BNC connectors, labelled , and eight through the ADC Inputs rear-panel D-socket. All inputs pass Analogue Expansion through ferrite chokes that block high-frequency noise. The working input range of the ADC (and the DAC outputs) is ±5 V or ±10 V, as selected in the TRY1401 utility;... - Page 22 Inputs and outputs The front-panel waveform input channels each have an ADC LEDs associated yellow LED. They are controlled by software command and typically turn on when the channel is in use. The trigger-input LED flashes or blinks on detection of an Trigger LED active-edge transition at the input.
-
Page 23: Waveform Output
Inputs and outputs There are four waveform output channels on the Power1401 Waveform output Two are on BNC connectors on the front panel, labelled (Digital to Analogue Converters), and two on the DAC Outputs rear-panel D-socket All outputs pass Analogue Expansion through ferrite chokes that block high-frequency noise. -
Page 24: The Rear-Panel Analogue Connector
Inputs and outputs The rear-panel analogue connector is a 44-way high-density The rear-panel D-socket. On an unexpanded Power1401 it accommodates analogue ADC input channels 8 - 15 and DAC channels 2 and 3. (For connector rear-panel channel numbering on expanded units, see below.) The ten signals are on the bottom row of the D-socket, and each has its own ground return on the top row. -
Page 25: Clocks
Inputs and outputs The Power1401 has five clocks, used for timing and counting Clocks external pulses (clocks 0 and 1), generating general-purpose timing pulses (clock 2), controlling waveform output (clocks 3 and 4) and controlling the waveform input sampling rate (clock 4). - Page 26 Inputs and outputs The frequency synthesizer is an internal device capable of Frequency generating frequencies that cannot be obtained by simple synthesiser integer division of the 25 MHz crystal oscillator. An example of this would be the 44·1 kHz sampling frequency widely used in digital audio applications.
-
Page 27: Event Inputs
D-socket. These allow close control of Events the clocks for 1401 programmers. Full details are given in the 1401 family programming manual, and the Power1401-3 technical manual. The front-panel BNCs Event 0 Event 1 are often routed by software to the Clock E0 and E1 inputs. -
Page 28: Digital Input And Output
Front-panel digital-output LEDs simply reflect the state of the bits, being lit whenever their bit is set (high). The Power1401-3 is provided with a 1-Wire port on pin 22 of The 1-Wire port the input connector. This allows bidirectional communication down a single wire (plus ground) to one or more devices, which are also powered from the same wire. - Page 29 Inputs and outputs Digital data transfer between the Power1401 and external Digital I/O equipment can optionally be synchronized by pairs of handshake protocol handshake signals. There are separate pairs for each byte. The polarities of all signals can be set independently by software. The example that follows is typical.
- Page 30 Inputs and outputs All digital inputs have MOSFET circuit protection. All outputs Technical details are buffered through SN74ACT373 or SN74ACT374 lead-free, surface-mount devices, which can source or sink 24 mA. Note that, since these are output devices, they cannot have MOSFET protection.
- Page 31 Inputs and outputs Output function Input function Digital I/O connectors High byte out Word out High byte in Word in Digital Input plug Low byte out Word out Low byte in Word in Digital Output socket Data received 8-15 Data transmitted 8-15 o/p User i/p (buffered, reserved) 22 1-wire port...
-
Page 32: Usb Port
US EMC regulations only Shell Mains earth to cable screen if used with braid-screened cables supplied by CED. The synchronization port enables two or more 1401s to be Synchronization synchronized (Power-3, Power II, micro-3, micro mk II or port Power serial no. -
Page 33: Rs232
Inputs and outputs The RS232 port is only used RS232 Function during the initial setup and for 8-way mini-DIN debugging. Under working conditions Power1401 cannot be programmed via RS232 so this port is not Ground available for users. Its pinout is given here only for the sake of No connection completeness. -
Page 34: Hardware Expansion
Power1401 motherboard. This expansion board, the CED 2701-03, requires the Power1401 expanded mechanics (can and case) and it is usually more convenient to send an unexpanded unit back to CED for upgrading than for the end-user to install it. -
Page 35: The Pga16 Top-Box: 16 Programmable-Gain Adc Inputs
(see page 40). The top-box makes internal connections to the Power1401 motherboard. This expansion board, CED 2701-04, requires the Power1401 expanded mechanics (can and case) and it is usually more convenient to send an unexpanded unit back to CED for upgrading than for the end- user to install it. -
Page 36: The Signal Top-Box: 4 Extra Dacs
The top-box makes internal connections to the Power1401 motherboard. This expansion board, the CED 2701-05, requires the Power1401 expanded mechanics (can and case), and it is usually more convenient to send an unexpanded unit back to CED for upgrading than for the end-user to install it. -
Page 37: The Spike2 Top-Box: Digital Bnc Connections
The top-box makes internal connections to the Power1401 motherboard. The expansion board, the CED 2701-09, requires the Power1401 expanded mechanics (can and case) and it is usually more convenient to send an unexpanded unit back to CED for upgrading than for the end-user to install it. -
Page 38: The Pgf8 Top Box: 8 Programmable Filter Channels
The PGF8 top-box is driven by internal connections to the Power1401 motherboard. This expansion board, CED 2701-21, requires the Power1401 expanded mechanics (can and case), and it is usually more convenient to send an unexpanded unit back to CED for upgrading than for the end- user to install it. -
Page 39: The Battery Box
Hardware expansion The CED 3003 Battery Box is a 1U box of identical size and The battery box matching style to the Power1401 hardware. It provides 12 V DC and has a nominal capacity of 9·2 Amp-hours, enabling an unexpanded Power1401-3 to run for about five hours. -
Page 40: Mechanics Of The Power1401-3
Mechanics of the Power1401-3 The Power1401-3, like all its predecessors, is built on a single Construction circuit board, the ‘motherboard’. This can accept up to two ‘daughterboards’ as expansion. Daughterboards are bolted to the motherboard on pillars that space the cards 1 U (1¾″ or 44·45 mm) apart, a ‘U’... -
Page 41: Earthing
Power1401 in the field, though we do prefer units to users be sent back to CED. No particular electronic expertise is required; the task should be well within the capability of an averagely practical person. Normal precautions against electrostatic discharge need to be taken. -
Page 42: Maintenance Operations
Maintenance operations The Power1401 requires very little maintenance. This section Introduction covers simple operations that may occasionally need the case opened, such as setting the internal options switch, replacing damaged I/O chips, upgrading memory, or re-calibrating the analogue system. We also describe updating the flash ROM. To open the Power1401, turn the unit off and disconnect the Taking the lid off power lead and any other cables. -
Page 43: I/O Components
Maintenance operations IC1, 3, 21, 5, IC77 IC7, 9, 23 & 11 OPA2132APG4 I/O components OPA604APG4 (8 off) DACs 2&3 IC17, 18 & 19 LM6511IM (3 off), ADCin 7-0 in socket IC8 MAX366CSA+, in sockets IC13 D0in, Trig, & D1in OPA2132APG4 IC15 SN74HCT244DWE4, DACs 0&1... -
Page 44: Adjustable Components & Other Features
Maintenance operations Adjustable Multiplexer components & expansion header other features Fan plug DAC 2 & 3 coaxes VR9, 10 (above) ADC 5V gain, 10V gain VR11, 12 (below) ADC 10V offs, 5V offs Board ident LVDS expansion VR1-8, ADCin 7-0 &... -
Page 45: Memory Upgrades
Maintenance operations The base-level Power1401-3 is supplied with 1 GByte of Memory double data-rate synchronous dynamic RAM (DDR SDRAM). upgrades This is a dual in-line memory module (DIMM) in a socket; you can upgrade your memory to 2 GBytes simply by exchanging the DIMM. -
Page 46: Setting The Adc Input Range
Maintenance operations edges. DIMMs are mechanically polarized; you cannot insert one upside down. Inserting the DIMM takes some force: the module is only inserted when the ejection levers snap shut. The ADC and DACs may together be set to a working range of Setting the ADC 5 V or 10 V. -
Page 47: Flash Rom
Monitor and FPGA upgrades are available as files from Upgrades and .fli the Internet page of CED’s website, . You Downloads www.ced.co.uk will find detailed instructions there on downloading the files. Monitor and FPGA upgrades are implemented by updating the TRY1401 flash ROM using the TRY1401 utility. -
Page 48: Analogue Calibration
Alternatively, you may choose to return your Power1401 to CED for calibration. See page 46 for advice on sending it back. To run TRY1401, select Running TRY1401... -
Page 49: Cleaning The Power1401
Maintenance operations The Power1401 needs periodical cleaning to remain in good Cleaning the condition. Before cleaning, remove power and all cables from Power1401 the Power1401. The exteriors of the Power1401 case and the power supply should be cleaned annually to remove deposits of foreign matter, with a soft cloth moistened with a mild detergent solution. -
Page 50: Overview
) to pick up any cont Power1401 indicator should intermittent fault. Inform comprehensive built-in switch on glowing red. CED of any reported self-test capabilities firmware first errors: File, Send Mail which are backed up by a performs a short memory... -
Page 51: Led Diagnostic Patterns
Dancing DACs: the leftmost LEDs self-diagnostic toggle their original firmware states at 1 Hz Power1401-3 can display As per program / As a number of patterns on before: LEDs continue front-panel doing whatever they LEDs were doing before indicator. -
Page 52: Calling The Ced Help Desk
We also have a direct If you need to send the Include paper phone line Power1401 back to CED: description Hardware Help Desk: You must first get a problem with equipment. returns number from +44 (0)1223 43347 CED. - Page 53 Calibration of analogue Events 2-7, 31 CPU crash LED pattern, 45 system, 42 Filter Inputs, 32 Crystal oscillator, 19, 20 CED’s email address, 46 Speed, 32 CED’s website, 5, 41 Trigger A & B, 32 Circuit diagrams, 5 DACs Trigger Out, 32...
- Page 54 Frequency synthesizer, 20 Self-test capability, 44 Memory self-test, 39 Front-panel indicator LEDs, Self-test fail LED pattern, 45 Memory upgrades, 39 Sending Power1401 to CED, Mode selector, 3, 41 ADC inputs, 16 28, 29, 30, 31, 32, 46 Monitor, 41 Clock 2, 19...
- Page 55 Maintenance operations Analogue calibration, 42 USB port, 26 Windows 7, 5 Clocks & Events test, 11 Windows 8, 5 Monitor upgrades, 41 Windows Device Manager, 7, Waveform input channels, 15 Send email report, 44 gain, 15 Waveform I/O voltage Windows Vista, 5 Waveform output channels, range, 40 Windows XP, 5...
-
Page 56: User Notes
User notes... -
Page 57: Specification
100 to 240 volts Mains Supply Frequency range 47 to 63 hertz Current 0·8 amps 88 219 428 millimetres Power1401-3 Case size & 3·0 kilograms weight 40 75 130 millimetres Power brick 0·45 kilograms 5 to +50 °Celsius... -
Page 58: Ec Declaration Of Conformity
EC Declaration of Conformity This is to certify that the: CED Power1401-3 Manufactured by: Cambridge Electronic Design Limited Science Park, Milton Road, Cambridge CB4 0FE, UK Tel +44 (0)1223 420186 Conforms with the protection requirements of Council Directive 2004/108/EC, relating to Electromagnetic Compatibility,...
