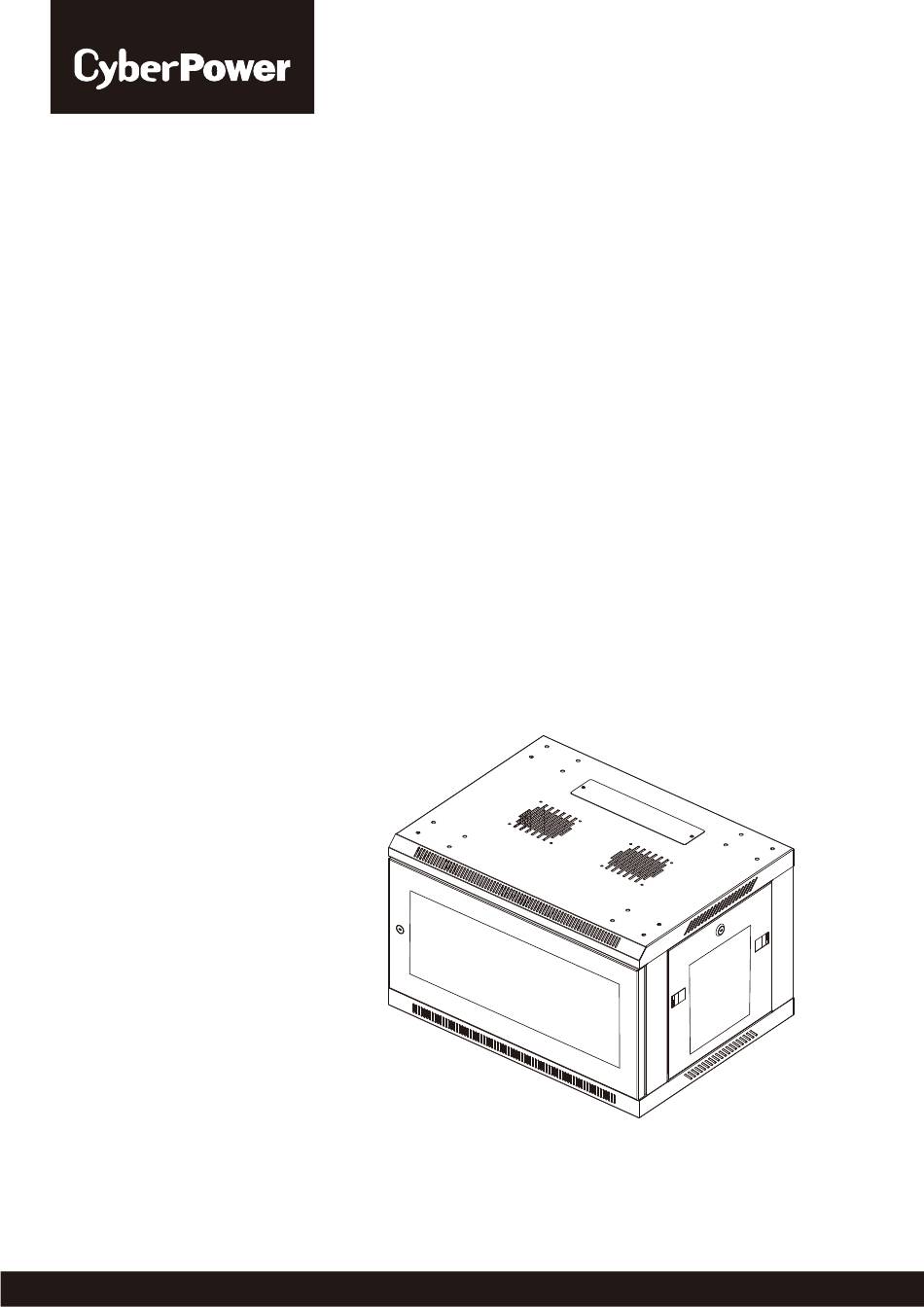

- Page 1 USER’S MANUAL Wall Mount Enclosure Wall Mount Enclosure CRxU6 Series CRxU6 Series SAVE THESE INSTRUCTIONS Please read this manual and follow the instructions for installation and use. Copyright © 2017 Cyber Power Systems, Inc. All rights reserved. K01-0000577-01...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ..........1 Part Identification ............ 2 Enclosure Components .............2 Hardware and Accessories ..........2 Initial Enclosure Setup..........3 Door and Side Panel Locks ..........3 Remove and Reverse Front Door ........3 Relocate CyberPower Badge ..........4 Open and Remove Side Panels ........5 Adjusting Rack Angles ............5 Mounting Depth ................ -
Page 3: Safety Instructions
Safety Instructions Please read these instructions carefully before use. ● The enclosure is a heavy object. Use of adequate mechanical means to move the enclosure to the desired location is highly recommended to minimize risk of injury or unit damage. For safety reasons, it is highly recommended to handle this unit between two or more people. -
Page 4: Part Identification
Part Identification Enclosure Components (Model CR6U61001 is shown) 1. Removable, Reversible, and Lockable Front Door 2. Removable and Lockable Side Panels 3. Vents 4. Cable Access with Removable Covers 5. Depth-Adjustable Rack Angles with Dual Mounting Holes 6. Horizontal Rails 7. -
Page 5: Initial Enclosure Setup
Initial Enclosure Setup Setup the following configuration options shown in this section before mounting the CAUTION enclosure on the wall. Door and Side Panel Locks The door and side panel locks are keyed-alike. The lock locations are shown below. Use the included keys to operate the locks. NOTE: The enclosure is shipped with the door locked. -
Page 6: Relocate Cyberpower Badge
2. Remove the door pin supporting washer from the bottom hinge and reinstall it on the opposite door pin hinge. 3. Rotate the front door and reinstall it on the opposite side sliding the door pin hinges into the hinge holes on the enclosure as shown below. Relocate CyberPower Badge To relocate the CyberPower badge, pull the two parts apart as shown below. -
Page 7: Open And Remove Side Panels
Open and Remove Side Panels Unlock the side panel and press the retention tabs simultaneously to release the side panel. Adjusting Rack Angles Mounting Depth The installed depth of the rack angles can be adjusted by unscrewing them from the horizontal mounting rails. -
Page 8: Dual Mounting Holes
Dual Mounting Holes The rack angles have dual mounting holes, square holes for use with cage nuts and #12-24 threaded round holes shown below. NOTE: The enclosure is shipped with the rack angles in the square hole position. Square holes #12-24 threaded round holes To use the side with the threaded holes, unscrew the rack angles from the horizontal mounting rails. -
Page 9: Cable Access
Cable Access Cables can be routed through the top or bottom cable openings of the enclosure. To access the cable opening, remove the two screws securing the cover as shown below. Grounding An individual grounding connection per enclosure is strongly recommended. Failure WARNING to follow may result in serious injury or death. -
Page 10: Enclosure Installation
Enclosure Installation The enclosure is a heavy object. For safety reasons, it is highly recommended to handle this unit between two or more people. Failure to follow these instructions may WARNING cause serious injury, or unit damage. Mounting on Wall Before installing the enclosure make sure that the wall is capable of supporting the total load being mounted in the enclosure, including the enclosure itself. -
Page 11: Caster Installation
Caster Installation CyberPower's Wall Mount Enclosures are compatible with an optional caster kit (CRA60002) shown below. Please contact your sales representative for ordering information. NOTE: For installation information, please see the CRA60002 quick start guide. -
Page 12: Equipment Installation
Equipment Installation ● Verify that the enclosure is securely mounted to the wall prior to installing any equipment. ● It is strongly recommended to first install equipment in the bottom of the enclosure. Heavier equipment should be installed in the bottom of the enclosure. CAUTION ●... -
Page 13: Mounting Using Threaded Round Holes
2. Install the equipment by screwing the included black M6 screws and cup washers into the cage nuts as shown below. Mounting Using Threaded Round Holes Simply install the equipment by screwing the included silver #12-24 mounting screws into the threaded holes as shown below. For warranty and additional information, please visit: www.cyberpower.com. - Page 14 For USA and Canada: 4241 12th Ave East, Suite 400 Shakopee, MN 55379 Toll-free: (877) 297-6937 For all other regions: Please visit our website for local contact information. Copyright © 2017 Cyber Power Systems, Inc. All rights reserved. K01-0000577-01...
