Summary of Contents for FIBERLOCK KONTROL KUBE ABACUS

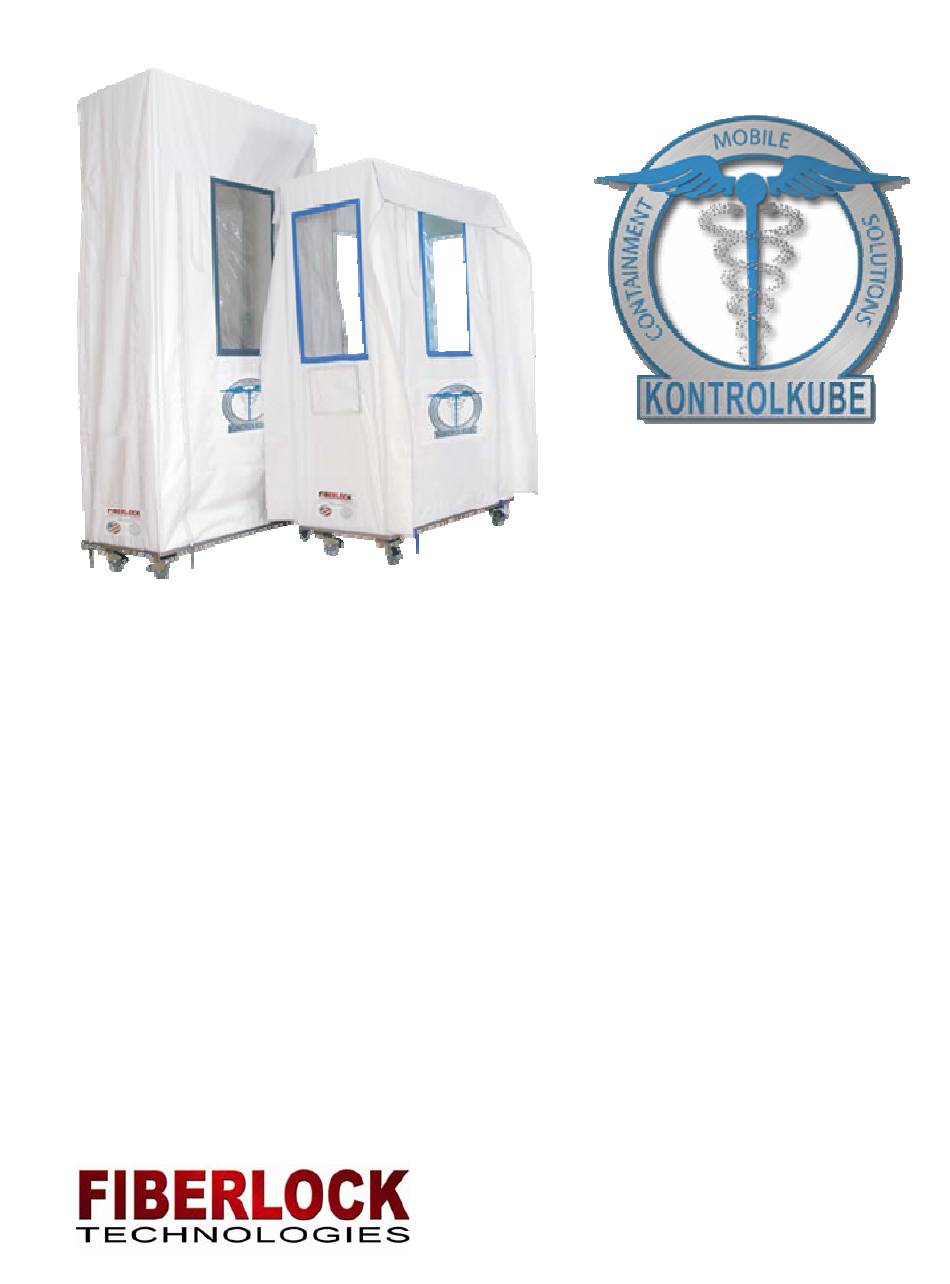

- Page 1 SETUP INSTRUCTIONS READ THOROUGHLY BEFORE SETUP AND USE Fiberlock Technologies, Inc. 150 Dascomb Rd. Andover MA 01810 www.fiberlock.com | 800.342.3755...
- Page 2 GENERAL SETUP INSTRUCTIONS Components: A Vinyl Enclosure B Bottom Frame C Extension Poles (4) D Top Frame E Wheel Base Check to ensure all components are present and undamaged. Unfold vinyl enclosure (A) on floor Locate bottom frame (B) with square sockets in corners;...
- Page 3 Unzip enclosure and lay bottom flat on floor. Bottom is only side without any openings. Place bottom frame inside enclosure. Insert extension poles (C) into corner sockets of bottom frame. Make sure handles on extension poles face inward. Insert pin through corner socket and extension pole.
- Page 4 Pull vinyl enclosure over frame assembly. Place wheel base (E) on floor. Lock caster wheels. Hold assembled unit by corners and place on wheel base. ► FOR OPERATIONS & MAINTENANACE USE, GO TO NEXT PAGE ► FOR ANTEROOM ISOLATION USE, GO TO PAGE 6 (ABACUS ONLY)
- Page 5 OPERATIONS & MAINTENANCE SETUP Unlock caster wheels. Move unit to desired location. LOCK CASTER WHEELS. Step inside unit. Raise extension poles by lifting one or two notches at a time, alternating sides until unit is at desired height. For best results, unit should be fully extended.
- Page 6 ANTEROOM SETUP (ABACUS ONLY) Unlock caster wheels. Move unit to desired location. LOCK CASTER WHEELS. Hold unit at corners and remove from wheel base. Place wide side of unit flush against door of the room to be isolated. Place air handling equipment against wall, with intake manifold facing the exhaust porthole of unit.
- Page 7 Step out of unit. Use tape or adhesive to hold flanges against wall. Flanges are located on both sides and top end of unit. Slide end of exhaust porthole over intake manifold of air handling equipment. Press together any excess ensuring the Velcro® seam comes together.
- Page 8 FOR ADDITIONAL ASSISTANCE, CONTACT FIBERLOCK AT 800-342-3755 Kontrol Kube ABACUS AND TOPSIDER SAFETY INSTRUCTIONS WARNING: Failure to follow all instructions may result in serious injury. INSPECTION 1. Inspect for damage or missing parts before each use. 2. Never use Kontrol Kube with missing or damaged parts.
