HAUTAU RAZ 908 Installation And Operating Instructions Manual

Central smoke exhaust unit, central ventilation unit

Advertisement

04/2019
209546H

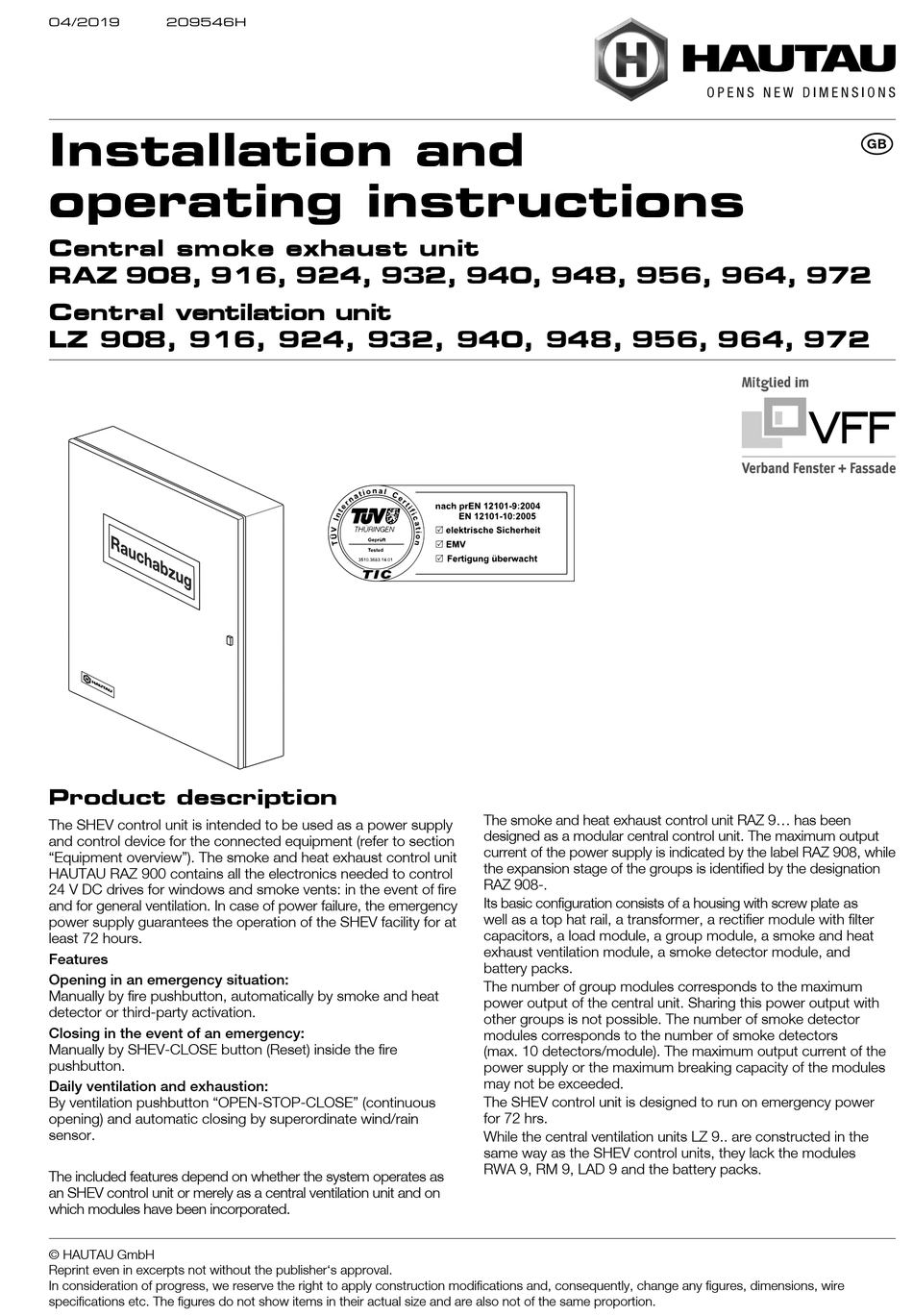

Installation and
operating instructions
Central smoke exhaust unit
RAZ 908, 916, 924, 932, 940, 948, 956, 964, 972
Central ventilation unit
LZ 908, 916, 924, 932, 940, 948, 956, 964, 972

Product description

The SHEV control unit is intended to be used as a power supply
and control device for the connected equipment (refer to section
"Equipment overview"). The smoke and heat exhaust control unit
HAUTAU RAZ 900 contains all the electronics needed to control
24 V DC drives for windows and smoke vents: in the event of fire
and for general ventilation. In case of power failure, the emergency
power supply guarantees the operation of the SHEV facility for at
least 72 hours.
Features
Opening in an emergency situation:
Manually by fire pushbutton, automatically by smoke and heat
detector or third-party activation.
Closing in the event of an emergency:
Manually by SHEV-CLOSE button (Reset) inside the fire
pushbutton.
Daily ventilation and exhaustion:
By ventilation pushbutton "OPEN-STOP-CLOSE" (continuous
opening) and automatic closing by superordinate wind/rain
sensor.
The included features depend on whether the system operates as
an SHEV control unit or merely as a central ventilation unit and on
which modules have been incorporated.
© HAUTAU GmbH
Reprint even in excerpts not without the publisher's approval.
In consideration of progress, we reserve the right to apply construction modifications and, consequently, change any figures, dimensions, wire
specifications etc. The figures do not show items in their actual size and are also not of the same proportion.
The smoke and heat exhaust control unit RAZ 9... has been
designed as a modular central control unit. The maximum output
current of the power supply is indicated by the label RAZ 908, while
the expansion stage of the groups is identified by the designation
RAZ 908-.
Its basic configuration consists of a housing with screw plate as
well as a top hat rail, a transformer, a rectifier module with filter
capa citors, a load module, a group module, a smoke and heat
exhaust ventilation module, a smoke detector module, and
battery packs.
The number of group modules corresponds to the maximum
power output of the central unit. Sharing this power output with
other groups is not possible. The number of smoke detector
modules corresponds to the number of smoke detectors
(max. 10 detectors/module). The maximum output current of the
power supply or the maximum breaking capacity of the modules
may not be exceeded.
The SHEV control unit is designed to run on emergency power
for 72 hrs.
While the central ventilation units LZ 9.. are constructed in the
same way as the SHEV control units, they lack the modules
RWA 9, RM 9, LAD 9 and the battery packs.
t

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAZ 908 and is the answer not in the manual?

Questions and answers

Summary of Contents for HAUTAU RAZ 908

  • Page 1: Product Description

    The maximum output and control device for the connected equipment (refer to section current of the power supply is indicated by the label RAZ 908, while “Equipment overview”). The smoke and heat exhaust control unit...
  • Page 2: Table Of Contents

    Contents Page Product description ............1 Important safety instructions ..........2 Installation information ............3 Features ................3 Wiring diagram ..............4 Equipment overview ............4 Housing dimensions ............5 Wire lengths and cross sections ........6 Mounting of the control unit ..........6 Overview of the major components and modules .....
  • Page 3: Installation Information

    Installation information When installing the drives, please pay attention to the occur- Make sure your shipment is complete prior to commencing ring forces. installation. Please notify your supplier immediately in case of any irregularities. Never wire a star-wired network, but always proceed from fire pushbutton to fire pushbutton, from smoke detector to smoke Connect all components only in accordance with the terminal connection diagrams included with the central unit and the...
  • Page 4: Wiring Diagram

    Description of equipment: see below RWA 9 WR 9 GS 9 GS 9 PFA 9 HAUTAU LT RM 9 RM 9 PFW 9 HAUTAU LT Beispielanlage RAZ 900 Equipment overview V entilation pushbutton LT or LTA...
  • Page 5: Housing Dimensions

    ousing dimensions For the basic control units Control Width Height Depth Clearance Fire Ventilation Output unit (mm) (mm) (mm) Top hat rail groups groups current (A) 908-1 916-1 916-2 924-1 924-2 924-3 932-1 1000 1304 932-2 1000 1226 932-3 1000 1148 932-4 1000...
  • Page 6: Wire Lengths And Cross Sections

    Wire lengths and cross sections The wires of the drives may not be extended and have to be connected directly in a conduit box, or, depending on the type of drive, to the overload cutoff or the synchronous module. The maximum wire lengths from the power source (SHEV/central ventilation unit or power supply) to the last conduit box (or overload cutoff, synchronous module) have to be in accordance with the wire cross sections...
  • Page 7: Overview Of The Major Components And Modules

    4 min. / 24 A; 16 min. / 1.2 A Battery pack voltage 24 V DC (max. 27.6 V) Battery pack fuse RAZ 924 T 25 A (24 A power supply) RAZ 916 T 15 A (16 A power supply) RAZ 908 T 7.5 A (8 A power supply)
  • Page 8 Overview of the major components and modules (cont.) Load module LAD 9.1 Is used to create the charging voltage and for monitoring the battery pack connection. The load module is fed by a separate transformer coil via a fuse 1 located on the module. A potentiometer 2 is used to set the charging voltage.
  • Page 9 Drive Motor connection 1 max. 8 A Malfunction indicator 8 yellow LED Conduit box Vent. pushbutton connection 2 LT or LTA (HAUTAU Type) 1N 4007 1N 4007 Vent. pushbutton bus (LTB) 7 +24 V active Ventilation bus (LB) 5 +24 V active...
  • Page 10 Overview of the major components and modules (cont.) The group control module GS 9 is used to control drives. To ensure observance of guideline ZH1/494, install EMERGEN- The signals issued by the smoke and heat exhaust ventilation CY STOP pushbuttons on windows that are less than 2.5 m in bus 6 are given the highest priority.
  • Page 11 Overview of the major components and modules (cont.) Smoke and heat exhaust ventilation module RWA 9 Is used for signal analysis and monitoring the fire pushbut- ton wires. The SHEV OPEN and RESET wires are monitored for breakage and short circuits. Technical specifications Supply voltage r 24 V DC max.
  • Page 12 Overview of the major components and modules (cont.) Example: Smoke detector module RM 9 Connection of 3 smoke detectors When a smoke detector has been triggered, smoke detec- tor module RM 9 will issue the “OPEN” signal on the smoke and heat exhaust ventilation bus.
  • Page 13 Overview of the major components and modules (cont.) Wind/rain module WR 9 +24 V The wind/rain module counts the impulses issued by the wind trans- Rain sensor mitter and attributes them to the wind force. The module will also transfer the signal issued by the rain sensor to the internal bus. Technical specifications Wind transmitter 3 2 1...
  • Page 14 Overview of the major components and modules (cont.) Potential-free input module PFE 9 Used to connect two potential-free inputs. Technical specifications Supply voltage 7 24 V DC max. 32 V Connection 1 +/-24 V DC and 2 relays Display 3 2x green LEDs Ventilation bus (LB) 6 +24 V active or...
  • Page 15 Overview of the major components and modules (cont.) Potential-free output module Normally closed contact PFA 9 and PFW 9 for Normally open contact „Alarm“ 230 V of alternating voltage Normally closed contact „CLOSE“ or Potential-free output module PFA 9 Normally open contact “Malfunction“...
  • Page 16: Additional Diagram Drives

    Additional diagram drives Polarity with drives OPEN Chain drive SKA 20 Chain drive SKA 45, 50 Spindle drive SA Chain drive SKA 30, 60 Twin Locking drive SM 2 PRIMAT kompakt Electric fitting stay SBS 2 3 4 2 3 4 1N 4007 1N 4007 1N 4007...
  • Page 17: Installing The Battery Packs

    Installing the battery packs Disconnect the control unit, if connected, from the mains supply and open it. Install the battery packs into the central control unit as shown in the drawing. Use the battery pack bridge to connect the positive pole with the negative pole of the other battery pack, as shown in the drawing.
  • Page 18: Function Test

    CAUTION: Function test Check if the central unit functions properly after successfully installing all components (fire pushbuttons, smoke or heat detector, drives, ventilation pushbuttons, etc). - Switch the 230 V AC power supply on and slip on the battery packs. Before working on electrically powered windows and dome - The green LED on LAD 9 is lit.
  • Page 19: Technical Specifications

    Outputs Fire pushbutton automatic detectors Ventilation pushbutton Wind/rain sensor applicable for models HAUTAU FR 900 .. RM 523 and TM 523 HAUTAU LT, LTA and HAUTAU WG/H, REM/H double rocker switch and WREM/H Voltage 24 V DC (rated) (19 V - 32,5 V) Output, max.
