Summary of Contents for Meridian ROTOCON UHS Series

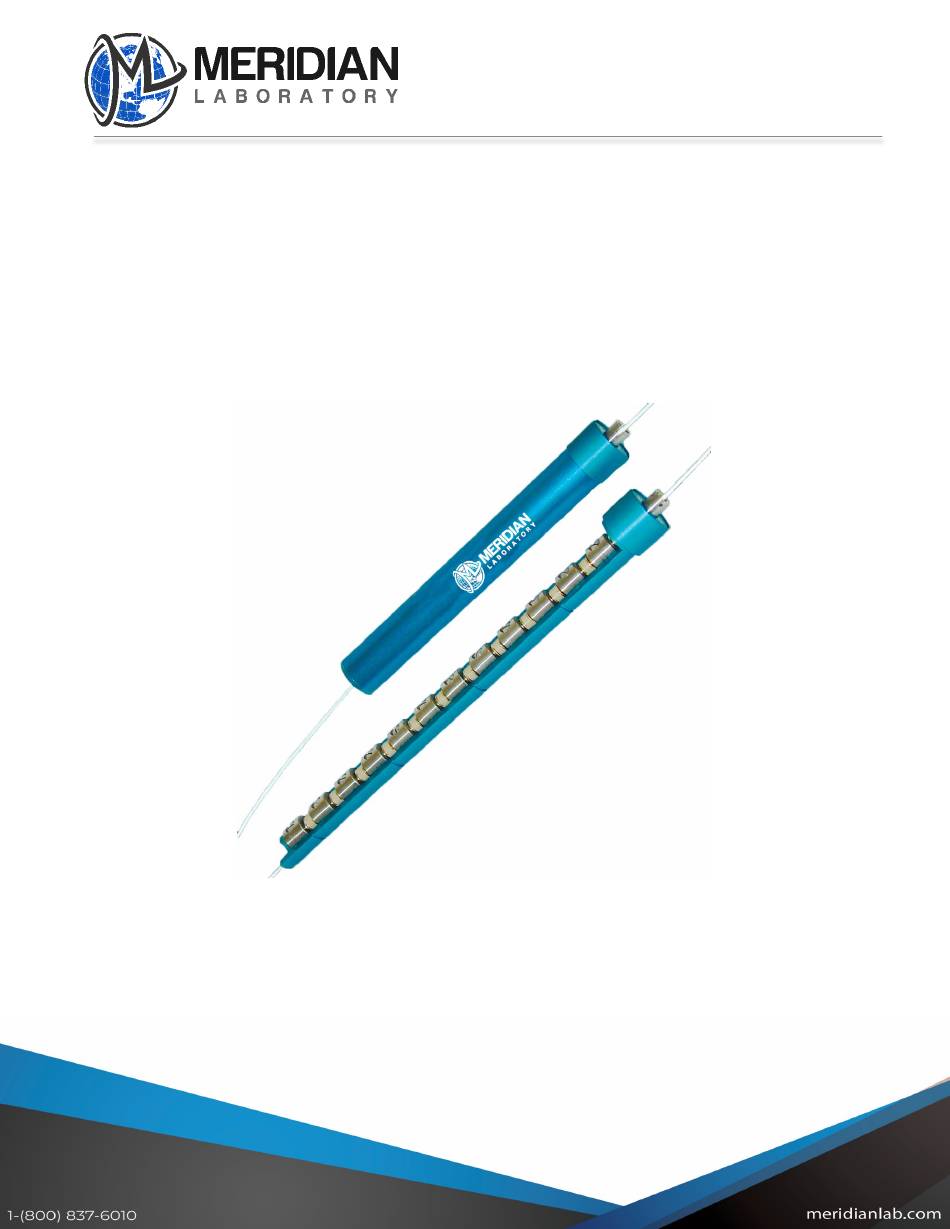

- Page 1 2415 Pleasant View Rd. Middleton, WI 53562 ULTRA HIGH-SPEED SLIP RINGS ROTOCON UHS Series User’s Manual...
- Page 2 Middleton, WI 53562 This document was created with the greatest possible care. However, Meridian Laboratory Inc. refuses to endorse any responsibility in the event of errors or for omissions. The same applies to any damage rising from the use of contained information in this handbook.
-
Page 3: The Recycling Of Mercury
DEEE (scrap electrical equipment and electronic). As for any producer of electricals appliance or electronic put on the market after August 13th, 2005, the Meridian Laboratory products must be clearly identifiable thanks to the label which corresponds to each apparatus. In the same way, the date of marketing must appear on each product. -
Page 4: Revisions To This Manual
Revisions to This Manual The contents of this manual are subject to change without prior notice. Should revisions be necessary, updates to all Meridian Laboratory User’s Manuals can be found at Meridian Laboratory’s web site at https://www.meridianlab.com/products/rotocon-uhsseries-ultra-high-speed-slip-ring-alternatives/ Please compare the date of this manual with the revision date on the web site, then refer to the manual’s Table of Revisions for any changes/updates that have been made since this edition. -
Page 5: Table Of Contents
WHO SHOULD USE THIS MANUAL ......................MANUAL ORGANIZATION 1. INTRODUCTION ..................................................1.1 DESCRIPTION ......................1.2 OPERATING PRINCIPLES ......................... 1.3 DATA SHEETS 2. INSTALLATION/CONFIGURATION........................................... 2.1 MECHANICAL MOUNTING 3. MAINTENANCE................................................. 3.1 GENERAL INFORMATION 4. MERIDIAN LABORATORY LIMITED WARRANTY............................................CLAIMS... -
Page 6: Preface
Summary of the different chapters: INTRODUCTION Chapter 1: - Contains the technical data sheet of the ROTOCON UHS Series and gives its technical characteristics as well as a brief overview of the application fields. INSTALLATION Chapter 2: - Inform of the precautions to be taken at the time of the installation of a brushless slip ring. -
Page 7: Introduction
The ROTOCON UHS Series provides a low transfer resistance and a high insulation resistance. They also significantly reduce the EMF noise generated at the cell connections. These brushless slip rings are therefore arc-free, making them superior to all other slip rings that use rings, brushes, wire loops and similar devices. - Page 8 2415 Pleasant View Rd. Middleton, WI 53562 The slip ring produces a small EMF at high-speeds. To avoid increasing the EMF it is necessary to prevent the rotating part from overheating the slip ring. Increasing the EMF can cause the vaporization of mercury within the cells.
- Page 9 ROTOCON UHS Slip Rings are used wherever speeds up to 40,000 RPM, Meridian Laboratory measurement of rotating items is needed. offers the ROTOCON UHS Series. With up to 12 Whether in research & development contacts available, the ROTOCON UHS Series...
- Page 10 2415 Pleasant View Rd. Middleton, WI 53562 Ratings Dimensions...
- Page 11 CAUTION: ROTOCON UHS Slip Rings contain mercury. The cells are hermetically sealed and should not be opened. In lieu of disposing the slip ring, please return it to Meridian Laboratory for recycling. Due to the continual development of our products, we reserve the right to modify specifications without forewarning.
-
Page 12: Installation/Configuration
2415 Pleasant View Rd. Middleton, WI 53562 2. Installation/Configuration 2.1 MECHANICAL MOUNTING To avoid subjecting the cells to vibration, the slip ring must be connected to the rotating part by a flexible coupling. This will increase the lifespan of the slip ring’s cells. There are two types of flexible couplings available: •... - Page 13 2415 Pleasant View Rd. Middleton, WI 53562 2.2 ELECTRICAL INSTALLATION Each wire color corresponds to a cell of the slip ring according to the wiring diagram below: Cell Wire Color green blue black transparent pink purple white brown gray yellow orange The color code is the same as for the cables on both sides of the slip ring.
-
Page 14: Maintenance
Do not attempt to dismantle the slip ring for any reason. Please return the ROTOCON UHS Series Slip Ring directly to the manufacturer for proper disposal and recycling. If the slip ring has not been in use for a long period of time the dynamic transfer resistance may increase above the specifications for the unit. -
Page 15: Meridian Laboratory Limited Warranty
2415 Pleasant View Rd. Middleton, WI 53562 4. Limited Warranty Seller warrants to the original purchaser that the Products will be free from manufacture defects for a period of one (1) year following the date of delivery. Seller will, at its option, repair or replace any part or component covered by this limited warranty which, following examination by Seller or its authorized representatives, is found to be defective under normal use and service. - Page 16 2415 Pleasant View Rd. Middleton, WI 53562...
