MANUAL P/N 24548
OPERATOR'S AND MAINTENANCE MANUAL
WITH PARTS LISTING

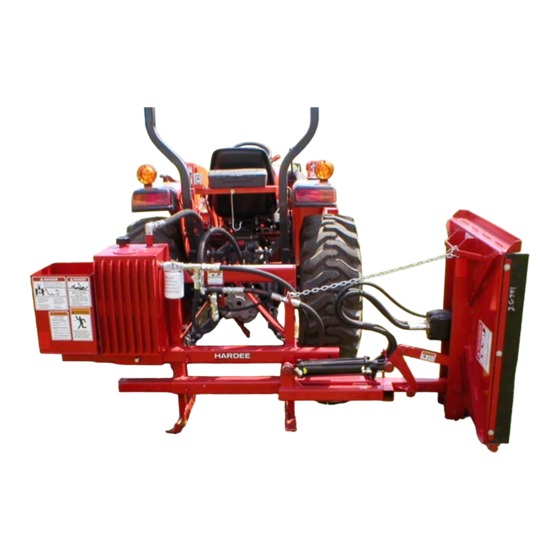

Hydraulic Rotary Mower
Model: MITI MIKE - 35
FOR SERIAL #s STARTING
WITH 012436
DANGER
Read this manual and the manual for
your tractor carefully to acquaint yourself
RELEASED 04/15/16
with both machines before operating!
4895 RED BLUFF RD LORIS, SC 29569 (843) 756-2555
www.hardeebyevh.com
evhmfg@hardeebyevh.com
Advertisement
Table of Contents
Related Manuals for Evh HARDEE MITI MIKE-35
Summary of Contents for Evh HARDEE MITI MIKE-35
- Page 1 MANUAL P/N 24548 OPERATOR’S AND MAINTENANCE MANUAL WITH PARTS LISTING Hydraulic Rotary Mower Model: MITI MIKE - 35 FOR SERIAL #s STARTING WITH 012436 DANGER Read this manual and the manual for your tractor carefully to acquaint yourself RELEASED 04/15/16 with both machines before operating! 4895 RED BLUFF RD LORIS, SC 29569 (843) 756-2555 www.hardeebyevh.com...
- Page 2 THIS CUTTER IS NOT DESIGNED TO CUT TREES. The cutter is designed to cut grass and small brush smaller than ½” in diameter. Any modes of operation other than the ones described above, shall void the warranty. Moreover, HARDEE by EVH Manufacturing Company, LLC does not accept and liability to any person and/or material when the cutter is operated...
-
Page 3: Table Of Contents
© Copyright 2004 All Rights Reserved Hardee by EVH provides this publication “as is” without warranty of any kind, either expressed or implied. Every precaution has been taken in the design of this manual, however EVH assumes no responsibility for errors or omissions, neither is any liability assumed for damages resulting from the use of the information contained herein. EVH reserves the right to revise and improve this product at any time. -
Page 4: Section 1 Introduction
Introduction To Our Customers If you need additional copies of this manual, please We, at Hardee by EVH Manufacturing Company, contact your local Hardee dealer or download a copy thank you for buying your new Hydraulic Rotary from our website at www.hardeebyevh.com. -
Page 5: Section 2 Safety Information
Hardee by EVH Safety Information General Safety Rules the ground. Serious injury or death by crushing may occur in case of hydraulic failure. This section of your manual will address the safe operation of your new mower. We at Hardee strive to... - Page 6 Hardee by EVH Safety Information Weight Box - Back Danger – Thrown Object Danger – Rotating Driveline (On sheet - P/N 15845) (On sheet – P/N 15845) Operating Safety and General Warning – Thrown Object Instruction (P/N 11005) (On sheet – P/N 15845) Weight Box –...
- Page 7 Hardee by EVH Safety Information Safety Decals, continued Warning – Rotating Components (On sheet – P/N 15845) Deck Danger – Crushing Hazard (On sheet – P/N 15845) Weight Box Warning – High Pressure Fluid Hazard (On sheet – P/N 15845)
- Page 8 Hardee by EVH Safety Information Safety Decals, continued Danger – Keep Clear (On sheet – P/N 15845) Deck Danger – Crushing Hazard Hitch Frame (On sheet – P/N 15845) Warning – Pinch Point (On sheet – P/N 15845) Hitch Frame...
- Page 9 Hardee by EVH Safety Information Safety Decals, continued Danger – Thrown Object Deck - Front (On Sheet – P/N 15845) Danger – Keep Away Rotating Blades Deck – Rear (P/N 11001) 15852 – Red Reflector, Rear Weight Box – Front/Back Deck –...
-
Page 10: Section 3 Assembly And Installation
Hardee by EVH Assembly and Installation Component Identification and Terminology Weight Box Fan- Oil Tank Dipstick Hydraulic Motor Oil Tank Deck Return Filter Shipping/Storage Chain Hitch Frame Pump Stabilizer Deck Cylinder Rubber Shielding Link - Cylinder Stand Weldment Extension Arm... -
Page 11: Tractor Requirements
Hardee by EVH Assembly and Installation Tractor Requirements The Hydraulic Rotary Mower you have purchased is designed for use with 22 - 34 horsepower, Compact Tractor. The above tractor must be equipped with a 540 RPM rear power take-off (PTO) and one set of hydraulic remotes. -
Page 12: Hydraulic System And Operational Setup
Hardee by EVH Assembly and Installation Hydraulic System and Operational Setup If you have any questions, consult your local Hardee dealer. IMPORTANT Working Safely with Hydraulic Lines The hydraulic system setup information contained in Purge all air from hydraulic system before attempting the following pages should be used only as a guide. -
Page 13: Section 4 Operation Instruction
– part number 23333 Grease Points Page 12 DANGER Blade Tightness Page 12 Do not modify or alter this machine or any of its components or any equipment function without consulting EVH Manufacturing Company. MITI MIKE HYDRAULIC MOWER 4/1/12... -
Page 14: Using Your Cutter
Hardee by EVH Operation Instruction Using Your Mower Danger Do not change the blade rotation direction! Blades Getting Started must rotate in the counter clockwise direction. You will need to spend some time getting the “feel” of your new mower. Spend time reviewing the following steps before using your mower for the first time. -
Page 15: Section 5 Maintenance
Hardee by EVH Maintenance Maintenance and Service Schedule When inspecting, pay particular attention to any small hairline cracks between spindle bolt hole This section is dedicated to the maintenance of the and blade bolt holes. This indicates metal fatigue Miti Mike - 35. As with any piece of equipment, the... -
Page 16: Routine Maintenance Checklist
Hardee by EVH Maintenance Routine Maintenance Checklist Interval Item Comments Pivot Points • Grease Fittings • Blades • Change If Damaged (In Pairs) Daily Or 10 Blade Bolts (Blade To Disk) • Change With Damaged Blades ( In Pairs) Hours Blade Holder Nut •... -
Page 17: Section 6 Troubleshooting
Hardee by EVH Troubleshooting Troubleshooting Guide Hydraulic System, Blade System, Pump, Motor, Fluid Lines Problem Possible Cause Solution / Correction Cylinder Will Not Operate Tractor Remotes not engaged Engaged Remote Tractor Remote engaged In Reverse Engage Remotes Opposite Way Or Switch Hydraulic Lines In Tractor Remotes. - Page 18 Hardee by EVH Troubleshooting Troubleshooting Guide, continued Hydraulic System, Blade System, Pump, Motor, Fluid Lines Problem Possible Cause Solution / Correction Individual Cylinders Leak Down Blown Or Worn Cylinder Packing Repair / Replace Cylinder Blades Won't Start-Up Repair / Replace Hydraulic Lines...
-
Page 19: Section 7 Specifications
Hardee by EVH Specifications Summary of Specifications MODEL Miti Mike - 35 Approximate Weight (lbs.) 740 - Ready To Mow Blade Tip Speed (ft/min) 540 PTO – 16,000 ft/min Blades Oval blade carrier Mowing Capacity / Suggested Brush up to 1/2” dia. - Page 24 Reference Hardee by EVH _______________________________________________________________________________________________________ MITI MIKE HYDRAULIC MOWER 8/07/12...
-
Page 25: Section 9 Reference
Reference Hardee by EVH Bolt Torque Checking Bolt Torque NOTE: Bolt Torques shown are maximum The tables shown below give correct torque allowable values for ultimate safe working values for various bolts and capscrews. strength or external load-carrying capacity. Tighten all bolts to the torque specified in the The bolt torque are not applicable in cases chart unless otherwise noted. - Page 26 Reference Hardee by EVH Torque Specifications for Fine Threads Bolt Torque Fine Thread Diameter SAE-2 SAE-5 SAE-8 “A” LB-FT LB-FT LB-FT 1/4” - 28 5/16” - 24 3/8” - 24 7/16” - 20 1/2” - 20 9/16” - 18 5/8” - 18 3/4”...
-
Page 27: Section 10 Warranty
NOTES:... - Page 28 NOTES:...
- Page 29 HARDEE BY EVH MANUFACTURING COMPANY, LLC 4895 RED BLUFF ROAD LORIS, SC 29569 PHONE: 843-756-2555 www.hardeebyevh.com evhmfg@hardeebyevh.com...
