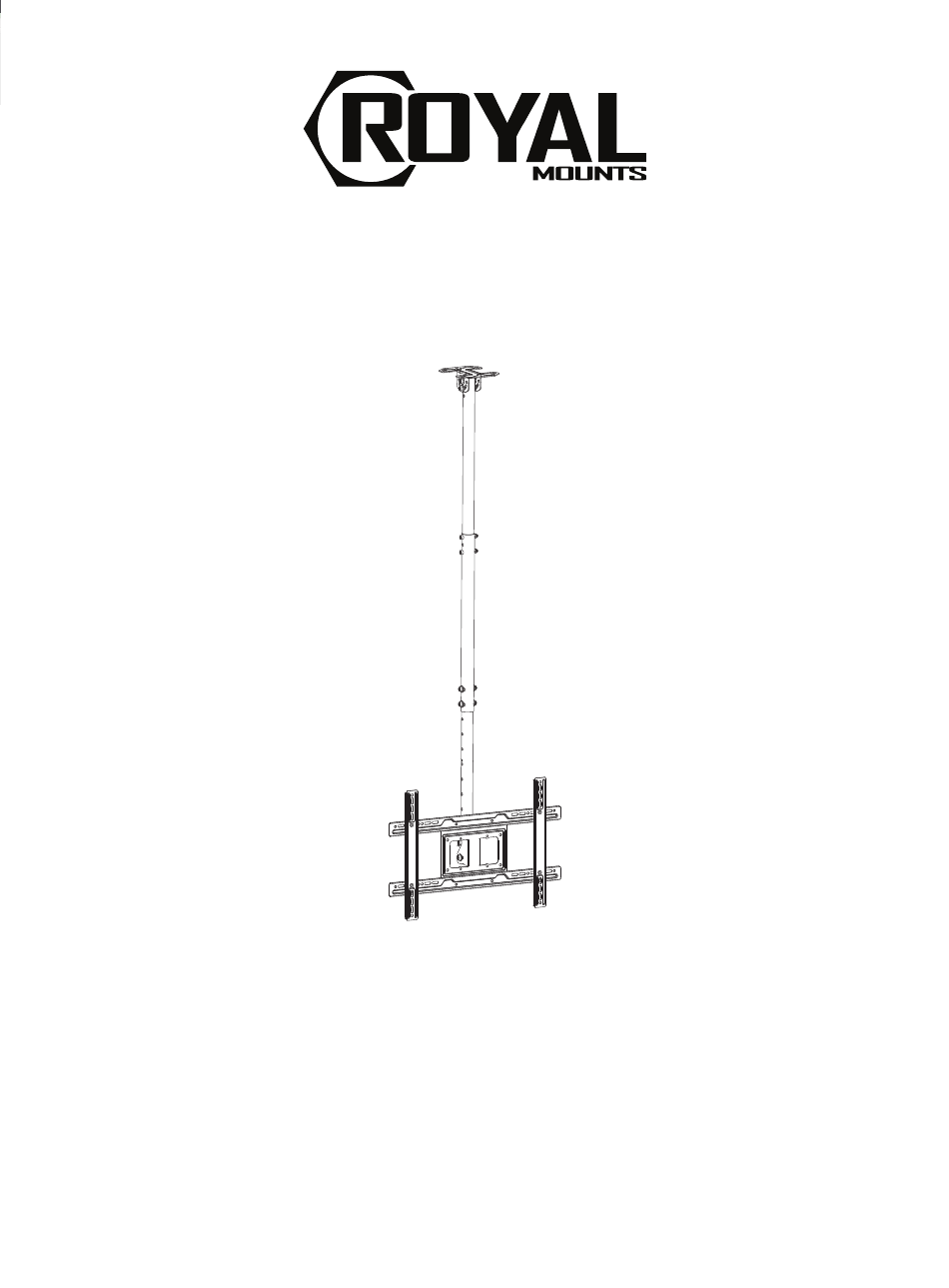

- Page 1 ROY7708B USER MANUAL TILTING CEILING MOUNT Flat Panel TV’s 37”-80”...
- Page 2 Flat Panel TV’s INTRODUCTION Congratulations! The ROY7708B Tilting Ceiling Mount is a great solution for mounting TV’s ranging from 37 inches up to 80 inches. This mount can support up to 110 pounds. It has a profile that ranges between 27.8 and 62.1 inches from the ceiling.
- Page 3 TILTING CEILING MOUNT Flat Panel TV’s INSTALLATION Step 1: Mount the back plate to the ceiling For Drywall For Concrete 1. Assemble mount post and ceiling plate 1. Assemble mount post and ceiling plate P-G P-J P-J P-G P-J P-J 2.
- Page 4 If you have any questions about the operation or installation of this product, please call our distributor, Skywalker © 2018 Royal Mounts AV Supply at (800) 844-9555 or (636) 272-8025. Skywalker AV Supply hours of operation are from 8am to 5pm CST.
