Shivvers BLUE FLAME II FH1527C1P240LP Installation & Operating Instructions Manual

Crop dryer for single width, single inlet centrifugal fans
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

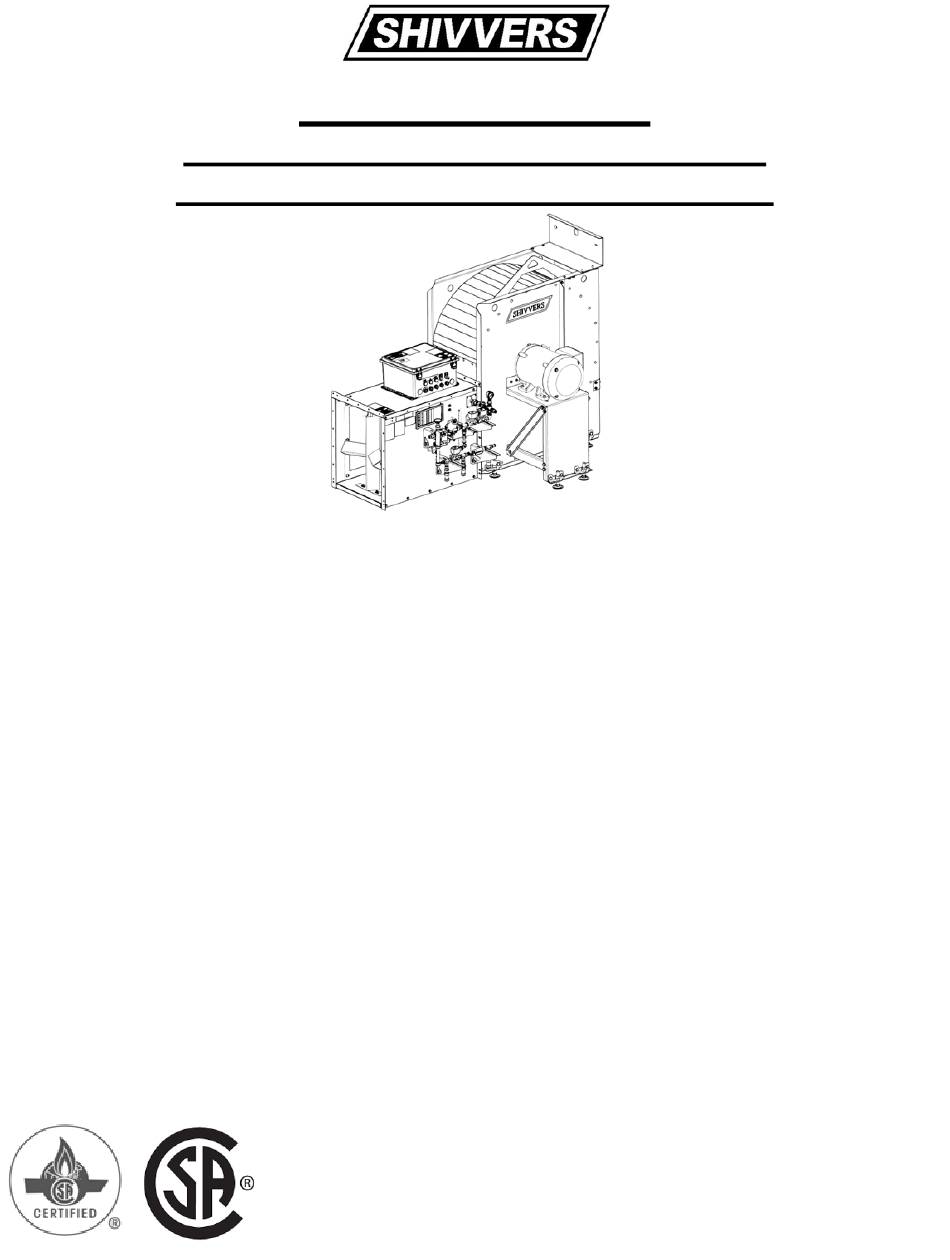

BLUE FLAME II
CROP DRYER FOR SINGLE WIDTH,
SINGLE INLET CENTRIFUGAL FANS
Operating Instructions
FH1527C1P240LP -- 15 Hp, 1 Phase, 240V, LP, CSA W/ CONTROLS
FH1527C1P240NG -- 15 Hp, 1 Phase, 240V, NG, CSA W/ CONTROLS
FH1527-1P240LP-CSA -- 15 Hp, 1 Phase, 240V, LP, CSA
FH1527-1P240NG-CSA -- 15 Hp, 1 Phase, 240V, NG, CSA
FH1527-3P230LP-CSA -- 15 Hp, 3 Phase, 230V, LP, CSA
FH1527-3P230NG-CSA -- 15 Hp, 3 Phase, 230V, NG, CSA
FH1527-3P460LP-CSA -- 15 Hp, 3 Phase, 460V, LP, CSA
FH1527-3P460NG-CSA -- 15 Hp, 3 Phase, 460V, NG, CSA
FH1527-3P575LP-CSA -- 15 Hp, 3 Phase, 575V, LP, CSA
FH1527-3P575NG-CSA -- 15 Hp, 3 Phase, 575V, NG, CSA
FH2030-3P230LP-CSA -- 20 Hp, 3 Phase, 230V, LP, CSA
FH2030-3P230NG-CSA -- 20 Hp, 3 Phase, 230V, NG, CSA
FH2030-3P460LP-CSA -- 20 Hp, 3 Phase, 460V, LP, CSA
FH2030-3P460NG-CSA -- 20 Hp, 3 Phase, 460V, NG, CSA
FH2030-3P575LP-CSA -- 20 Hp, 3 Phase, 575V, LP, CSA
FH2030-3P575NG-CSA -- 20 Hp, 3 Phase, 575V, NG, CSA
For outdoor installation only.
Use heated air for non-occupied spaces only.
Ph. (641)872-1005 ** Fax (641)872-1593
Installation &
For Models:
Shivvers Manufacturing, Inc.
614 West English St.
Corydon, IA 50060 USA
P-13246
01-07-2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUE FLAME II FH1527C1P240LP and is the answer not in the manual?

Questions and answers

Summary of Contents for Shivvers BLUE FLAME II FH1527C1P240LP

  • Page 1 FH2030-3P575LP-CSA -- 20 Hp, 3 Phase, 575V, LP, CSA FH2030-3P575NG-CSA -- 20 Hp, 3 Phase, 575V, NG, CSA For outdoor installation only. Use heated air for non-occupied spaces only. Shivvers Manufacturing, Inc. 614 West English St. Corydon, IA 50060 USA Ph. (641)872-1005 ** Fax (641)872-1593...
  • Page 2 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE DEALER INFORMATION ......……………………………………. INTRODUCTION ........…………………………………….……. SAFETY INFORMATION ........…………………………….…….. LOCATION OF SAFETY DECALS ON CROP DRYER ...……………….………. 9-10 LOCATION OF OTHER DECALS ON CROP DRYER ……………………..……. 11-15 IDENTIFICATION OF PARTS ......………………………….…….. 16-22 MECHANICAL INSTALLATION …………………………………………………… 23-39 DRYING BIN LAYOUT ………………………………………………………. PAD LAYOUT ………………………………………………………………...

  • Page 4: Dealer Information

    DEALER INFORMATION DEALER Name: Address: Phone #: INSTALLING CONTRACTOR (if different from above) Name: Address: Phone #: SERVICE CONTRACTOR (if different from above) Name: Address: Phone #: □ □ FH1527C1P240LP FH1527C1P240NG MODEL: □ □ FH1527-1P240LP-CSA FH1527-1P240NG-CSA □ □ FH1527-3P230LP-CSA FH1527-3P230NG-CSA □...

  • Page 5: Introduction

    FLAME II CROP DRYER (FAN AND HEATER), CSA Version. This manual is intended for use with the Shivvers 15 or 20 Hp Blue Flame II Crop Dryer which is CSA (Canadian Standards Association) certified. The Crop Dryer consists of a Blue Flame II heater connected to a Shivvers 15 or 20 Hp Centrifugal Fan.
  • Page 6 This series of Blue Flame II heaters are similar to the centrifugal heaters manufactured by Shivvers in the past. These dryers use a flame sensing system called flame rectification. There are no moving parts in the flame rod. It just has to be in the flame but not touching the burner element or housing.

  • Page 7: Safety Information

    If any items covered in this manual are not completely understood, or there is a concern with the safety of the product, contact SHIVVERS Manufacturing Incorporated at the address shown on the front cover. SHIVVERS is genuinely interested in providing the safest practical equipment to our customers.
  • Page 8 SHIVVERS Manufacturing Incorporated or your dealer. Prior to use, inspect all equipment to insure that it is in good operating condition. Do not operate with missing, damaged, or worn parts. Use only SHIVVERS approved replacement parts. Metal edges can be sharp. Wear protective clothing and handle equipment and parts with care.

  • Page 9: Location Of Safety Decals On Crop Dryer

    LOCATION OF SAFETY DECALS ON CROP DRYER This manual shows the location of safety decals that apply to the Blue Flame II Crop Dryer. LOCATION OF SAFETY DECALS ON FAN P-10221 (QTY 1) DECAL, WARNING, ROTATING BLADES LOCATION OF SAFETY DECALS ON FREQUENCY DRIVE (if used)
  • Page 10 LOCATION OF SAFETY DECALS ON HEATER P-10367 (QTY 1) DECAL, WARNING, READ MANUAL P-11146 (QTY 1) DECAL, DANGER, ELECTROCUTION HAZARD P-11157 (QTY 1) DECAL, CAUTION, HOT SURFACES...

  • Page 11: Location Of Other Decals On Crop Dryer

    LOCATION OF OTHER DECALS ON CROP DRYER LOCATION OF OTHER DECALS ON HEATER P-13236 (QTY 2, ONE ON OTHER SIDE, ON ACCESS DOOR) DECAL, FLAMMABLE LIQUIDS P-13234 (QTY 1) DECAL, CROP DRYER, CSA...
  • Page 12 LOCATION OF OTHER DECALS ON CROP DRYER PRESSURE RATINGS DECAL, MODEL SPECIFIC P-13239 (QTY 1) P-13441 (QTY 1) P-13440 (QTY 1) FOR 15 HP LP FOR 15 HP NG FOR 20 HP LP UNITS UNITS UNITS P-13442 (QTY 1) FOR 20 HP NG UNITS...
  • Page 13 LOCATION OF OTHER DECALS ON CROP DRYER RATINGS, SERIAL TAG DECAL, MODEL SPECIFIC P-13444 (QTY 1) P-13443 (QTY 1) P-13243 (QTY 1) FOR 20 HP LP FOR 15 HP NG FOR 15 HP LP UNITS UNITS UNITS P-13445 (QTY 1) FOR 20 HP NG UNITS...
  • Page 14 LOCATION OF OTHER DECALS ON HEATER P-13241 (QTY 1) DECAL, START-UP INSTRUCTIONS ENGLISH/FRENCH...
  • Page 15 LOCATION OF OTHER DECALS ON HEATER P-13227 (QTY 1) DECAL, VAPORIZER HI- LIMIT (LP ONLY) LOCATION OF OTHER DECALS ON FAN P-8875 (QTY 1) DECAL, DIRECTION OF ROTATION, CCW...

  • Page 16: Identification Of Parts

    IDENTIFICATION OF PARTS Refer to other installed equipment manuals for a complete understanding of the total drying and grain handling system. 118X-001A, 118Y-001A, OR 118Z-001A (15 HP) 118AA-001A OR 118AB-001A (20 HP) TOP MOUNT, CONTROL BOX LIFT BRACKET 119-282P (15 HP 689-091P (15 HP AND 20 HP) AND 20HP)
  • Page 17 Identification of parts, con’t: FAN FREQUENCY DRIVE CONTROL (if used) E-6617 15 Hp, 1 Phase Input...
  • Page 18 Identification of parts, con’t: LIQUID PROPANE HEATER VAPOR TEMP. CONTROL BOX THERMOMETER (H-2646) PRESSURE REGULATOR (H-1209) LIQUID FILLED PRESSURE GAUGE VAPOR HIGH LIMIT OPEN 30 PSI (H-2618) AT 120 DEG., AUTO RESET (E-6564) SOLENOID VALVE W/ 1/2” LP HOSE (H-1304) ORIFICE (691-081A) 3/8”...
  • Page 19 Identification of parts, con’t: NATURAL GAS HEATER CONTROL BOX MANUAL REGULATING GAS VALVE, 3/4” SILICONE FILLED (H-3126) PRESSURE GAUGE 10 PSI (H-3127) WITH VENT PLUG (H-3130) Y STRAINER (H-3125) 3/4” SOLENOID VALVE W/ ORIFICE (119-288A) 3/4” SOLENOID VALVE W/ TEST PORTS (E-6693) RELIEF VALVE 26 PSI (H-3057)
  • Page 20 Identification of parts, con’t: BLUE FLAME II CONTROL BOX, CSA 119-278A 15HP LP, 119-292A 15 HP NG 119-294A 20HP LP, 119-295A 20HP NG RELAY (E-5764) RELAY SPRING (E-6068) RELAY SOCKET BURNER HIGH-LIMIT (E-6069) 220 DEG. F, MANUAL RESET (E-5133) LIGHT AND LIGHT LENS, C22 FENWAL HARNESS (E-6622, E-6623) (3)
  • Page 21 Identification of parts, con’t: OPERATOR CONTROL AND TRANSITION HIGH LIMIT (119N-001A) TRANSITION THERMOSTAT,2ST, HI LIMIT, 130 -175 E-5105 E-6619 ANGLED RESET BUTTON (Angle is normal) GROUND LUG TERMINAL 4 E-5008-01 CONDUCTOR WAGO E-6368 (QTY 8) TERMINAL END PLATE W/ FLANGE E-6367 (QTY 1) PROBE (LARGE) FOR THERMOSTAT...
  • Page 22 Identification of parts, con’t:...

  • Page 23: Mechanical Installation

    For 2 or 3 fan installations, consult Shivvers for recommendations. It is recommended to use only Shivvers entrance collars and transitions for high temperature (greater than 140˚ F), high capacity drying. Follow instructions provided with transitions for their installation. For drying bins with more than one Blue Flame II Crop Dryer, air dampers are required to prevent reverse airflow.

  • Page 24: Drying Bin Layout

    DRYING BIN LAYOUT 6’...

  • Page 25: Pad Layout

    PAD LAYOUT 15 HP LP 72” 6” 18” CONTROL MOTOR 46” 15 HP LEVELING INLET C-FAN FEET LOCATIONS INLET ACCESS DOOR PIPE 144” TRAIN 36” BURNER DAMPER TRANSITION 40” ENTRANCE COLLAR 10” 61-1/2” BIN CUTOUT 11-11/16”...
  • Page 26 PAD LAYOUT 20 HP NG 2-1/2” 72” 9” CONTROL MOTOR LEVELING FEET LOCATIONS 51-1/2” 20 HP C-FAN ACCESS DOOR 144” PIPE TRAIN BURNER DAMPER INLET TRANSITION 10” ENTRANCE COLLAR 61-1/2” BIN CUTOUT 11-11/16”...

  • Page 27: Heater Installation

    HEATER INSTALLATION Install the flame rod located in the heater control box. Due to some flame rods breaking during shipping, we are now putting the flame rod assembly (119-261A) in the control box of the burner to be installed after the burner is shipped.
  • Page 28 Heater Installation, con’t: Two hinged Side Baffles (119-250W) are located on opposite sides inside of the Burner housing. The purpose of these are to channel sufficient air flow from the fan into the burner element for proper fuel/air mixture. The Side Baffles also aid in giving adequate heat/air mixture for uniform heat to enter the plenum.
  • Page 29 Heater Installation, con’t: TOP OF HOUSING, BURNER ELEMENT, VAPORIZER AND FRONT DEFLECTOR HAVE BEEN OMITTED FOR CLARITY. 2-1/2” 5/16” LOCKNUT (2) (F-1125) 5/16” WELDNUT (1) (F-1213) 5/16” PLAIN NUT (1) (F-1011-02) 5/16 x 6” BOLT (1) (F-1652) Verify that the spark plug mount is in the proper starting position. For LP fuel, the Ignitor is as close as possible to the Burner Element.
  • Page 30 Connect the Blue Flame II heater to the transition. 5/16” hardware is provided in the 565D-001A Transition Box, in the 565-037A Entrance Collar – Trans – Burner Hardware sack. Note the proper orientation with respect to airflow. TRANSITION ACCESS DOOR ENTRANCE COLLAR F-1009-02 (17)

  • Page 31: Fan Installation

    FAN INSTALLATION Adjust fan leveling legs for a good fit to the burner. Add sealant around the fan opening and bolt the fan to the heater as shown. Some holes may need to be reamed out or re- drilled for proper fit. Lock the five (5) or six (6) fan leveling legs in place. Caulk any air gaps.

  • Page 32: Operating Control & Transition Hi Limit Installation

    OPERATING CONTROL AND TRANSITION HI-LIMIT INSTALLATION Install the Operating Control and Transition Hi-Limit as shown below. It is best to install the Transition Hi-Limit probe first, then mount the box, being careful to not kink the capillary tubes. The capillary tubes cannot be extended, so they dictate where the box can be mounted.
  • Page 33 Two types of probe holders may be provided. E-6620 or 119-299W. Cut or break the probe holder to 3” long for the Transition Hi Limit probe. 3” PROBE DISCARD HOLDER E-6620 NOTCHES FOR WRAPPING WIRE (E-5835) 12” SUPPLIED PROBE CUT TO LENGTH AS REQUIRED HOLDER 119-299W...
  • Page 34 597-664P RAIN COVER TRANSITION HI-LIMIT LOCATION F-1121 (4) SELF DRILLING SCREW, #12 X 1” OR USER PROVIDED HARDWARE (FOR MOUNTING ON BIN) 12” MIN. OPERATING CONTROL THERMOSTAT LOCATION The Operating Control thermostat probe is installed in a similar manner, but the holder usually does not need to be shortened.
  • Page 35 Once a location is selected, drill a small hole 1/2 to 2/3 up from the bin concrete to the drying floor. Insert a wire 1 foot into the plenum area to make sure the hole is not obstructed by a floor leg or other structure. If it is obstructed, insert sheet metal screw to plug the hole and move to another location.
  • Page 36 Finish the installation by securing the capillary tubes to the bin wall using the (E-5064) nylon loop clamps and (F-1231) #8 x 1/2” self-drilling screws, to protect the capillary tubes from damage E-5064 (6) NYLON LOOP CLAMP F-1231 (6) #8 X 1/2 SELF DRILLING SCREWS...

  • Page 37: Liquid Propane Installation And Gas Hookup

    LIQUID PROPANE INSTALLATION AND GAS HOOK-UP ALL FUEL COMPONENTS MUST BE INSTALLED IN COMPLIANCE WITH NATIONAL AND LOCAL CODES AS APPLICABLE. USE THESE INSTRUCTIONS AS A GUIDE ONLY. The LP storage tank(s) should be placed at least 25 feet from the heater (some places require 50 feet, so check local regulations), and should not be near any structure.
  • Page 38 Follow local requirements for venting away pressure relief valves and the pressure regulator. The screen vent on the regulator must be moved to end of the vent line for proper regulator operation. A pipe away adapter (H-2806) is provided for the 50 PSI relief valve located after the pressure regulator.

  • Page 39: Natural Gas Installation And Gas Hookup

    NATURAL GAS INSTALLATION AND GAS HOOK-UP ALL FUEL COMPONENTS MUST BE INSTALLED IN COMPLIANCE WITH NATIONAL AND LOCAL CODES AS APPLICABLE. USE THESE INSTRUCTIONS AS ONLY A GUIDE. For adequate heat, the natural gas supply must provide the following for each heater.

  • Page 40: Electrical Installation

    ELECTRICAL INSTALLATION ALL ELECTRICAL WIRING SHALL BE INSTALLED IN COMPLIANCE WITH THE LATEST EDITION OF THE CANADIAN ELECTRICAL CODE, CSA C22.1, AS A MINIMUM REQUIREMENT, AND IN COMPLIANCE WITH LOCAL WIRING CODES AS APPLICABLE. WIRING MUST BE DONE BY A COMPETENT ELECTRICIAN. A LICENSED ELECTRICIAN IS RECOMMENDED, AND MUST BE USED WHEN REQUIRED BY LOCAL OR PROVINCIAL STATUTES.

  • Page 41: 15 Hp C-Fan 1 Phase With Vfd Incoming Power Wiring

    It is recommended to use at least some flexible conduit to the C-Fan and heater. Leave enough flex so the fan and heater can be moved to allow servicing or replacement of the dryer components. It is necessary to have an incoming ground wire (marked green) with the incoming power leads.

  • Page 42: Other C-Fan Incoming Power Wiring

    OTHER C-FAN INCOMING POWER WIRING MIN. MAX. MIN. RECOMMENDED FULL BREAKER BREAKER COPPER CONDUIT HP VOLTS PHASE LOAD AMPS SIZE SIZE WIRE SIZE SIZE 4 AWG 1-1/4 INCH 208/230 39/35 6 AWG 1 INCH 10 AWG 3/4 INCH 12 AWG 3/4 INCH 208/230 51/46...

  • Page 43: Hp C-Fan Wiring From Drive To Motor

    15 Hp C-FAN 1 PHASE, WITH VFD WIRING FROM DRIVE TO MOTOR Use at least #6 copper wire, in at least 1” conduit, from the drive panel to the C-Fan 15 Hp motor. Do not use aluminum wire here! To reduce electrical interference it is recommended to use a metal or metal lined conduit.

  • Page 44: Field Installed Control Wiring

    FIELD INSTALLED CONTROL WIRING There are many different configurations possible for field installed control wiring. Control wiring is shown for the most common configuration. If another configuration is required, consult the factory for assistance. The way shown is for if the C-Fan control panel is mounted on the back of the fan.

  • Page 45: Typical Field Installed Control Wiring Conduit Runs

    TYPICAL FIELD INSTALLED CONTROL WIRING CONDUIT RUNS -Use #16 or #14 stranded wire. -Space conduit off of transition and entrance collar surfaces because of heat. -Do not block access to transition entrance or heater side access panel. -Leave flex for service. C-FAN CONTROL PANEL...

  • Page 46: Control Wiring For Fan Control Panel On Back Of Fan

    CONTROL WIRING FOR FAN CONTROL PANEL ON BACK OF FAN Install a conduit from the C-Fan control panel to the BFII heater. This conduit will have at least 3 wires in it but it is recommended to install two extra wires. One needs to be green for ground.
  • Page 47 3b). For 1 Phase panel with VFD: If the fan is used stand-alone without any other dryer control or interlock, install a jumper between terminals T4 and T5 in the fan frequency drive control panel. The fan will not run without a connection between these terminals.

  • Page 48: Initial Checkout

    INITIAL CHECKOUT Once the wiring is completed, make sure the heater power switch is off. Make sure everyone is out of the grain bin and are safely away from all drying equipment, then unlock the main power. Lock the bin entrances shut, and then turn on the main power.

  • Page 49: Operating Instructions

    OPERATING INSTRUCTIONS To Operate: Do not start the fan unless the bin roof vents are open. Air pressure could cause roof damage. Do not start the fan if the fan wheel is spinning rapidly (so fast that you cannot see the individual fan blades). Trying to restart the fan with the wheel spinning rapidly may trip an error code or could even damage the frequency drive.
  • Page 50 If gas pressure is set too high, the Transition Hi-Limit may trip. The heater will operate with gas pressures as low as 1 PSI on LP and 0.5 PSI on NG. On LP units, when gas pressure is changed, re-adjust the vaporizer as required.
  • Page 51 Short Term Stop (less than a couple days): Close manual gas valve at Blue Flame II heater. Burn out all gas in pipe train. Turn burner switch off. Let burner cool down for a few minutes then stop fan. Long Term Stop (more than a couple days): Close gas valve at the supply.
  • Page 52 Vaporizer Operation: (LP units only) Liquid propane is fed through the vaporizer coils to change its state from a liquid to a gas. It is desirable to keep the propane vapor temperature between 50° F and 120° F. If the temperature of the gas exiting the vaporizer exceeds 140° F it may cause the propane to break down resulting in incomplete combustion and the formation of deposits on the burner surfaces and the burner orifices.

  • Page 53: Maintenance

    Maintain a clean operation. Clean up spilled corn, clean out fines under the bin floor (contact Shivvers about clean-out doors and floor doors), keep all control boxes shut and replace seals if required. Control the rodent population. Control weeds and tall grasses around the Blue Flame II.

  • Page 54: Operating Control Schematic

    OPERATING CONTROL SCHEMATIC...

  • Page 55: Lp Heater Schematic

    HEATER SCHEMATIC...

  • Page 56: Fan Control Schematic

    FAN CONTROL SCHEMATIC...

  • Page 57: Fan Vfd Control Schematic

    FAN VFD CONTROL SCHEMATIC...
