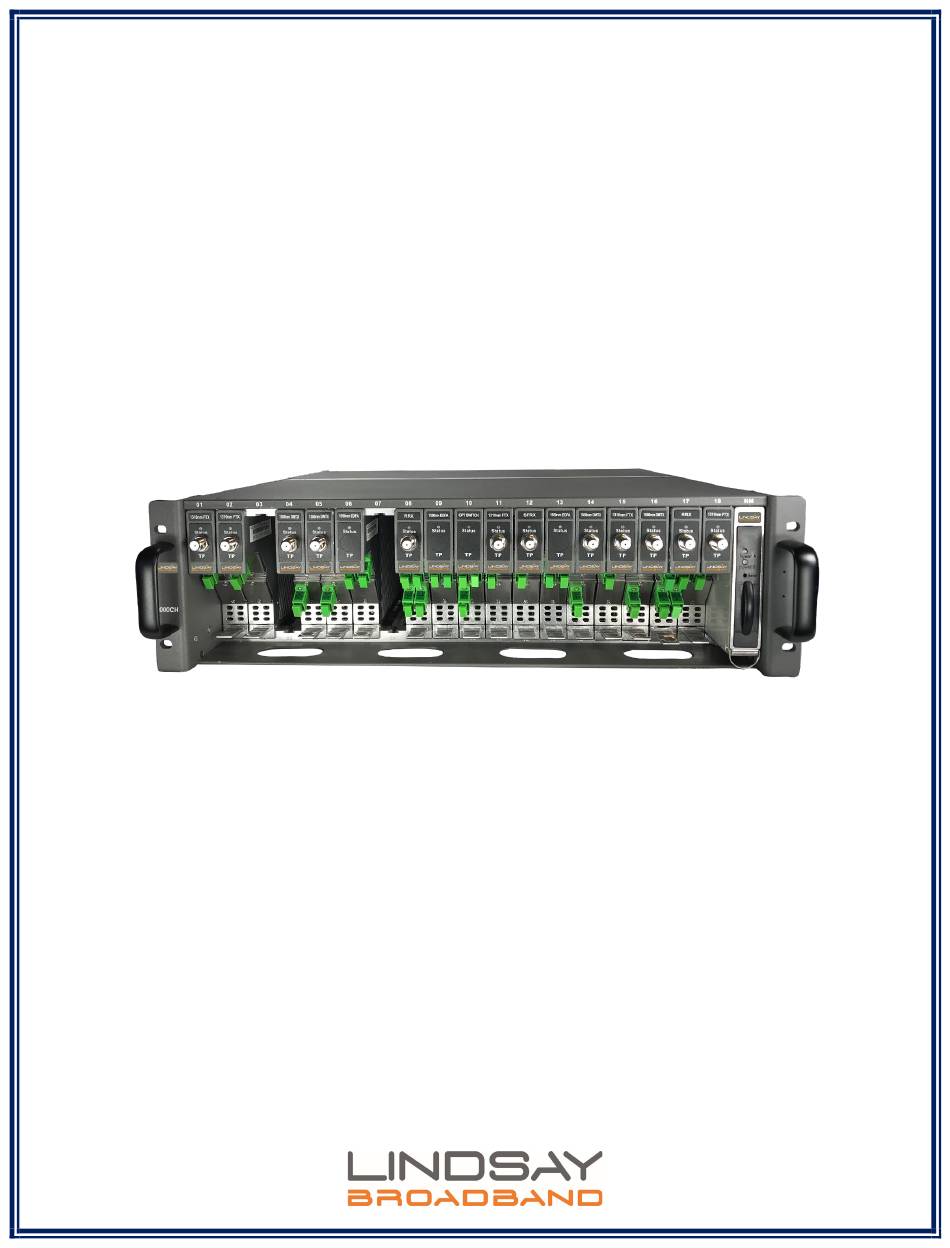

  • Page 1 LB-1000 Headend Platform Chassis User Manual Feb 03 2020...

  • Page 2: Table Of Contents

    LB-1000 CHASSIS User Manual TABLE OF CONTENTS TABLE OF CONTENTS ....................... ii PRODUCT OVERVIEW AND FEATURES ..............1 Introduction ........................1 Features .......................... 1 Specifications ......................... 2 SAFETY NOTES ....................... 3 CHASSIS DESCRIPTION ....................6 UNPACKING AND CHECKING ..................7 CHASSIS INSTALLATION AND INITIAL SETUP ............

  • Page 3: Product Overview And Features

    Video, HSD and VOIP services. The LB-1000 optical transmission chassis is a standard 19-inch width chassis, 3RU platform which can accommodate 18 application modules. The standard chassis supports both 1 GHz and 1.2 GHz modules.

  • Page 4: Specifications

    5.2"H x 19.0"W x 19.7"D (13.3H x 48.3W x 50.0D cm) Weight 12.2 lb (6 kg) NOTE: Including LB-1000-PS + LB-1000-CM (from line voltage) 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com P a g e...

  • Page 5: Safety Notes

    Failure to comply with these safety precautions and with the general or specific safety precautions described elsewhere in the LB-1000 series manual violates the safety standards of the design, manufacture, and intended use of the device. Lindsay Broadband Inc. assumes no liability for the customer’s failure to comply with these precautions.
  • Page 6 LB-1000 CHASSIS User Manual Warning of laser light Warning of laser light Warning of electrical Important Warning shock Warning of drop Warning of signal interruption Prompt of Grounding device of the important information equipment Notes: Do not directly look at the optical connector of a live transmitter due to invisible laser light, eye damage could occur.
  • Page 7 LB-1000 CHASSIS User Manual Note: To prevent fire accidents, a fuse may be replaced only with equivalent voltage and current ratings. The equipment works only in the rated voltage and frequency range. To comply with the electrical and safety codes, only use the recommended power cables.

  • Page 8: Chassis Description

    LB-1000 CHASSIS User Manual CHASSIS DESCRIPTION Figure 1: Front and rear view of empty chassis LB-1000 SLOT to guide application modules installation. LB-1000 Power Supply module Cooling Fan module for heat dissipation Floating blind mating F-type quick connector receptacles GROUNDING SCREW is used for grounding chassis.

  • Page 9: Unpacking And Checking

    3. Keep all packing materials until your inspection is complete. When possible save the shipping container for future reshipment and/or storage. If damage is discovered, file a claim with the carrier immediately and notify your Lindsay Broadband Inc. representative as soon as possible. Products deemed defective by the original purchaser must be returned to Lindsay Broadband Inc.

  • Page 10: Chassis Installation And Initial Setup

    Supply module corresponds to the input voltage requirement to the chassis. 5) On connecting the correct input voltage to the input of the power supply of LB-1000-CH, the chassis should turn ON and the 8 cooling fans located on the rear panel of the chassis should run, indicating proper operation of the chassis.
  • Page 11 LB-1000 CHASSIS User Manual 7) The unique design of the LB-1000 headend platform enables users to install any application module in any of the general slots in the chassis. There is no specific installation sequence for the modules. They can be installed in any of the general slots as long as they are smoothly pushed to the specified positions and fixed.

  • Page 12: Power Supply Module

    F-connectors. On successful connection, the module will automatically power on and the status LED will turn ON. 10) If the module hasn’t been properly connected to the LB-1000-CH, it will not power up and status LED will be OFF. In such a case, remove the application module from LB-1000-CH slot and reinsert carefully as described in steps 8 and 9 above.
  • Page 13 The power supply status can be displayed on the control module or monitored by standard SNMP network management software. Figure 5: LB-1000 PSU 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com...

  • Page 14: Warranty And Rma Policy

    LB-1000 CHASSIS User Manual WARRANTY AND RMA POLICY 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com P a g e...
  • Page 15 Without an RMA Number will be Returned to Sender RMA number must be used when returning product for credit or repair. Use of RMA numbers will ensure efficient processing. When returning product to Lindsay Broadband, please follow the simple steps below (in the order that they appear): RETURNS Fill out the Product Return Authorization Form indicating product information.
  • Page 16 LB-1000 CHASSIS User Manual Lindsay Broadband Return Material Authorization (RMA) Form Service Repair Policy Lindsay Broadband product may be Company Contact Name: returned for repair under the following condition: Address: City: Please contact Lindsay Prov/State: Postal Code/Zip: Broadband Service Dept. to obtain an RMA#.
