- Page 1 USB-C MST Dock User's Guide P/N: USBCMSTdock G4-0067A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.

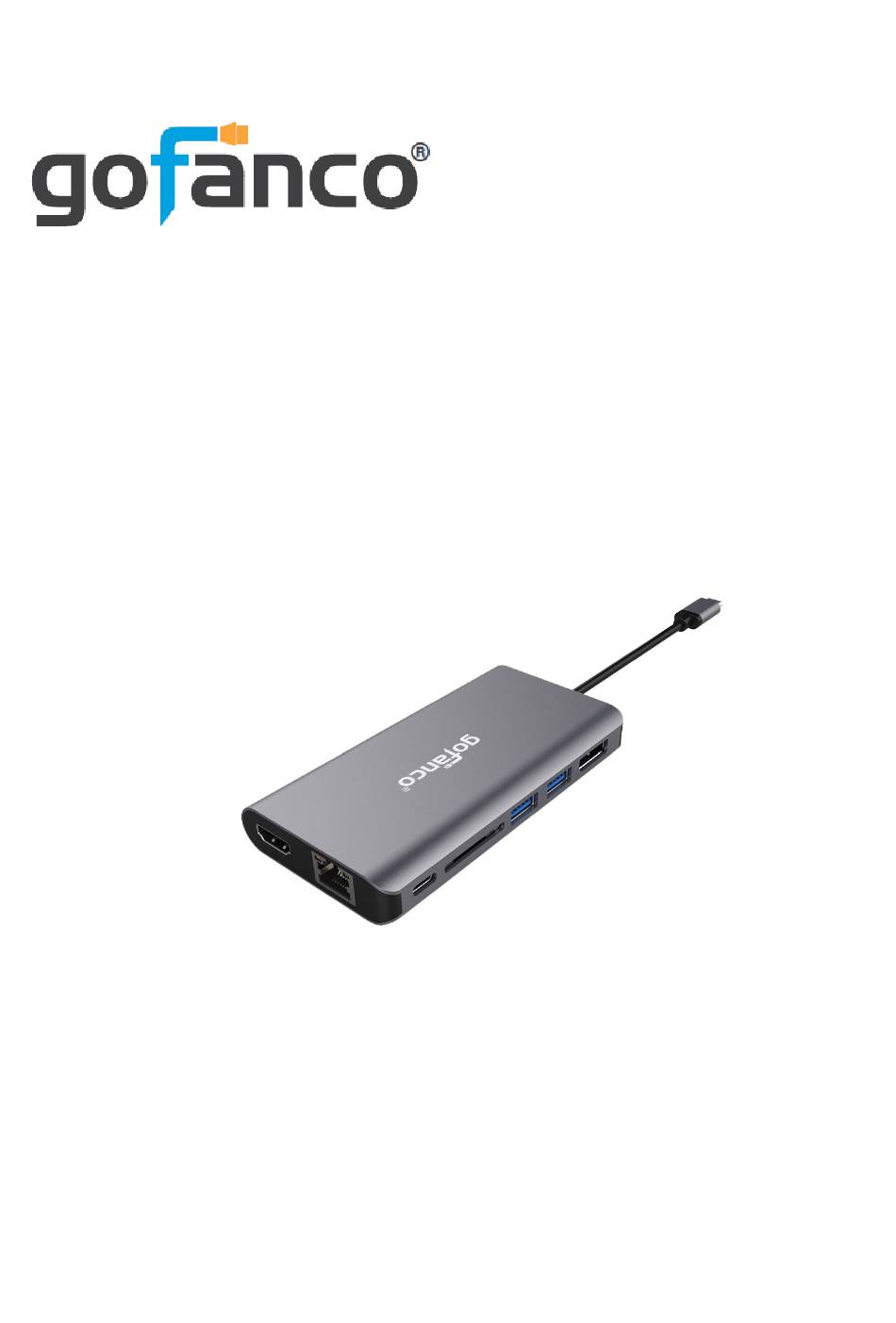

- Page 3 Introduction gofanco's USB-C MST Dock transforms a single USB-C port into a multi-port hub with HDMI, DisplayPort, USB 3.0, Gigabit Ethernet, SD memory card, and USB-C Data/PD charging ports. Features Supports Mirror mode with identical content • displayed on each display, Extended mode...
-
Page 4: Installation Requirements
Installation Requirements PC with an available USB-C with • DisplayPort Alternate mode or Thunderbolt 3 port Windows 10 / 8.x / 7 (32-/64-bit) • ® Mac OS 10.13 or later • ® Note: Mac OSes currently do not support MST function, the dock becomes a Splitter displaying the same content on both displays Product Layout... - Page 5 SD Card Slot: SD 2.0 compliant, up to • 40MB/s data transfer rate. Insert with the gold pins forward and facing down USB-C (Data/ PD): Supports USB 3.0 data • transfer rate up to 5Gb/s, PD 3.0 compliant up to 100W (20V/5A). Note: The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected...
- Page 6 Hardware Installation Important: The source USB-C output must support DisplayPort Alternate (DP Alt) mode or Thunderbolt 3 technology for the dock to work properly. Please verify DisplayPort Alternate mode over USB-C or Thunderbolt 3 with your computer manufacturer. Power off all devices you plan to connect to the dock.
- Page 7 Important Notes Supports up to 3840x2160@30Hz (single • display) or 1920x1080@60Hz (dual display with both DisplayPort and HDMI display) When mixing 4K and 1080p displays, • connect the 1080p display to the dock 1st The systems graphics card must support •...
- Page 8 AMD Eyefinity / Nvidia Surround Video Cards Advanced MST graphics technology is supported by AMD Eyefinity or Nvidia Surround graphics adapters. For Mirror mode, Extended mode, and advanced display setup such as video wall, refer to your graphics card's menu for more details.
- Page 9 Application...
-
Page 10: Specifications
Specifications Signal DP Alternate mode / Thunderbolt 3 Input 1 USB-C DisplayPort 1.2 HDMI 1.4 Compliance USB Power Delivery 3.0 SD Card 2.0 1x DisplayPort 1x HDMI 2x USB 3.0 Type-A Connectors 1x SD Card Slot 1x RJ45 1x USB-C (Data/PD) Up to 3840x2160@30Hz (single display) Resolution Up to 1080p@60Hz (dual display) - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
