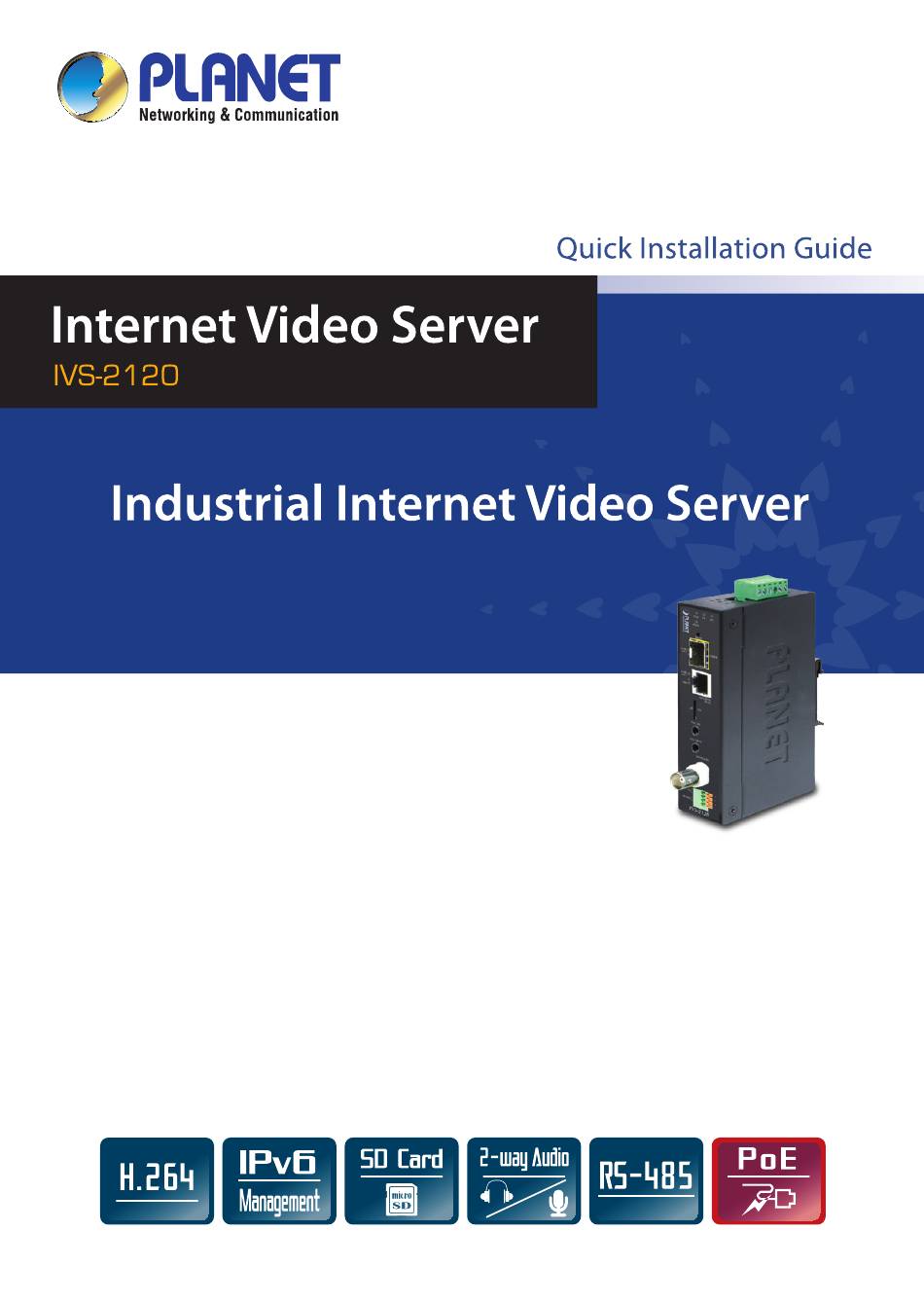

Planet Networking & Communication IVS-2120 Quick Installation Manual

Industrial internet video server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVS-2120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet Networking & Communication IVS-2120

Summary of Contents for Planet Networking & Communication IVS-2120

  • Page 2: Before Installation

    It provides an easy and high-quality solution for integrating small or large numbers of analog CCTV cameras into an IP-based video surveillance system. The IVS-2120 is the ideal choice for casinos, airports, traffic surveillance and prisons — anywhere an analog surveillance system is already installed and full frame rate is needed.

  • Page 3: Physical Description And Installation

     A/V Cable x 1  Wall Package x 1 1. If any of the above items are missing, please contact your dealer immediately. 2. Although the IVS-2120 supports AC or DC power source, its power input range must Note be noted.
  • Page 4 This IVS-2120 provides dual power source redundancy. The IVS-2120’s built-in bridge rectifier output varies accordingly so that the polarity can be ignored. Just pay attention to its power range only. Power / DO Name Number Alias Function Power1 input -- Input range is DC PWR1 12V~48V and AC 24V.
  • Page 5 Front Panel of the IVS-2120 This LED will always light on when the IVS-2120 is turned on. If either Power1 (P1) or Power2 (P2) is connected, the FAL LED will light on. For the FAL LED to light off, both P1 and P2 need to connect to power source.
  • Page 6 This button is hidden in the pinhole. This button is used to restore to all the factory default settings. Sometimes restarting the IVS-2120 will make the system back to a normal state. If the system still got problems after restart, user can restore to the factory default settings and install it again.
  • Page 7 When micro SD card is inserted into the slot and the IVS-2120 is writing data to micro SD card, the SD LED will light on. Connect an external microphone to the Mic in IVS-2120. Audio/Video-out jack allows this device to output audio and video signal. Use the...
  • Page 8 The IVS-2120 provides a general I/O terminal block with one digital input and one output for device control. It has 4 pins that from left to right there are DI+, DI-, D+ terminal of RS-485 and D- terminal of RS-485.
  • Page 9 3. Plugging Ethernet cable into RJ-45 connector Connect an Ethernet cable to the LAN socket located on the IVS-2120 panel and attach it to the network. 4. Plugging SFP module into 100FX slot (optional) Use fiber cable to connect to another SFP module.

  • Page 10: Camera Windows Utility

    3. Camera Windows Utility This chapter shows how to quickly set up your IVS-2120. The IVS-2120 is with the default settings. However to help you find the networked camera quickly, the windows utility (PLANET IPWizard II) can search the IP cameras in the network that will help you to configure some basic setting before you start advanced management and monitoring.
  • Page 11 View function: If PLANET IPWizard II finds network devices, View button will be available. Please select the device you want to view and click the View button. Furthermore, you can double-click the left button of mouse to link to the network device by browser. - 10 -...
  • Page 12 LAN setting: The utility is featured with “LAN” setting function to help user to modify the IP parameters of the installed network devices. User can step by step set up IP address, username and password. After keying in a new username and password, click the “Submit”...
  • Page 13 1. If no IP address is assigned within 30 seconds, the networked device will auto- matically assign 192.168.0.20. User may now open your web browser, and key in http://192.168.0.20 in the address bar of your web browser to logon IP camera’s web configuration page.
  • Page 14 If difficulty is met, please refer to the following steps to establish the connection: - The networked device must be installed and powered ON. If the networked device’s default IP address (192.168.0.20) is already used by another device, the other device must be turned OFF until the device is allocated a new IP address during the configuration.

  • Page 15: Further Information

    Further Information This guide is used to help you start up your IVS-2120 settings. It is also recommended to check the user manual in CD disk for more details of the system and user configuration. - 14 -...
