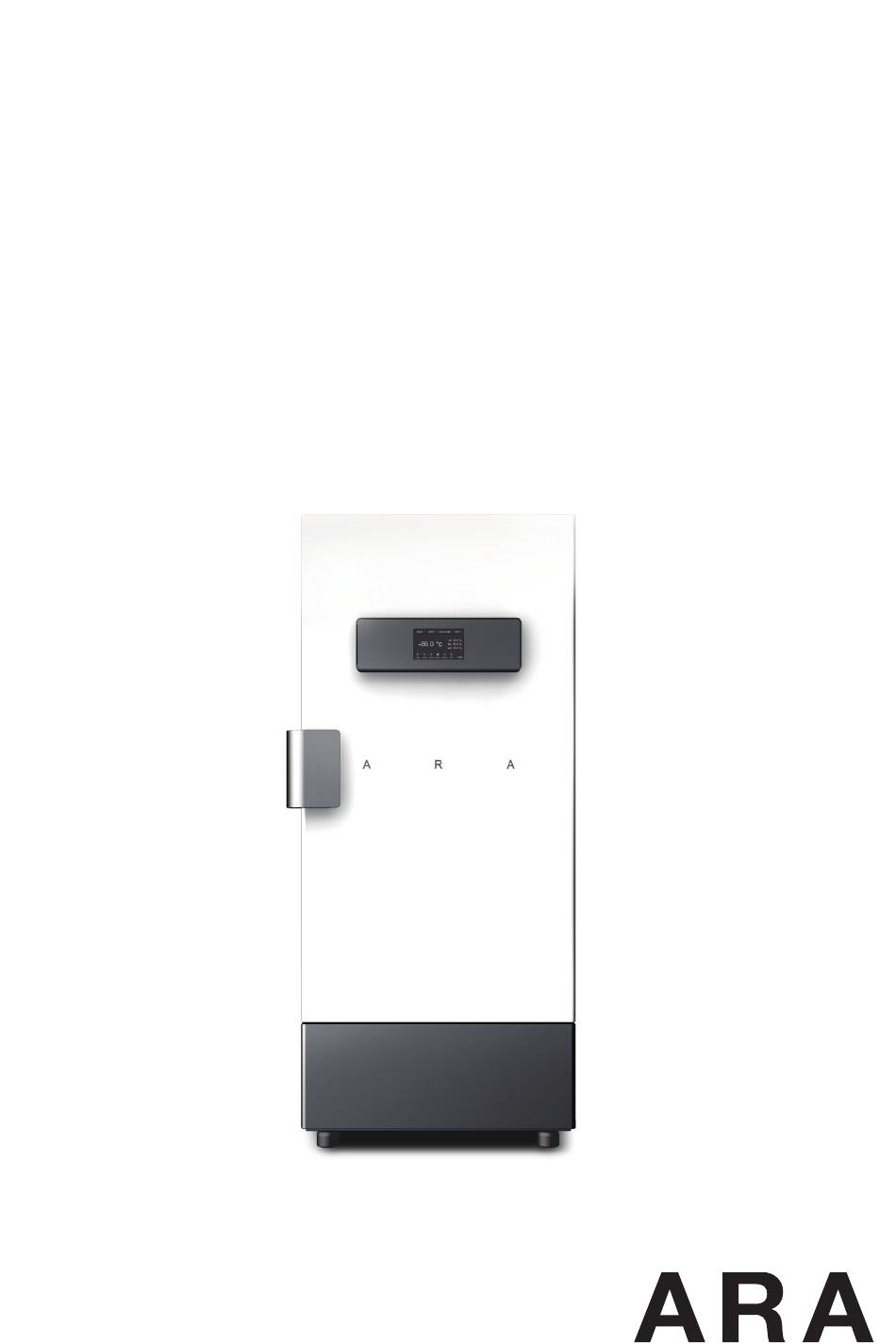

- Page 1 USER MANUAL ARA DEEP FREEZERS ARA M series M300/MD300 M400/MD400 M500/MD500 M700/MD700...
- Page 2 ARA DEEP FREEZERS ARA M series RESEARCH USE ONLY Copyrightⓒ 2018 Hanil Scientific Inc. All rights reserved. Contact Us If you have any questions, contact Hanil Scientific Inc. or place of purchase. techsupport@ihanil.com info@ihanil.com OMAU1PDEN1805...
-
Page 3: Table Of Contents
CONTENTS 1. Operating Instructions -------- 4 1-1. Before Use ---------------- 4 1-2. Key Features -------------- 4 1-3. Delivery Package ---------- 5 2. Installation -------------------- 6 2-1. Preparing installation ----- 6 2-2. Technical Spectifications - 7 3. Operating --------------------- 8 3-1. Cautions for Use ---------- 8 3-2. -
Page 4: Operating Instructions
9. Filter-free Mechanism is no need to replace or clean the filter. 10. Multiple accessories are offered, including CO back-up systems, remote monitoring systems, and more. im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com... -
Page 5: Delivery Package
DEEP FREEZERS 1-3. Delivery Package Accessories are in the chamber. for Manual model 1 ea (ARA M80) for Auto model 3 ea (except for ARA M80) Stainless Steel Shelves Door Lock Key ARA M80 ARA M(D)300 USER MANUAL ARA M(D)400... -
Page 6: Installation
Improper grounding can increase the risk of electrical shock. 8. Grounding electrical work is required when there is no grounding outlet. 9. Remove the brackets on the top of the device before opening the door. im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com... -
Page 7: Technical Spectifications
Block Condenser, NO Pin, Filter Free Mechanism Refrigerant CFC Free Refrigerant System Controller & Display 7" Full Touch Screen TFT LCD (Touch Controller) Shelves Included 3 Stainless Steel Shelves(ARA M80 - 1shelve) 12pcs of 16pcs of 16pcs of 4 pcs of 24pcs of 20(4x5)-... -
Page 8: Operating
Do not put any coolants in the chamber. Do not touch stored samples, containers and inner wall with wet hands. It may cause frostbite. Be sure to wear Cryo Gloves. im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com... - Page 9 The mains voltage fluctuation must be within ± 10% of the nominal voltage. The maximum relative humidity is 80% at 31℃ / 50% at 40°C. If device packaging is wet, do not use the device and contact the Hanil Scientific Inc. or place of purchase. Technical Support : +82-2-3452-8966 / techsupport@ihanil.com im-ara.com...
- Page 10 If the device is tilted or laid down when moving, start operation after 24 hours. When moving the device, remove all the samples from the device. For product inquiries or repairs, contact Hanil scientific Inc. T. +82-2-3452-8966 / techsupport@ihanil.com im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com...
-
Page 11: Product Description
RS232C Interface Serial Interface (Controll via PC) Alarm Signal terminal (for contact/DC12V ) For external temperature alarm system Inlet of LCO Gas inlet Auto. Valve of LCO Automatic valve for LCO Gas inlet Technical Support : +82-2-3452-8966 / techsupport@ihanil.com im-ara.com... - Page 12 COMP2 (Only Dual Comp. Type) When the Compressor 2 operates, the lamp turns green. ⑭ ECO MODE (Only Dual Comp. Type) When ECO MODE is activated, the lamp turns green. ⑮ V/W/A Displays V(voltage), W(watt), A(Ampere). im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com...
-
Page 13: Operation
MODE → SET MODE → ALARM LIMIT → ALARM LOW LIMIT → Enter a new low alarm limit temperature - Temperature Range : ARA MD300/400/500 -95℃~-65℃, ARA MD700 -90℃~-65℃ - ECO MODE : ARA MD300/400/500 -86℃~-65℃, ARA MD700 -80℃~-65℃ Technical Support : +82-2-3452-8966 / techsupport@ihanil.com im-ara.com... - Page 14 ② ① ③ ① Displays setting value after change ② Displays pre-change setting value ③ Displays setting range < When entered a value that is outside the range of valid values. im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com...
- Page 15 Displays the temperature for 4 hours as GRAPH. The temperature is recorded in 1 minute intervals. If the log is longer than 300 days, the oldest log is deleted and the latest log is saved sequentially. ① Technical Support : +82-2-3452-8966 / techsupport@ihanil.com im-ara.com...
- Page 16 The USB in excess of 16GB can not receive data download. ② ON / OFF ＯＮ ：Displays the time the ＥＶＥＮＴ ＡＬＡＲＭ occurred. ＯＦＦ：Displays the time the ＥＶＥＮＴ ＡＬＡＲＭ cleared. ③ Setting the lookup period.(Start date) ④ Setting the lookup period.(End date) im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com...
- Page 17 Admin ID:01 Admin Password:1111 New ID:20 New Password:3333 Confirm Password:3333 APPLY 4-2) DELETE USER (OPTION - Auto Door Open ID/PW delete setting) EX 1) Delete admin ID:01 Admin ID:19 Admin Password:2222 Del ID:01 Technical Support : +82-2-3452-8966 / techsupport@ihanil.com im-ara.com...
- Page 18 - "Remote Wire / Wireless Alarm System"(optional) or other devices can be used. Alarm Signal Terminal 1 for connect Alarm Signal Terminal 2 NC (Normal Connect) for power supply COM (Common) DC12V NO (Normal Open) im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com...
-
Page 19: Matintenance
140 x 430 x 220 140 x 430 x 290 140 x 570 x 290 (W x D x H, mm) x 220 x 290 Applicable ARA M80 ARA M(D)300/400 ARA M(D)500/700 Freezer Quantity of 12 ea 16 ea 12 ea (3 x 4) -
Page 20: Maintenance
Regularly check the thickness of the frost and remove the frost at least once every six months. Door -When the door does not open -When the sensor recognizes that the door is open but closed → Contact Technical Support. im-ara.com Technical Support : +82-2-3452-8966 / techsupport@ihanil.com... - Page 24 im-ara.com...
