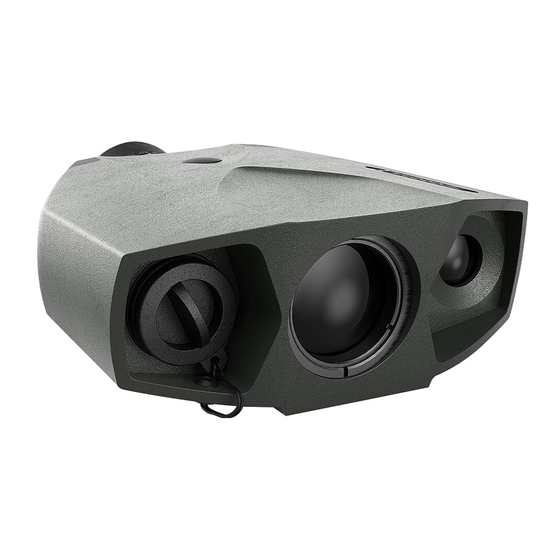

- Page 1 CONNECTING your TERRAPIN X to a KESTREL with LiNK...
- Page 3 Connecting your TERRAPIN X to a KESTREL with LiNK PAGE 1× • By pressing and releasing the push button of your TERRAPIN X you turn on the device • You will now see the digital aiming reticle in the display of your TERRAPIN X...
- Page 4 3× • Press and release the push button of your TERRAPIN X three times in quick succession to enter the Bluetooth menu • In the display you will see the last saved setting. This can either be “OFF”, “APP” or “hESt” (for KESTREL)
- Page 5 Connecting your TERRAPIN X to a KESTREL with LiNK PAGE • Toggle through the options by pressing and releasing the push button of your TERRAPIN X until you reach “hESt”...
- Page 6 As confirmation four dashes (“----“) will appear in the display of your TERRAPIN X • Besides the electronic aiming reticle you will now also see a flashing Bluetooth symbol in the display of your TERRAPIN X. This signifies that the TERRAPIN X has entered the pairing mode...
- Page 7 Connecting your TERRAPIN X to a KESTREL with LiNK PAGE 2.37U Mode Ballistics Conct Device Bluetooth Name W 0.51/0.76L Data Port Memory Options... Tgt... 335° *301m Wind... 9:00 5mph exit select exit select • Now turn on your KESTREL with LiNK •...
- Page 8 • When the KESTREL has found your TERRAPIN X select it and exit the menu by pushing the options button (symbolized by a “gear wheel”) • Now turn “Lock” to “On” and save this setting by pushing the red button of your KESTREL •...
- Page 9 5mph • You will now see a Bluetooth symbol in the KESTREL display signifiyng that it is connected with your TERRAPIN X • In the display of your TERRAPIN X the Bluetooth symbol won’t flash anymore but will now be displayed continuously...
- Page 10 PAGE Please note: After having saved the KESTREL setting in the Bluetooth menu of your TERRAPIN X and in case you have already established a connection before, the TERRAPIN X will, upon power up, re-establish the connection. This is indicated by a blinking BT symbol which turns steady once connection is established.
- Page 11 V ISI T US ON INS TAGR A M, YOU T UBE OR ON OUR W EB SI T E www.terrapin-x.com #myTPNX...
