SMARSECUR ES-K1A Manual

Wireless
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

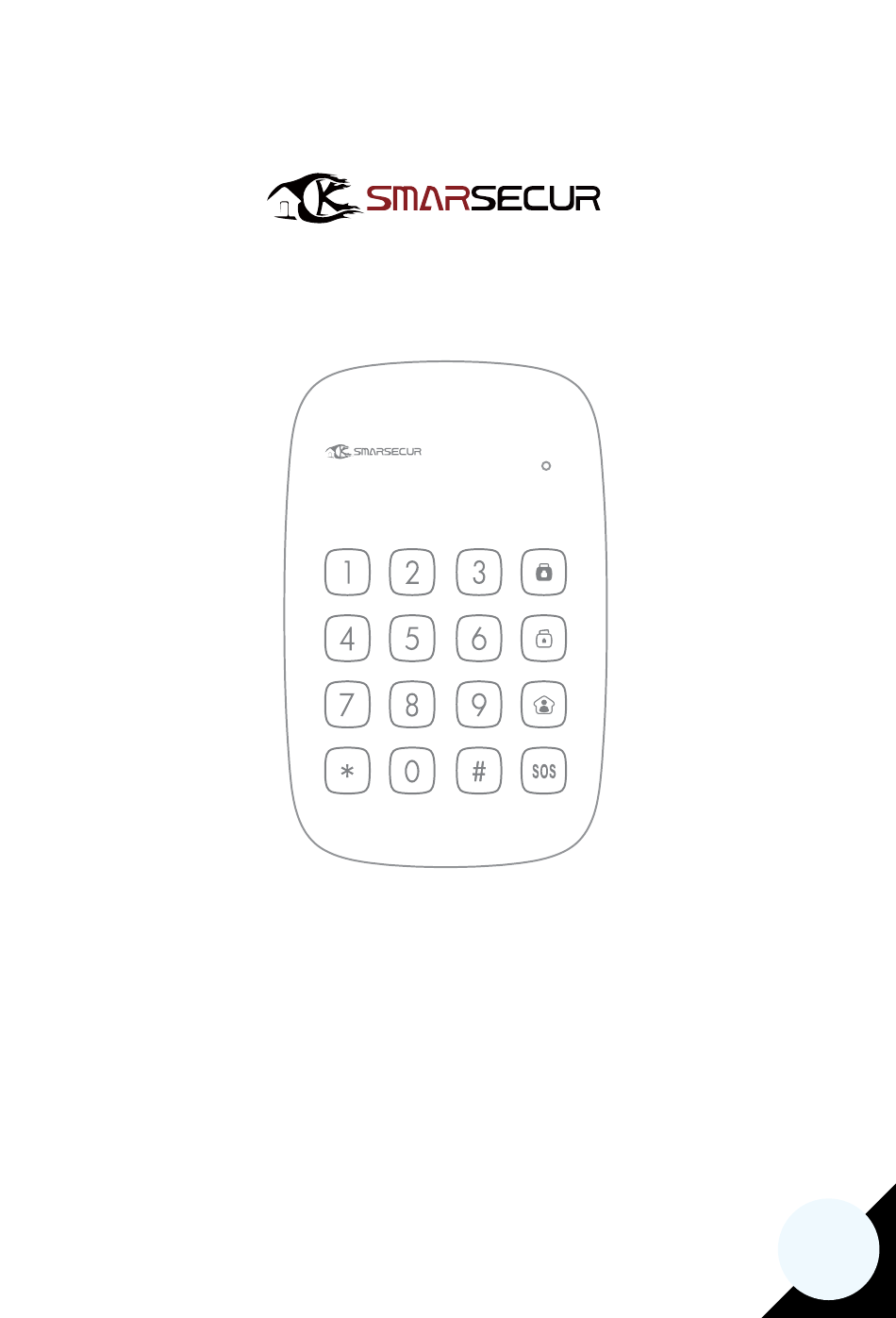

ES-K1A
Wireless Keypad
EN
www.smarsecur.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-K1A and is the answer not in the manual?

Questions and answers

Summary of Contents for SMARSECUR ES-K1A

  • Page 1 ES-K1A Wireless Keypad www.smarsecur.com...

  • Page 2: Box Content

    Foreword Thank you for purchasing the ES-K1A. The ES-K1A is a keypad that enables you to arm and disarm your alarm system, or arm it in Home Mode. Before entering your home, all you need to do is to type your passcode and press the Disarm button [ ], or swipe the RFID tag (sold separately) in front of the RFID reader to disarm the system.
  • Page 3 Appearance LED indicator RFID reader Arm / Unlock Disarm Home Mode / Unlock RFID tag (125 KHz) sold separately. The keypad supports up to 50 RFID tags. Refer to the instructions on page 9 of this manual to learn how to register an RFID tag in the keypad.
  • Page 4 Rear cover Battery compartment Tamper switch...

  • Page 5: Preparation Before Use

    Preparation Before Use How to turn the ES-K1A on strip. Unscrew and open the case. Insert the batteries according to the positive and negative signs. Close the case and screw it back. Remark Because of the tamper switch, opening the rear cover of the keypad when the latter is on triggers the alarm.

  • Page 6: Installation

    Installation Unscrew the case and open it. Screw the rear cover to a door frame or to a wall. Fasten the front cover of the keypad to the rear cover and screw them together. Remark Because of the tamper switch, opening the rear cover of the keypad when the latter is on triggers the alarm.
  • Page 7 Setup The ES-K1A operates under 4 modes. Normal mode The LED indicator blinks once every 5 seconds. Sleep mode Under Normal mode, the keypad switches to Sleep mode if no operation is made for 35 seconds. Press the Arm [ ] or Home Mode [ ] keys to exit Sleep mode. When the...
  • Page 8 Connect the ES-K1A to an eTIGER siren The ES-K1A can be connected to an eTIGER indoor or outdoor siren, which enables you to trigger the siren by pressing the [SOS] key on your keypad.
  • Page 9 Register an RFID tag in the ES-K1A 1. Press Arm [ ] or Home Mode [ ] on the keypad to unlock it. Then type [admin code + #] to enter Setup mode. Default admin code: 123456 If you hear 2 beeps, the code you have typed is wrong.

  • Page 10: Arm The System

    Usage The keypad can be used as a remote control. Your user code or your admin code will be required before arming or disarming the system, or switching to Home Mode or Mute Mode. Arm the system 1. Press Arm [ ] or Home Mode [ ] on the keypad to unlock it.

  • Page 11: Home Mode

    Disarming by RFID tag 1. Press Arm [ ] or Home Mode [ ] on the keypad to unlock it. 2. Press [*] to activate the RFID reader for 10 seconds. 3. Within the next 10 seconds, swipe the RFID tag in front of the reader to disarm the system.

  • Page 12: Emergency Call

    Emergency call Refer to the instructions page 14 of this manual for more information on how to lock/ unlock the SOS button. With SOS button unlocked 1. Press Arm [ ] or Home Mode [ ] on the keypad to unlock it. 2.

  • Page 13: Enter Setup Mode

    Settings Enter Setup mode Press Arm [ ] or Home Mode [ ] on the keypad to unlock it. Type [admin code+#] to enter Setup mode. Default admin code : 123456 Under setup mode, if no operation is made for 30 seconds the keypad will exit the setup mode automatically.
  • Page 14 If the exit delay has been set, the control panel will beep once every second after having pressed the Arm [ ] key. The rhythm of the beeps will speed up during the last 15 seconds. After the exit delay time has elapsed, the control panel is armed. If an exit delay has been set up for both the control panel and the keypad, the actual delay time will be the combination of both exit delays.
  • Page 15 Keyboard clicks Turn keyboard clicks on 1. Enter Setup mode. 2. Type [3510#]. 3. You hear one beep: the setup is successful. 1. Enter Setup mode. 2. Type [3511#]. Remark Default setting: keyboard clicks are on.
  • Page 16 Enable / Disable deactivation by RFID tag Enable deactivation of the system by RFID tag 1. Enter Setup mode. 2. Type [3610#]. 3. You hear one beep: the setup is successful. Disable deactivation of the system by RFID tag 1. Enter Setup mode. 2.

  • Page 17: Change User Code

    Change user code The user code may be required to interact with the control panel (arm or disarm the system, or switch to Home Mode). We recommend you to change the user code before 1. Enter Setup mode. 2. Type [38+new user code+#].
  • Page 18 Reset After having reset the keypad, the user code, the admin code, and other settings will be restored to default settings. The RFID tags that have been registered will not be deleted from the keypad. 1. Enter Setup mode. 2. Type [987654321#]. 3.
  • Page 19 Problem Cause Solution No response from The keypad is not Register the keypad in the the control panel registered in the control control panel by following the when operating on panel. instructions in this manual. the keypad. The keypad is installed Install the keypad and the too far from the control control panel closer to each...

  • Page 20: Care And Maintenance

    Care and Maintenance For a safer use and a longer lifetime of the ES-K1A, we recommend you to follow the instructions listed below. Usage notices General instructions This keypad must be registered in the control panel of your eTIGER alarm system before The power supply of this keypad may impact the transmission distance of the wireless signal.
