- Page 1 PDN LITE Field Manual FIELD MANUAL 877.524.0430...
-
Page 2: Table Of Contents
What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Getting to Know Your PDN LITE . . . . . . . . . . . . . . .4–5 General Use . -
Page 3: Welcome

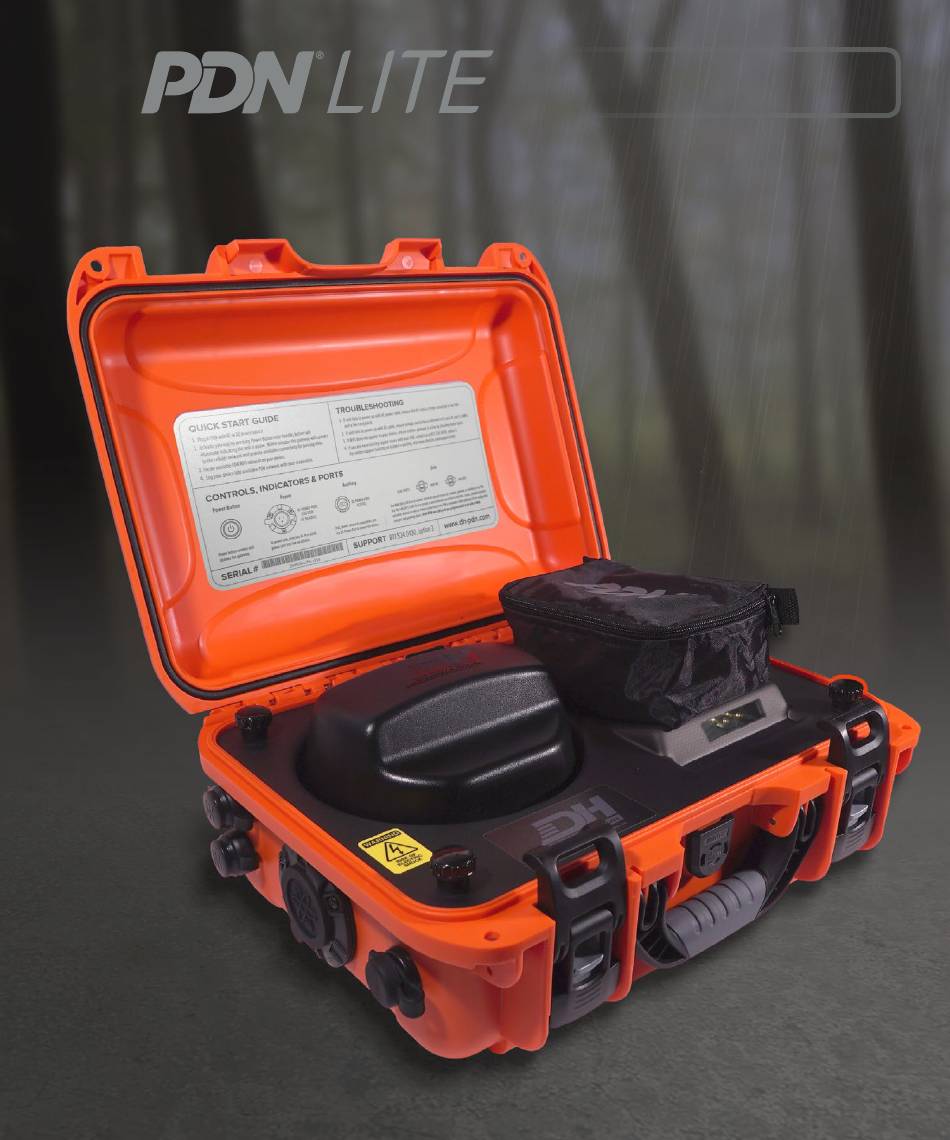

Your PDN LITE will assist in facilitating your on-the-go communications. Our closed case rugged solution will become your portable network-in-a-box and WiFi hotspot. It is easy to use; just connect your PDN LITE to an AC or DC power source, push the Power Button to activate gateway and within minutes you will have a secure wireless connection. -
Page 4: Getting To Know Your Pdn Lite
PDN LITE Field Manual GETTING TO KNOW YOUR PDN LITE 8, 9 www.portablessupport.com... - Page 5 PDN LITE . Data Ports: Two RJ45 ports — WAN (IN) /LAN (OUT), programmable . Data Cables: Two Ethernet cables to connect other devices to the PDN LITE . Power Button: Enables or disables gateway with case closed .
-
Page 6: General Use
. DC DC POWER PORT Power Port is operable (12V DC) with any 9-18VDC Note: Your PDN LITE comes external power source preconfigured and assembled. The that can be used with unit is ready to use out of the box. -
Page 7: Quick Start Guide
. 3 . Locate available PDN LITE WIFI network on your device . 4 . Log your device into available PDN LITE network with your credentials . Transport Your PDN LITE is TSA friendly and suitable for carry-on . -
Page 8: Monthly Maintenance Checks
Contact DHWS for information regarding PDN LITE remote updates or other maintenance needs. If you are experiencing ongoing issues with your PDN LITE or would like to order parts, contact DHWS at 877.524.0430, option 3. For online support ticketing or incident reporting, visit www .portablessupport .com . -
Page 9: Troubleshooting
PDN LITE Field Manual Turn to page 13 to record data in your Maintenance Log. TROUBLESHOOTING 1 . If unit fails to power up, check the power supply to ensure that AC or DC power source is working . 2 . If WIFI does not appear on your device, ensure cellular gateway is active by checking status lights . - Page 10 PDN LITE Field Manual Problem/ Possible Possible Verification Symptom Cause Corrections Open case and check If possible, move the signal strength LED through PDN to a location with antenna gateway inspection window. better signal. If hardline/ISP signal See gateway service...
-
Page 11: Warranty & Service
Note: If service is required on any internal components, contact DHWS for details. If you are experiencing regular issues with your PDN LITE or would like to order parts, contact us at 877.524.0430, option 3. For online support ticketing or incident reporting, visit www.portablessupport.com. -
Page 12: Important Safety Instructions & Warnings
- Do not use PDN LITE for any purpose other than described in this manual . - Only use manufacturer-recommended accessories . - Protect case from impact or rough handling, which could negatively affect internal components . -
Page 13: 12-Month Maintenance Log
PDN LITE Field Manual 12-MONTH MAINTENANCE LOG DATE INITIALS INSPECTION NOTES / COMMENTS 877.524.0430... - Page 14 PDN LITE Field Manual 12-MONTH MAINTENANCE LOG DATE INITIALS INSPECTION NOTES / COMMENTS www.portablessupport.com...
- Page 15 PDN LITE Field Manual 12-MONTH MAINTENANCE LOG DATE INITIALS INSPECTION NOTES / COMMENTS 877.524.0430...
- Page 16 PDN LITE Field Manual 12-MONTH MAINTENANCE LOG DATE INITIALS INSPECTION NOTES / COMMENTS www.portablessupport.com...
- Page 17 PDN LITE Field Manual 12-MONTH MAINTENANCE LOG DATE INITIALS INSPECTION NOTES / COMMENTS 877.524.0430...
- Page 18 PDN LITE Field Manual Place "My PDN" Label Here 175 Hill Brady Road Battle Creek, MI 49037 877.524.0430 www.dhm2m.com www.portablessupport.com ©Digital Highway, Inc., ver. LFM1912...
