Technical Manual LÖWEN Dart HB8
Manual
for the
Sports Games

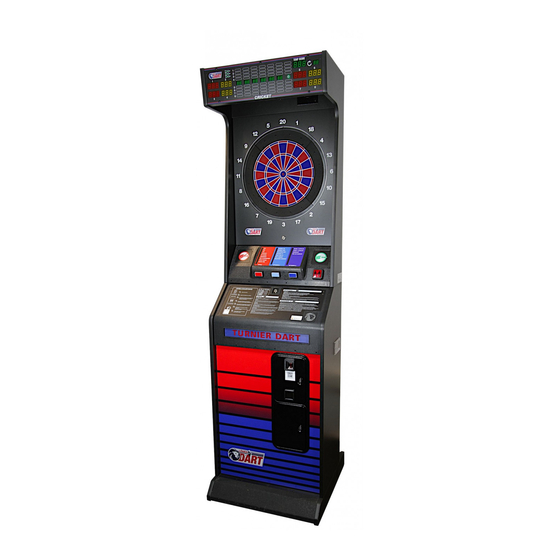

LÖWEN Turnier Dart HB8
LÖWEN Cougar Dart HB8
01/2019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HB8 and is the answer not in the manual?

Questions and answers

Kenneth
April 14, 2025

How to make free play

User image 67fcf6b1b846b
0
1 comments:
Mr. Anderson
May 14, 2025

To adjust free play on the LÖWEN HB8 dart machine, use one of the following methods:

1. Hardware Method: Install a "FREE PLAY CASTLE" or "FREE PLAY BUTTON":
- For the FREE PLAY CASTLE: It includes a lock with 2 keys and a 90cm cable.
- For the FREE PLAY BUTTON: It includes a button with micro switch, lamp holder, and 100cm cable.
- These allow play without using coins, especially if the coin acceptor is defective.

2. Software Setting:
- In the settings, enable the "Fr EE" option (Free Play) so that all games are free.
- This is done by navigating to the appropriate function (F14) in the machine’s system settings and setting it to "on".

Both methods allow dart games to be played without inserting coins.

This answer is automatically generated

0

Summary of Contents for LÖWEN HB8

  • Page 1 Technical Manual LÖWEN Dart HB8 Manual for the Sports Games LÖWEN Turnier Dart HB8 LÖWEN Cougar Dart HB8 01/2019...
  • Page 2 Technical Manual LÖWEN Dart HB8 Manual HB8 Dart The manufacturer has prepared or compiled all of the technical information in this manual with the utmost care and subjected it to effective control measures. The manufacturer reserves the right to make changes to this manual.

  • Page 3: Table Of Contents

    Technical Manual LÖWEN Dart HB8 Table of Contents Explanation of Symbols and Safety Notes ....................5 Technical Data ............................8 Installation and Initial Start-up........................ 12 Installation ............................ 12 Fixing the Game to the Wall ......................14 Initial Start-up ..........................16 Sensors ............................
  • Page 4 Technical Manual LÖWEN Dart HB8 6.1.9 P11 - SEL NNC: Machine ID Code Programming ............53 6.1.10 P12 - SEL dPr: Configuration Data Transfer to Other Machines ......... 54 6.1.11 P13 - SEL StP: Stepper Bonus Credits Programming ..........56 6.1.12...

  • Page 5: Explanation Of Symbols And Safety Notes

    Technical Manual LÖWEN Dart HB8 1. Explanation of Symbols and Safety Notes DANGER: Danger from electrical shock possibly resulting in serious bodily injury or death WARNING: Warning of possible bodily injury or property damage CAUTION: Notice of possible fault NOTICE: Provides supplementary information and explanations This instruction is intended for trained and qualified personnel only.
  • Page 6 Technical Manual LÖWEN Dart HB8 DANGER: Danger from electrical shock resulting in possible serious bodily injury or death exists in the situations described below. • De-energize the device when danger exists! The device is only de-energized after the mains plug is pulled! Never insert or pull the mains plug with moist or wet hands! •...
  • Page 7 Technical Manual LÖWEN Dart HB8 WARNING: The danger of possible bodily injury or death exists in the situations described below • Don't use organic solvents such as thinner or scouring agents to clean the device! • Ensure ventilation! Danger of overheating! Slots and other openings on the enclosure's upper, lateral, and bottom sides are used for ventilation.

  • Page 8: Technical Data

    Technical Manual LÖWEN Dart HB8 Technical Data Dimensions Height 2200 mm Width 620 mm Depth 600 mm Weight app. 82 kg Connected Load Voltage 230 V / 50 Hz Power Consumption 30 W while idling, 70 W while in operation...
  • Page 9 Technical Manual LÖWEN Dart HB8 Recommended Working Area Width 3.00 m minimum Depth 3.00 m minimum Ceiling clearance 2.50 m minimum Skizze Safety distance 1.20 m Distance floor – Bull 1.72 m Distance board - throwing line 2.37 m Throwing line...
  • Page 10 Technical Manual LÖWEN Dart HB8 Aktuelle Skizzen System-Diagramm HB8 und LP-Dart Steuerungn 01/2019...
  • Page 11 Technical Manual LÖWEN Dart HB8 01/2019...

  • Page 12: Installation And Initial Start-Up

    Technical Manual LÖWEN Dart HB8 Installation and Initial Start-up Installation After removal of the packaging, the machine must be prepared as follows: Top cabinet, upper cabinet Game select console cover Thumb screws Electronics compartment cover Coin door Cashbox door Open the electronics compartment cover.
  • Page 13 Technical Manual LÖWEN Dart HB8 Slowly and carefully fold up the upper part. Pay attention to the lower part's stability in the process. Observe that the upper part has to be held tightly until it is firmly screwed to the lower part.

  • Page 14: Fixing The Game To The Wall

    Technical Manual LÖWEN Dart HB8 3.2. Fixing the Device to the Wall WARNING: The device can tip. The danger of possible bodily injury or death exists. The device must be fixed to the floor and/ or to the wall to secure it against falling over. The necessary fastening hardware is included with the device.
  • Page 15 Technical Manual LÖWEN Dart HB8 Reinstall the spring toggle bolt in the following order: washer 'N', chain, fender washer 'R', spring toggle. Insert the spring toggle bolt modified this way with folded wings into the drilled hole and tighten screw 'H' securely. The chain is permitted only a little slack in the mounted state.

  • Page 16: Initial Start-Up

    Technical Manual LÖWEN Dart HB8 Initial Start-up This game is suitable for darts with soft tips (plastic tips) only! WARNING Turn on the machine by using the power switch at the back of the machine. Adjust Volume Volume of acoustic signals can be adjusted with the volume turning knob (SPEAKER VOLUME) at the lower left corner of the controller board.

  • Page 17: Sensors

    Technical Manual LÖWEN Dart HB8 Sensors Infrared Sensor The HB8 dart game is able to detect missed darts with Infrared Sensing Area help of two specialized systems. Upper Display Target Door Dart Sensor (Piezo Sensor) A dart hitting the catching segments will be detected, and signaled by a short tone.

  • Page 18: Adjustment Infrared Sensor

    Technical Manual LÖWEN Dart HB8 3.4.1 Adjustment Infrared Sensor NOTICE The infrared potentiometer can be reached with a slot screw driver (maximum 2 – 3 mm blade) via the hole at the right side of the infrared sensor cover. Please make sure to insert the screw driver horizontally and without pressure.

  • Page 19: Adjustment Dart Sensor (Piezo Sensor)

    Technical Manual LÖWEN Dart HB8 3.4.2 Adjustment Dart Sensor (Piezo Sensor) NOTICE Do not oversensitize! If the sensor is oversensitive, loud music may result in darts being miscounted. Once the dart sensor is properly adjusted, it works correctly up to a sound level of 110 dB.

  • Page 20: Programming Further Coin Types

    Technical Manual LÖWEN Dart HB8 Programming Further Coin Types Coin acceptor NRI G13 only accepts 50 Cent, 1 € and 2 € coins. In factory setting, the acceptance of 10 and 20 Cent coins is disabled. The NRI G13 coin acceptor can be programmed to accept further coin types (including token) without additional software.
  • Page 21 Technical Manual LÖWEN Dart HB8 Set DIL S 2.9 lower switch block back to OFF position. You hear two click sounds. Set back the DIL switch of the taught channel. Example In this example, DIL switch S2.4 Close the coin door.

  • Page 22: Adjusting Power Supply Type

    Technical Manual LÖWEN Dart HB8 Adjusting Power Supply Type Warning Upon change of CPU or power supply, the position of the DIP switches for the supply voltage has to be checked, in order to ensure safe operation of the machine.

  • Page 23: Program Update

    Technical Manual LÖWEN Dart HB8 Program Update CAUTION Downgrading from version 2.x to 1.x is not possible! The update may cause loss of user-specific settings! Prior to the update, you should save the user-specific settings. Please compare chapter 6.1.10 P12 - SEL dPr: Configuration Data Transfer to Other Machines.
  • Page 24 Technical Manual LÖWEN Dart HB8 Once the update has been successfully completed, the machine beeps four times. After auto-restart and selftest, the machine is ready for operation. Remove the USB flashdrive from the controller board. Close the electronics compartment. Possible Errors during Update:...

  • Page 25: Maintenance And Care

    Technical Manual LÖWEN Dart HB8 Maintenance and Care The following maintenance instructions are for qualified and trained staff only. WARNING Live parts will be exposed when covers are opened, or parts removed. The machine is only voltage-free after the main power plug has been disconnected! The machine must be free of voltage (->...

  • Page 26: Playing Instructions

    Technical Manual LÖWEN Dart HB8 Playing Instructions The Upper Display (Player Display, Marquee Panel) TEMP SCORE Explanation: Score displays for up to eight players . . . Cricket display TEMP SCORE Temp Score Display Round display General Playing Instructions NOTICE Some features are machine and country-dependent, and are thus only visible for the corresponding machine model, and country version.

  • Page 27: Playing Instructions For Each Game

    Technical Manual LÖWEN Dart HB8 Diddle Time After inserting coins and selecting the game but before confirming by pressing [PLAYER CHANGE] button, there is a two minute timeframe for players to “diddle” for position without triggering the Dart Alarm. Number of Players Press [PLAYER CHANGE] button for desired number of players.
  • Page 28 Technical Manual LÖWEN Dart HB8 301 Elimination Played with the same rules as 01 games, except that each player has the opportunity to send other players‘ scores back to zero (0). Each player begins with 0. Winner is the player who first reaches 301 exactly within the round limits, or has the highest score after ten or 20 rounds.
  • Page 29 Technical Manual LÖWEN Dart HB8 Shanghai Each player has three darts per round. The object is to hit each segment in sequence, beginning with segment 1, working up to segment 20, and ending with the Bullseye. Winner is the player with the highest score after seven rounds or a “Shanghai”.

  • Page 30: 01 Games Options

    Technical Manual LÖWEN Dart HB8 ‘01 Game Options Wipe Out Played the same way as other 01 games, except that each player has the opportunity to send other players’ scores back to the starting score, or to add 103 points (pls compare Table of Features, F16).

  • Page 31: Cricket Options

    Technical Manual LÖWEN Dart HB8 Cricket Options Chance It Same as Cricket, except that the machine picks six segments 4 credits per player at random (and Bullseye) which players then close as in a 1 - 8 players normal Cricket game.

  • Page 32: Team Options For 301/ 501/ 701/ 901 And 301 Elimination

    Technical Manual LÖWEN Dart HB8 Team Options for 301/ 501/ 701/ 901 and 301 Elimination 301, 501, and 701 can be played with „frozen“ players. A player who cannot win the game because his partner’s score is bigger than the opposing team’s combined score is “frozen”. If a frozen player reaches 0, the game will either give a misthrow/ bust (F6 = BUST), or make his team lose (F6 = LOSE, pls compare F06 settings in the Table of Features).

  • Page 33: 301 Elimination For Teams

    Technical Manual LÖWEN Dart HB8 301 Elimination Team Rules Players cannot eliminate their team members. Players on one team may eliminate players on the other team by matching their score as described earlier for 301 Elimination. Note: When both players of a team have the same score, an opposing team member could knock both players’...

  • Page 34: Happy Hour

    Technical Manual LÖWEN Dart HB8 Superhandicap Each player selects the 01 game (with or without options) he wants to play. Example: Player 1 is beginner, and thus selects 301. Player 2 has gathered some experience, and selects 301 Double In. Player 3 is an expert, and selects 701.

  • Page 35: Feats Readout

    Technical Manual LÖWEN Dart HB8 Feats Readout After end of the game, press [OPTIONS II] button to start displaying feats. Each entry will be displayed at the end of the game for a period of six seconds. Press [OPTIONS II] button to speed the advance to the next feat.

  • Page 36: Cricket Feats Readout

    Technical Manual LÖWEN Dart HB8 NOTICE A BUST (misthrow) situation will cancel any feat obtained in that player’s round. HAT TRICK can be accomplished on Inner or Outer Bullseye. When 100 or more points are accumulated in a HAT TRICK, only the HAT TRICK will be registered as feat.

  • Page 37: Programming Mode

    Technical Manual LÖWEN Dart HB8 Programming Mode The programming mode allows selecting options directly by using the pushbuttons. Please use pushbuttons as follows: [GAMES] button Scroll forwards through options [OPTIONS I] button Scroll backwards through options [OPTIONS II] button Confirm changes and settings (by accustic signal)

  • Page 38: Entering Programming Mode

    Technical Manual LÖWEN Dart HB8 Entering Programming Mode Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [GAMES] or [OPTIONS I] button until Pr9 appears in the TEMP SCORE display. [TEST] button Press [OPTIONS II] button to confirm.
  • Page 39 Animations (Attract Activating/ deactivating animations SEL ANL Mode): SEL ANt Animation Time: Programming the time interval between animations SEL brI Display Brightness: Programming player display brightness Only available for setting HB8 Spain/ HB8 France Only available for setting HB9 01/2019...

  • Page 40: P01 - Sel 9A: Game Settings

    Technical Manual LÖWEN Dart HB8 6.1.1 P01 - SEL 9A: Game Settings Programming number of credits per game, Bullseye setting, and round limits. Factory setting: Please compare page 42. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display.
  • Page 41 Technical Manual LÖWEN Dart HB8 Press [PROGRAM] button on the controller board to switch between the two options "credits per game” (CP9) and "round limit” (rL). rL appears in the player 1 display while the current round limit is shown in the player 2 display.
  • Page 42 Technical Manual LÖWEN Dart HB8 Overview Factory Settings: Game Settings This chart shows the factory settings for round limits, and credits per game for each game/ option. dbE = 25 points for outer Bullseye (blue ring) and 50 points for inner Bullseye (red dot); UL = no round limit...

  • Page 43: P02 - Sel Lan: Language And Country Version Programming

    Technical Manual LÖWEN Dart HB8 6.1.2 P02 - SEL LAN: Language and Country Version Programming Factory setting for this dart game is German language, and country version. The language version can be adjusted. Messages in the Cricket display, if available, will be displayed in the adjusted language.

  • Page 44: P03 - Sel Cn: Credit Per Coin Programming

    Technical Manual LÖWEN Dart HB8 6.1.3 P03 - SEL CN: Credit per Coin Programming Programming number of credits per coin/ banknote/ token, registered coin channel, and money value. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display.

  • Page 45: P04 - Sel Sec: Security Code Programming

    Technical Manual LÖWEN Dart HB8 6.1.4 P04 - SEL SEC: Security Code Programming Programming a four digit security code which protects against unauthorized access. If activated, this code has to be entered in the program, statistics and test mode. Factory setting: 0000.

  • Page 46: P05 - Sel Fea: Features Programming

    Technical Manual LÖWEN Dart HB8 6.1.5 P05 - SEL FEA: Features Programming Activating or deactivating machine features F01 – F23. NOTICE Some features are country-specific, and thus available or unavailable depending on the machine’s country setting. Press [TEST] button on the controller board.
  • Page 47 Technical Manual LÖWEN Dart HB8 The following features are available: Program Display Description Display the segment to hit in order to win in one dart. 0d o One Dart Out No single dart out calculation displayed. Attract mode tones enabled.
  • Page 48 Super High Score activated * Factory setting Feature only available for setting HB8 Spain/ France Feature only available for setting HB8 with mounted quadro matrix Feature only available for setting HB9 Feature only available for setting HB8/ HB9 Austria Feature only available, and activatable, for setting HB8...

  • Page 49: P06 - Sel Rtc: Date And Time Programming (Real-Time Clock)

    Technical Manual LÖWEN Dart HB8 6.1.6 P06 - SEL rtC: Date and Time Programming (Real-Time Clock) Programming the real-time clock. Correct date and time setting are crucial for programming of time- dependent features such as Happy Hour. Press the [TEST] button on the controller board.

  • Page 50: P07 - Sel Hhp: Happy Hour Credits Programming

    Technical Manual LÖWEN Dart HB8 6.1.7 P07 - SEL HHP: Happy Hour Credits Programming Happy Hour can be programmed for each day of the week and, if desired, with bonus credits. First, check the machine’s date and time setting. If necessary, adjust date and time as described in chapter 6.1.6 Date and Time Programming.
  • Page 51 Technical Manual LÖWEN Dart HB8 NOTICE Bonus level and bonus credit must be programmed for each individual Happy Hour place. After expiration of the Happy Hour time period, not used Happy Hour bonus credits will be deleted. Happy Hour bonus credits are separately listed in the statistics printout.

  • Page 52: P10 - Sel Dor: Dormant Time-Out Programming

    Technical Manual LÖWEN Dart HB8 6.1.8 P10 - SEL dOr: Dormant Time-Out Programming Dormant time-out refers to the amount of time that a game in progress can be idle (no darts thrown) before the dart machine will reset itself, and a new game may be started. Dormant time-out can be set from 0 to 90 minutes in 15 minute steps.

  • Page 53: P11 - Sel Nnc: Machine Id Code Programming

    Technical Manual LÖWEN Dart HB8 6.1.9 P11 - SEL NNC: Machine ID Code Programming The machine ID code is an 8 digit number you may freely select. The machine ID code will be printed on any DATAreader (or similar readout device) statistics printout, and enables you to assign each machine to its corresponding DATAreader printout(s).

  • Page 54: P12 - Sel Dpr: Configuration Data Transfer To Other Machines

    Technical Manual LÖWEN Dart HB8 6.1.10 P12 - SEL dPr: Configuration Data Transfer to Other Machines Transferring user-specific settings such as game settings, features, Happy Hour programming, or stepper bonus credits, to other dart machines via USB flash drive. The machine ID code will not be transferred.
  • Page 55 Technical Manual LÖWEN Dart HB8 Repeat steps 1 thru 6 at the dart machine to which you wish to transfer the copied settings. Press [GAMES] or [OPTIONS I] button until UPL appears in the player 2 display, and d02 in the TEMP SCORE display.

  • Page 56: P13 - Sel Stp: Stepper Bonus Credits Programming

    Technical Manual LÖWEN Dart HB8 6.1.11 P13 - SEL StP: Stepper Bonus Credits Programming Granting bonus credits upon reaching a pre-adjusted credit level. The credit levels range from 2.50 € thru 5.00 € in 10 Cent steps. Bonus credits are freely adjustable from 1 thru 10 credits. As soon as a game is started, the internal stepper counter for the bonus credit is set back to 0.

  • Page 57: P14 - Sel Rpd: Time-Out Timer Programming

    Technical Manual LÖWEN Dart HB8 Deactivate Stepper Bonus Credits: Repeat steps 1 thru 5. TEMP SCORE display will show oFF. Press [OPTIONS II] button to confirm. The entered value will be transferred from the TEMP SCORE display into the player 2 display.

  • Page 58: P15 - Sel Sto: Sweep Times Programming

    Adjusting the Sweep Time for StopWatch between 0.8 seconds and 2.5 seconds in 0.1 second steps. Factory setting: 1.0 seconds. NOTICE Feature only available for HB8 settings Spain and France. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display.

  • Page 59: P16 - Sel Bon: Bonus Games Programming

    Technical Manual LÖWEN Dart HB8 6.1.14 P16 - SEL boN: Bonus Games Programming Programming bonus level and bonus amount. Factory setting: Bonus level 2 €, bonus amount 2 credits. This feature can be deactivated by the operator. NOTICE This feature is only available for HB9 dart games! 6.1.15...

  • Page 60: P18 - Sel Con: Console Select

    Press [OPTIONS II] button to confirm. TEMP SCORE Press [GAMES] or [OPTIONS I] button until desired language (Hb8 dEU - German, Hb8 FrA - French, Hb8 SPA - Spanish, Hb9) appears in player 5 – 6 display. Press [OPTIONS II] button to confirm.

  • Page 61: P19 - Sel Anl: Animation Programming

    Technical Manual LÖWEN Dart HB8 6.1.17 P19 - SEL ANL: Animation Programming Animation can be activated or deactivated. Factory setting: Animation activated. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [GAMES] or [OPTIONS I] button until Pr9 appears in the TEMP SCORE display.

  • Page 62: P20 - Sel Ant: Animation Time Programming

    Technical Manual LÖWEN Dart HB8 6.1.18 P20 - SEL ANt: Animation Time Programming Adjusting the time interval between animations. Factory setting: 20 minutes. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [GAMES] or [OPTIONS I] button until Pr9 appears in the TEMP SCORE display.

  • Page 63: P21 - Sel Bri: Display Brightness Programming

    Technical Manual LÖWEN Dart HB8 6.1.19 P21 - SEL brI: Display Brightness Programming Adjusting upper display (player display) brightness. Factory setting: 15. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [GAMES] or [OPTIONS I] button until Pr9 appears in the TEMP SCORE display.

  • Page 64: Entering Statistics Mode

    Technical Manual LÖWEN Dart HB8 Entering Statistics Mode Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [GAMES] or [OPTIONS I] button until StA [TEST] appears in the TEMP SCORE display. BUTTON Press [OPTIONS II] button to confirm.

  • Page 65: S01 - Sel Cn: View Coin Statistics

    Technical Manual LÖWEN Dart HB8 6.2.1 S01 - SEL CN: View Coin Statistics Displaying coins/ banknotes registered in the individual channels, and total value of all registered coins/ banknotes. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display.

  • Page 66: S02 - Sel 9A: View Game Statistics

    Technical Manual LÖWEN Dart HB8 NOTICE This feature is not available for country setting Spain. If you wish to exit [without deleting all channel counter readings], press [PLAYER CHANGE] button. 6.2.2 S02 - SEL 9A: View Game Statistics Displaying game statistics for the individual games/ options.

  • Page 67: S03 - Sel Tp: View Credit Statistics

    Technical Manual LÖWEN Dart HB8 6.2.3 S03 - SEL tP: View Credit Statistics Displaying credits and bonus credits. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [GAMES] or [OPTIONS I] button until StA appears in the TEMP SCORE display.

  • Page 68: Statistics Printout

    Technical Manual LÖWEN Dart HB8 If you want to delete the credit counter readings, press [TEST] button on the controller board. Player 1 – 2 display will then show SEL tP. This feature is not available for country setting Spain.
  • Page 69 Technical Manual LÖWEN Dart HB8 NOTICE The printout is determined by machine, used periphery as well as the readout device’s settings. Following is an exemplary printout which does not necessarily correspond to the actual printout. 2011.10.13 13:34 V01.95 Auslessp: DrSpeicher >* LOEWEN DART *<...

  • Page 70: Test Options

    Technical Manual LÖWEN Dart HB8 Test Options Self-Checking Tests After power-up, the machine’s software will automatically run the following self-checking tests. Battery Test Checking the battery voltage. In case of defective or low battery, the machine will generate a signal tone after power-up, and bAt LOW will appear in the Cricket display.

  • Page 71: Diagnostic Routines/ Test Programs

    Technical Manual LÖWEN Dart HB8 7.2. Diagnostic Routines/ Test Programs Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [OPTIONS II] button to confirm. [TEST] Button Press [GAMES] or [OPTIONS I] button until the requested program appears in the TEMP SCORE display.

  • Page 72: T01 - Sel But: Push-Button Switch Test

    Technical Manual LÖWEN Dart HB8 7.2.1 t01 - SEL bUt: Push-Button Switch Test Testing all front push-button switches. Press [TEST] button on the controller board. tSt appears in the TEM SCORE display. Press [OPTIONS II] button to confirm. SEL bUt appears in player 1 – 2 display and t01 in the TEMP SCORE display.

  • Page 73: T03 - Sel Sou: Audio Test

    Technical Manual LÖWEN Dart HB8 7.2.3 t03 - SEL SOU: Audio Test This test will generate a continuous tone to check and adjust volume. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [OPTIONS II] button to confirm.

  • Page 74: T05 - Sel Lp: Lamp Test

    Technical Manual LÖWEN Dart HB8 7.2.5 t05 - SEL LP: Lamp Test “DON’T THROW” lamp, “THROW” lamp, as well as [PLAYER CHANGE] button will be individually switched on and off again in this same order. Afterwards, the target illumination will be switched off and on again.

  • Page 75: T07 - Sel Brn: Burn-In Test

    Technical Manual LÖWEN Dart HB8 7.2.7 t07 - SEL brN: Burn-in Test This test is run to test all LEDs, lamps, and their associated circuity. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [OPTIONS II] button to confirm.

  • Page 76: T09 - Sel Drt: Dart Sensor (Piezo Sensor) Test

    Technical Manual LÖWEN Dart HB8 7.2.9 t09 - SEL drt: Dart Sensor (Piezo Sensor) Test Testing the dart sensor (piezo sensor), and associated circuitry. Press [TEST] button on the controller board. tSt appears in the TEMP SCORE display. Press [OPTIONS II] button to confirm.

  • Page 77: T15 - Sel Pnt: Printout Machine Settings

    Technical Manual LÖWEN Dart HB8 7.2.14 t15 - SEL Pnt: Printout Machine Settings Printout of all machine settings (programmed features). Press [TEST] button on the controller board. tSt appears in TEMP SCORE display. Press [OPTIONS II] to confirm. Press [GAMES] or [OPTIONS I] until SEL Pnt appears in player 1 – 2 display, and t15 in TEMP SCORE display.
  • Page 78 Technical Manual LÖWEN Dart HB8 25 DBE 7* DBE RAPID FIRE TIME 5.0 SEC Given time for Rapid Fire STEPPER LEVEL Stepper activated yes/ no STEPPER VALUE 1 Stepper credit level TIMINGS: TIME BTW ANIM 20 Time between animations INACTIV RESET 30...

  • Page 79: Retrofit Kits/ Accessories/ Spare Parts List

    Technical Manual LÖWEN Dart HB8 Retrofit Kits/ Asseccories/ Spare Part List Please contact the Export Department via info@loewen.de for the current spare part list. The machine is equipped with a readout interface for accounting data as well as machine-specific settings.
