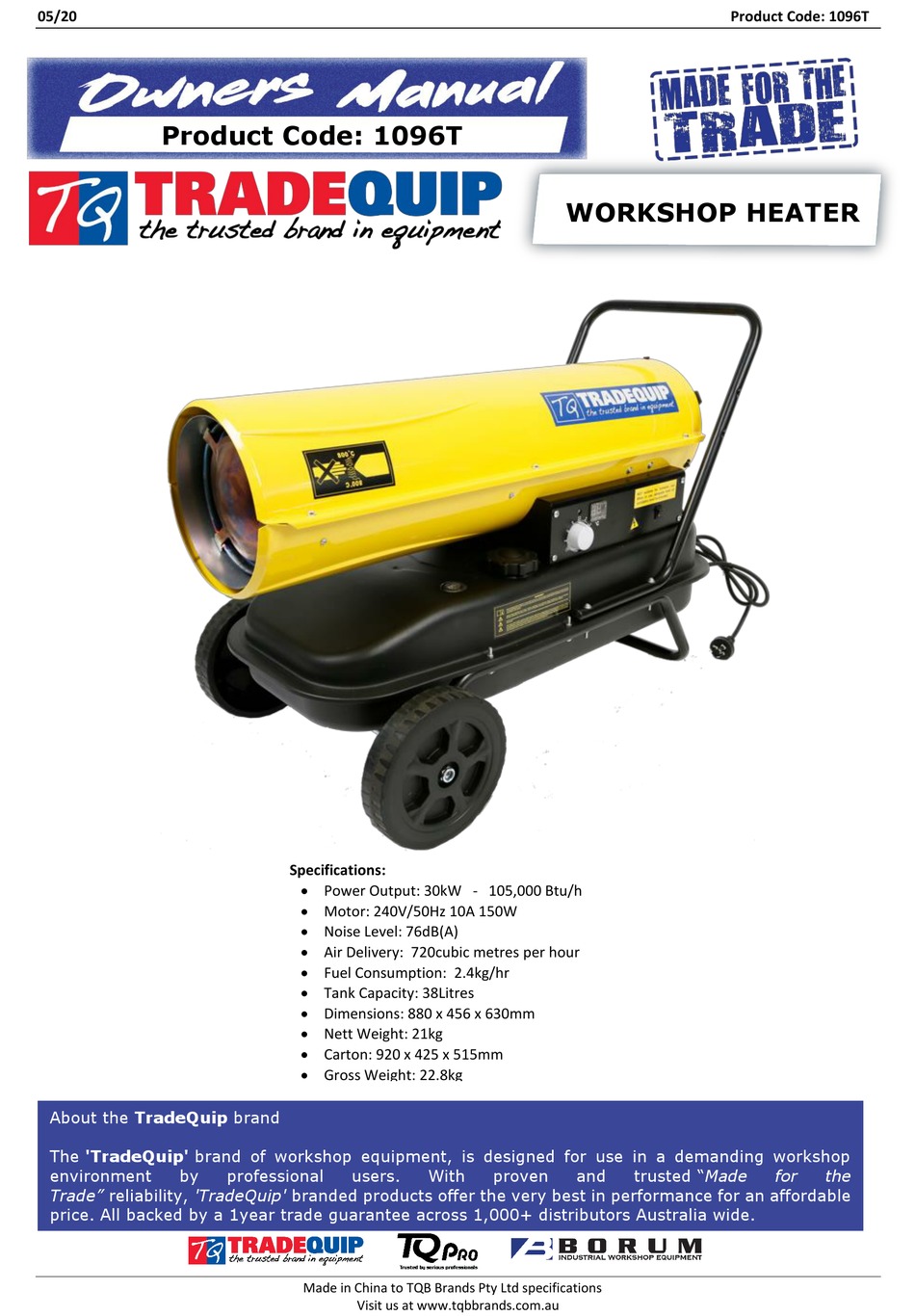

TradeQuip 1096T Owner's Manual

Workshop heater
Hide thumbs

Advertisement

Table of Contents

05/20
Product Code: 1096T
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment
by
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an affordable
price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
Specifications:
 Power Output: 30kW - 105,000 Btu/h
 Motor: 240V/50Hz 10A 150W
 Noise Level: 76dB(A)
 Air Delivery: 720cubic metres per hour
 Fuel Consumption: 2.4kg/hr
 Tank Capacity: 38Litres
 Dimensions: 880 x 456 x 630mm
 Nett Weight: 21kg
 Carton: 920 x 425 x 515mm
 Gross Weight: 22.8kg
professional
users.
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
WORKSHOP HEATER
With
proven
and
Product Code: 1096T
trusted "Made
for
the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1096T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TradeQuip 1096T

Summary of Contents for TradeQuip 1096T

  • Page 1  Dimensions: 880 x 456 x 630mm  Nett Weight: 21kg  Carton: 920 x 425 x 515mm  Gross Weight: 22.8kg About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users. With proven trusted “Made...

  • Page 2: Table Of Contents

    05/20 Product Code: 1096T WARNING IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works.

  • Page 3: Standard Operating Procedure

    DO NOT touch the front outlet is very hot during operation due to high heat.  When servicing, use only TradeQuip identical replacement parts. Use of any other parts will void the warranty. Ensure the Workshop Heater is disconnected from power before servicing.

  • Page 4: Assembly, Operation, Preventitive Maintenance

    ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES TradeQuip "Made for the Trade" Direct-Fired Forced Air Workshop Heaters are ideal for workshops, garages and warehouses, reducing concrete freeze and emergency heating. Ideal for quickly and efficiently heating cold condition workshops, this forced air heater can be used in a variety of commercial and industrial settings and is fueled by kerosene or diesel. It is a reliable heating solution for a cold work space and is easy to move and position as required thanks to the ergonomically designed inbuilt handle.
  • Page 5 05/20 Product Code: 1096T 3. BEFORE USE Prior to each use conduct a visual inspection by checking for abnormal conditions, such as cracked joins and damaged, loose, or missing parts. Position the Workshop Heater on a flat, level, non-flammable, solid surface.
  • Page 6 7. SERVICE & REPAIR Any TradeQuip Workshop Heaters found damaged in any way, or found to be worn or operated abnormally, should be removed from service until repaired by an authorised service agent. Owners and / or operators should be aware that repair of this product may require specialised equipment and knowledge.

  • Page 7: Troubleshooting

    05/20 Product Code: 1096T TROUBLESHOOTING PROBLEM CAUSE REMEDY Motor does not start No power or low voltage Check power cable and voltage Check fuse and replace if necessary Faulty or damaged power cord Check and replace if needed E1 displayed on the screen...

  • Page 8: Parts List & Parts Diagram

    05/20 Product Code: 1096T PARTS LIST & PARTS DIAGRAM Part Description Part Description Oil Drain Seal Burner Support Plate Oil Drain Screw Photocell Assy Bracket Fuel Tank Photocell Assembly Power Cord Thermostat Bracket Cable Fastener Reset Thermostat Ignition Transformer Burner Head...

  • Page 9: Warranty

    WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
