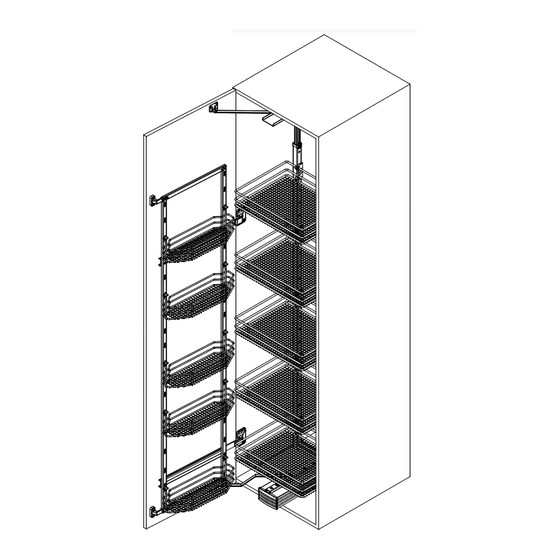

"DUSA" DUOPORT FRONT SLIDE
Cabinet dimensions
Widths
:
450 / 500 / 600 mm
Depth min :
500 mm
Basket dimensions (Opal, Saphir, Premea and Scalea)
Cabinet
basket
width
450
350
500
400
600
500
Front basket dimensions (Opal and Saphir)
basket
width
365
Installation dimensions
Heights:
DUSA 1
650 mm - 950 mm (2 baskets)
DUSA 2
950 mm - 1200 mm (3 baskets)
DUSA 3
1200 mm - 1450 mm (4 baskets)
DUSA 4
1450 mm - 1700 mm (4 baskets)
DUSA 5
1700 mm - 1950 mm (5 baskets)
DUSA 6
1900 mm - 2150 mm (5 baskets)
DUSA 7
2150 mm - 2350 mm (7 baskets)
Opal basket
Saphir basket
Premea basket
Scalea basket
basket
basket
depth
height
310
75
310
75
310
75
basket
basket
depth
height
110
60
Finish
Fitting
:
RAL 9006 silver,
clear varnish
Baskets
:
chrome
RAL 9006 silver,
clear varnish
Damping :
available as an option
Load
:
front
12 kg
Slide
70 kg
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Vauth-Sagel Dusa Series
- Page 1 "DUSA” DUOPORT FRONT SLIDE Cabinet dimensions Finish Widths 450 / 500 / 600 mm Fitting RAL 9006 silver, Depth min : 500 mm clear varnish Basket dimensions (Opal, Saphir, Premea and Scalea) Baskets chrome Cabinet basket basket basket RAL 9006 silver, width depth height...
- Page 2 Fit bottom guide unit Fit sliding frame Screw the bottom guide unit, 173 mm from the Pull the bottom guide out of the cabinet front edge of the cabinet, as per the drawing, to to the stop and fit the sliding frame with Bottom shelf the middle of the bottom shelf the holes over the adjusting screws...
- Page 3 Align sliding frame Ball bearing guide Sliding frame With the aid of the two adjusting screws (bottom) the frame can be aligned vertically: front adjusting screw anticlockwise - frame is Cover plate raised at the front and tilts to the rear, rear screw anticlockwise - frame is raised at the rear and Sliding section...
- Page 4 450 mm 350 mm 500 mm 400 mm 600 mm 500 mm Vauth-Sagel SYSTEMTECHNIK Please note: GmbH & Co.KG The cabinet must be securely fastened to the wall to prevent it from tilting. Neue Straße 27 D-33034 Brakel-Erkeln Appropriate fixing material is not supplied with the cabinet.
