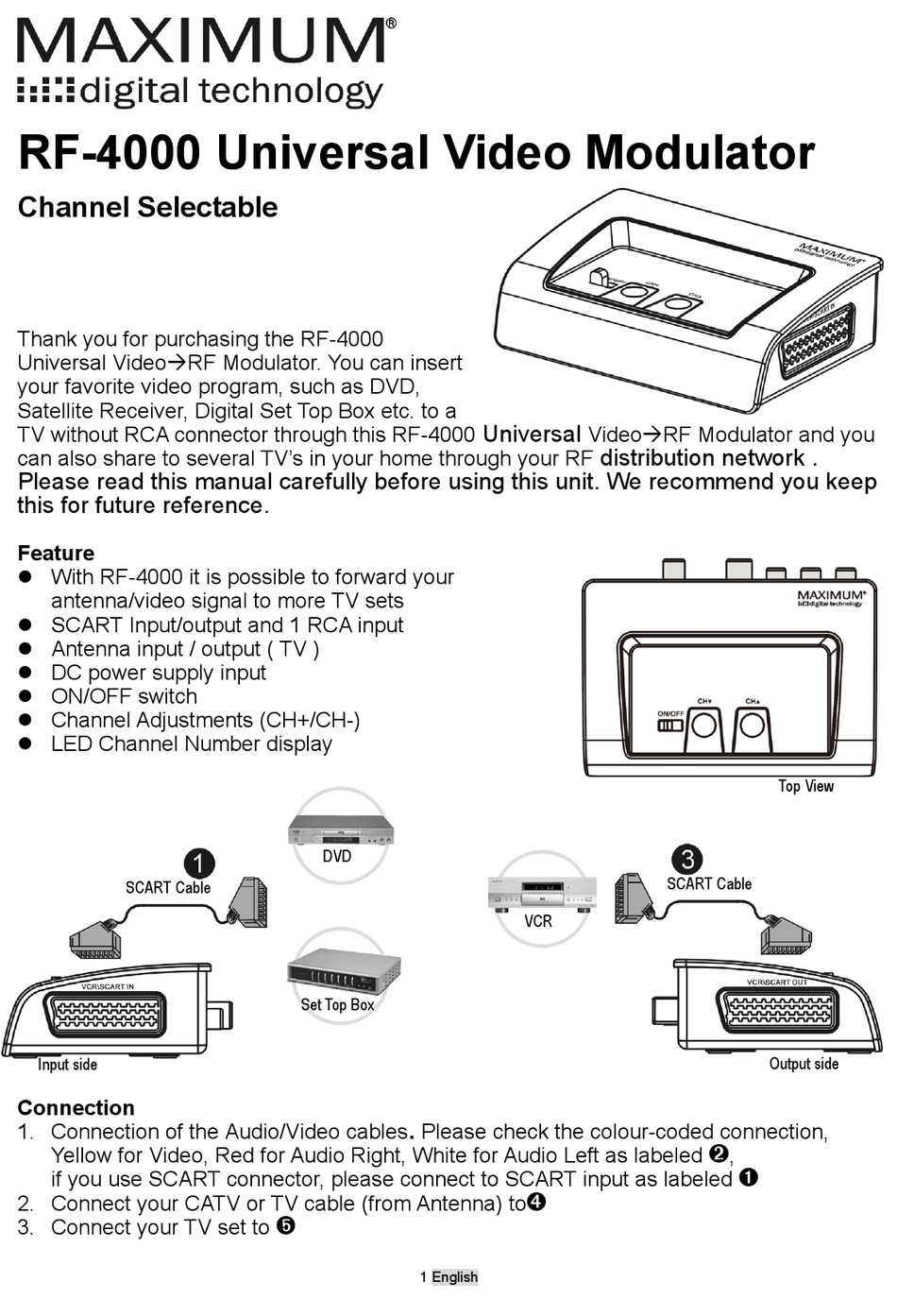

Maximum RF-4000 Manual

RF-4000 Universal Video Modulator
Channel Selectable
Thank you for purchasing the RF-4000
Universal Video RF Modulator. You can insert
your favorite video program, such as DVD,
Satellite Receiver, Digital Set Top Box etc. to a
TV without RCA connector through this RF-4000
can also share to several TV's in your home through your RF
Please read this manual carefully before using this unit. We recommend you keep
this for future reference.
Feature
With RF-4000 it is possible to forward your
antenna/video signal to more TV sets
SCART Input/output and 1 RCA input
Antenna input / output ( TV )
DC power supply input
ON/OFF switch
Channel Adjustments (CH+/CH-)
LED Channel Number display
SCART Cable
Input side
Connection
1. Connection of the Audio/Video cables
Yellow for Video, Red for Audio Right, White for Audio Left as labeled
if you use SCART connector, please connect to SCART input as labeled
2. Connect your CATV or TV cable (from Antenna) to
3. Connect your TV set to
DVD
Set Top Box
.
Please check the colour-coded connection,
ð
1 English
Universal
Video RF Modulator and you
distribution network .
VCR
ï
Top View
SCART Cable
Output side
í
,
ì
