FUNCTION

The X10 to UPB Bridge (model
PW513) is a plug-in home
automation interface that is
capable of receiving X-10
messages from a standard (PL-
513) 4-wire cable and
transmitting their corresponding
Universal Powerline Bus (UPB)
messages onto the power wiring
to remotely turn on, off, and dim
other UPB devices. The PW513
can be freely located anywhere a wall outlet exists throughout
the home. No additional wiring is required and no radio
frequency signals are used for communication.

FEATURES:

• Simple plug-in installation.
• Adds UPB ultra reliability to any X-10 compatible
controller.
•
Converts A-1 thru P-15 to UPB Links 1-255.
•
Flexible configuration of command mapping.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical products, basic safety precautions
should always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If the product comes in contact
with water or other liquid, turn off the circuit breaker and
unplug the product immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors. Do not use this product
for other than its intended purpose.
5. Do not cover this product with any material when in use.
6. This product uses grounded plugs and sockets to reduce
the risk of electric shock. These plugs and sockets fit only
one way. If they do not fit, consult an electrician.
7. SAVE THESE INSTRUCTIONS.

INSTALLATION

The PW513 is designed for indoor use with devices that plug
into a grounded power outlet. To install the PW513 module:
1. Locate any free wall outlet near your X-10 controller.

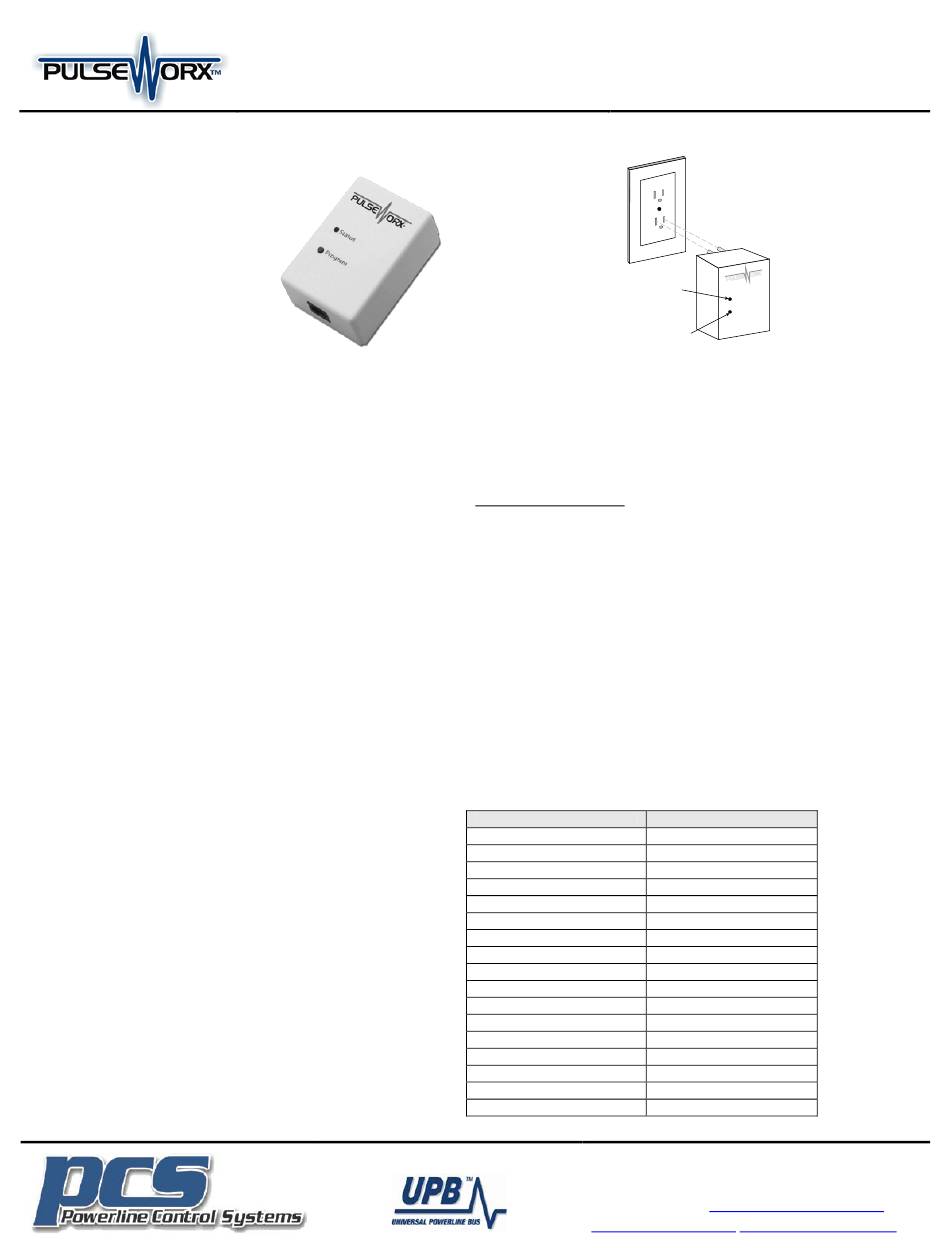

2. Plug the PW513 into the wall outlet (see illustration).
3. Optionally, the device can be secured to the wall outlet
by screwing the wall plate center screw through the
device's mounting tab.
4. Use a pass through telephone type cable to connect the
PW513 to your X-10 controller or alarm panel.
Model PW513
X-10 to UPB Bridge
The Inventors Of:
Installation Guide and
Status
Program
Button

OPERATION

Once installed and configured your PW513 will operate on the
stored configuration settings without further user intervention.
All programmed data is protected by nonvolatile memory and can
only be changed or deleted by reprogramming, regardless of
power outage durations.

Device Code Mapping

In the X-10 world devices are selected to be operated upon using
the Device Code Message. The Device Code Message contains two
fields: the X-10 House Code (A – P), and the X-10 Unit Code (1 –
16) that are intended to identify a device (or set of devices) to act
upon the upcoming Function Code message. In the UPB world
devices are selected to be operated upon using the Link ID. Link
IDs can range from 0 to 255 and they are intended to identify a
device (or set of devices) to act upon the upcoming Message Data.
Note: All PulseWorx™ dimmers come from the factory assigned
with Link IDs 1 – 6 & 8. All PulseWorx™ switches come from the
factory assigned with Link IDs 1 and 2.
The PW513 uses the received X-10 Device Code Message to map
to a UPB Link ID as shown in Table 1 below.
X-10 Device Codes
A1 – A16
B1 – B16
C1 – C16
D1 – D16
E1 – E16
F1 – F16
G1 – G16
H1 – H16
I1 – I16
J1 – J16
K1 – K16
L1 – L16
M1 – M16
N1 – N16
O1 – O16
P1 – P15
P16
