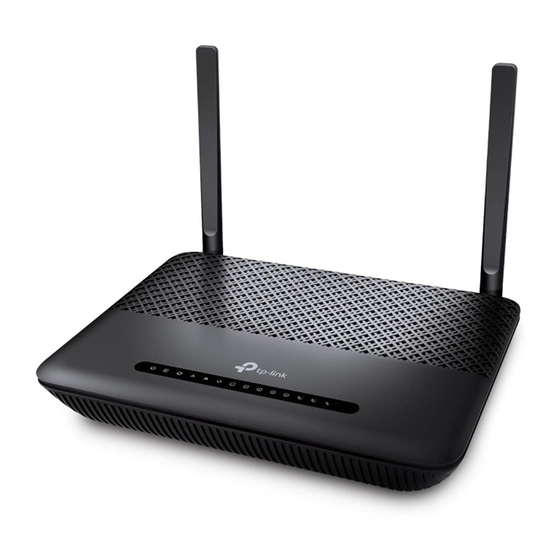

TP-Link AC 1200 Archer VR500v

Installation Guide

AC1200 Wireless Dual Band Gigabit VoIP VDSL/ADSL Modem Router

1. Connect your computer to the router via a wired or wireless connection.

Launch a web browser and type in

192.168.1.1.

Create a password (1-15 characters) and get started.

Follow the step-by-step instructions to set up an internet connection

Go to page 2

FTTN/FTTB

http://tplinkmodem.net

Need help?

Do you have a question about the Archer AC 1200 and is the answer not in the manual?

Page 1 TP-Link AC 1200 Archer VR500v FTTN/FTTB Installation Guide AC1200 Wireless Dual Band Gigabit VoIP VDSL/ADSL Modem Router 1. Connect your computer to the router via a wired or wireless connection. Launch a web browser and type in http://tplinkmodem.net 192.168.1.1. Create a password (1-15 characters) and get started.
Page 2 Step 1 Step 1 Select your Region and Time Zone. Tap on Advanced. Continue to Step 2.
Page 3 Step 2 Step 2 Tap on Network > Tap on DSL Internet. Tap on Delete All. (This is to ensure there are no conflicting connections) Continue to Step 3.
Page 4 Step 3 Step 3 Tap on Network > Tap on ETH Internet. Tap on Delete All. (This is to ensure there are no conflicting connections) Continue to Step 4.
Page 5 Step 4 Step 4 Tap on DSL Internet > Tap on Add Continue to Step 5.
Page 6 Step 5 Step 5 DSL Modulation Type = VSDL Internet Connection Type = PPPoE Username = username@wba.fibremax.com.au (Username provided by FibreMax®) Password = Password (Password provided by FibreMax®) Connection Mode = Auto IPv4 = Enable Continue to Step 6. Connection Mode...
Page 7 Step 6 www.fibremax.com.au Step 6 Tap on OK. The Modem should be configured and connect to the internet. It’s recommended to reboot the Modem. Finished NSW (02) 91 999 659 VIC (03) 85 939 659 QLD (07) 30 637 659 WA (08) 63 77 659 SA (08) 74 444 259...
